73

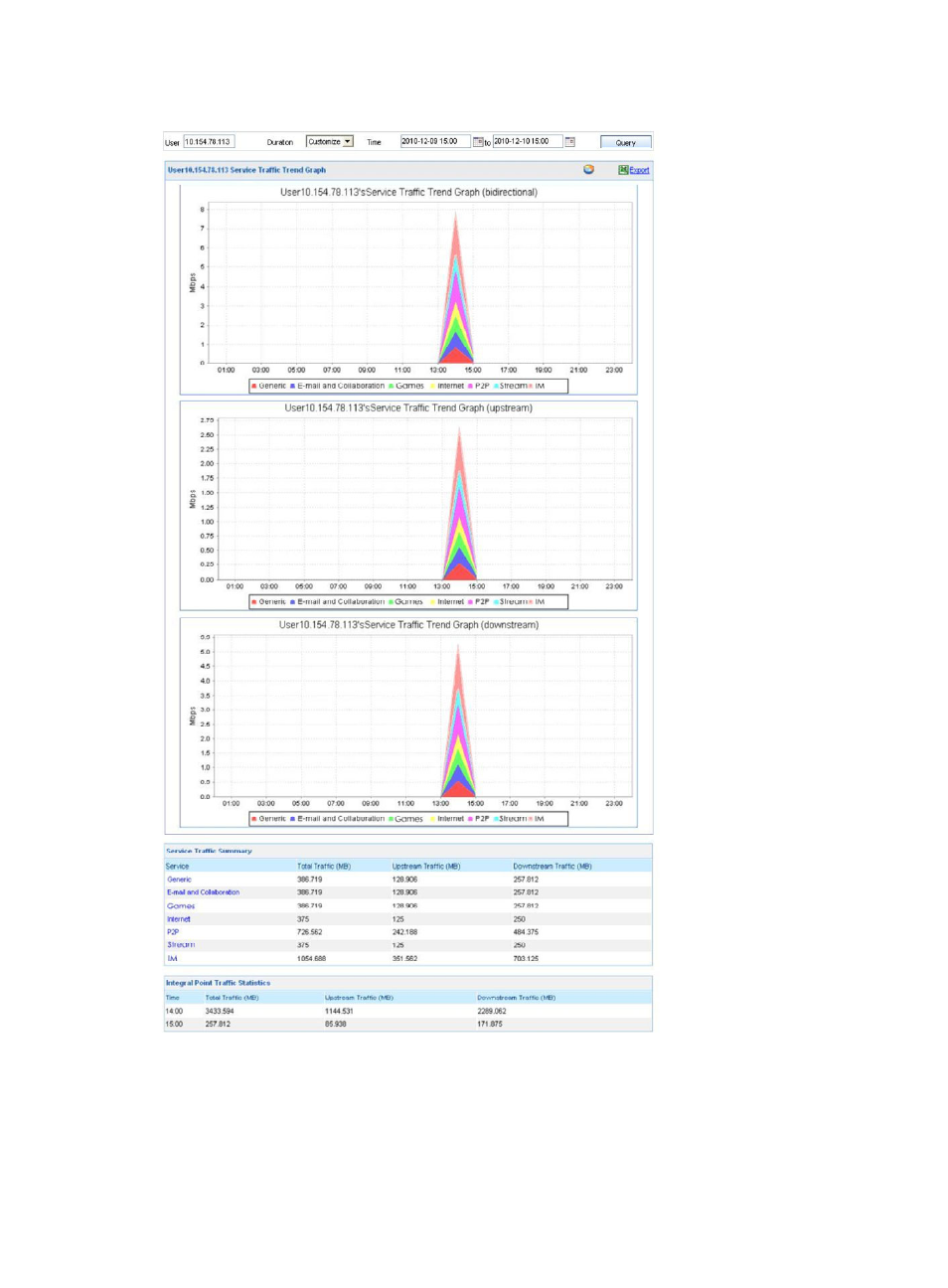

Figure 66 Level-1 service traffic statistics of a single user
Level-2 service traffic statistics of a single user
Similarly, the report page of level-2 service traffic statistics for a single user is divided into three areas:
•
The upper area displays the traffic trend graphs for the upstream, downstream, and streams of both
directions of a service type.
