9469300990 Rev B
101

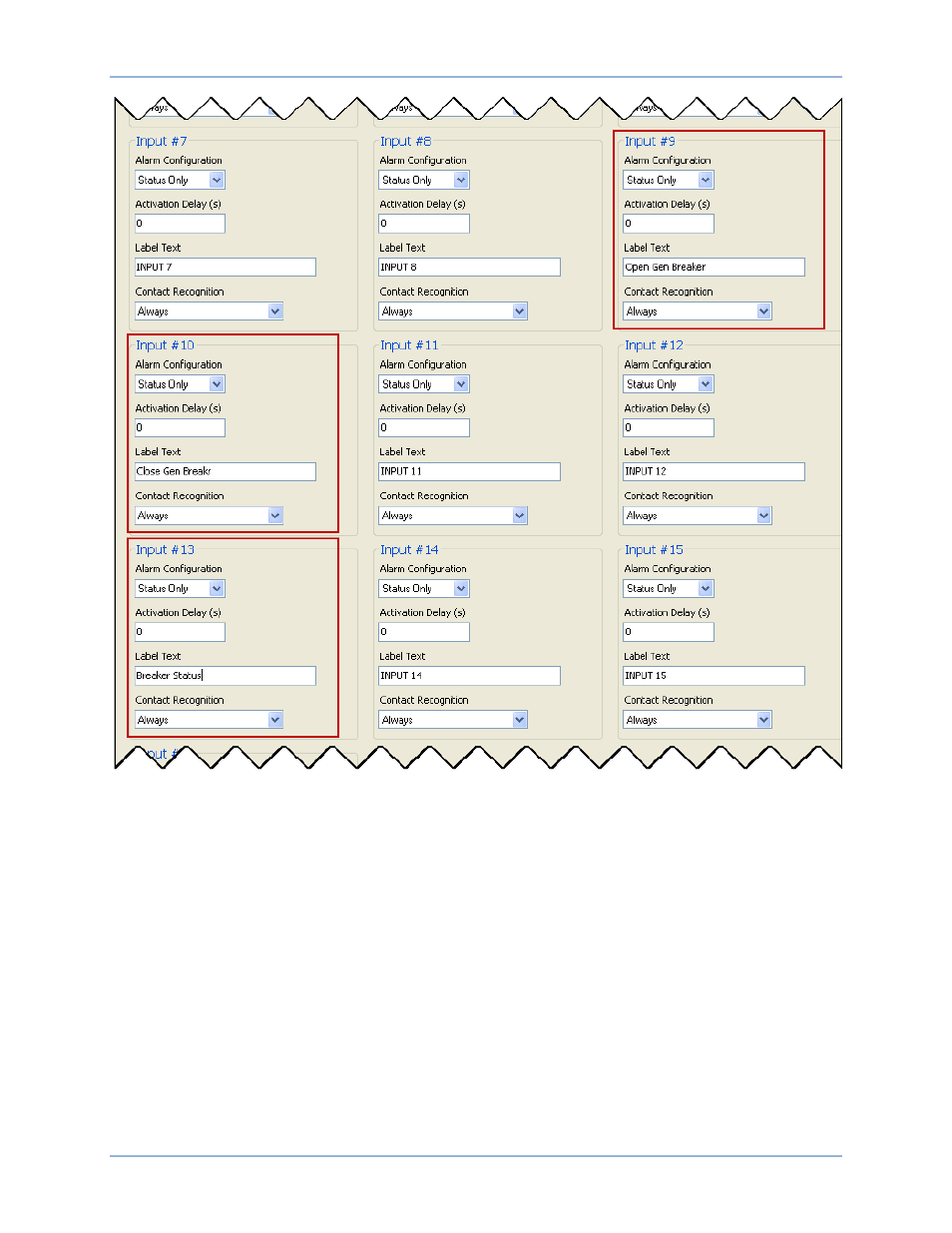

Figure 48. Settings Explorer, Programmable Inputs, Contact Inputs
4.
Open the Contact Outputs screen in the Settings Explorer, under Programmable Outputs. Select and
label the appropriate outputs for Breaker Close and Breaker Open. If using contact outputs on the
DGC-2020HD for Governor and Voltage Regulator control, the contact output can be labeled here as
well. See Figure 49.
DGC-2020HD
Synchronizer
