58 9469300990 Rev B
Coolant Temperature
BESTCOMSPlus ® Navigation Path: Settings Explorer, Programmable Senders, Coolant Temperature
Front Panel Navigation Path: Not available through the front panel
Figure 22 illustrates the Coolant Temperature screen found in BESTCOMSPlus ® . Settings are listed in
Table 28. To program the coolant temperature sender, perform the following procedure:
1. Click on Load Cool. Settings File and select the appropriate sender file from the list.
2. If no sender file matches the sender being used, the individual points that correlate resistance to
coolant temperature level may be modified. This can be achieved by setting numeric values in the
table or dragging the points of the graph to the desired characteristic. Information on sender
characteristics should be obtained from the sender manufacturer.
3. Select Positive or Negative sender slope as required for the desired sender graph.
4. Click Save Cool Data to save the data in the current settings file.
5. If you want to save newly entered sender data as a sender library file, click Create Cool Settings File
and enter a file name and location to save the file.
6. Click the Send Settings button in BESTCOMSPlus
® to send the sender settings to the DGC-2020HD.

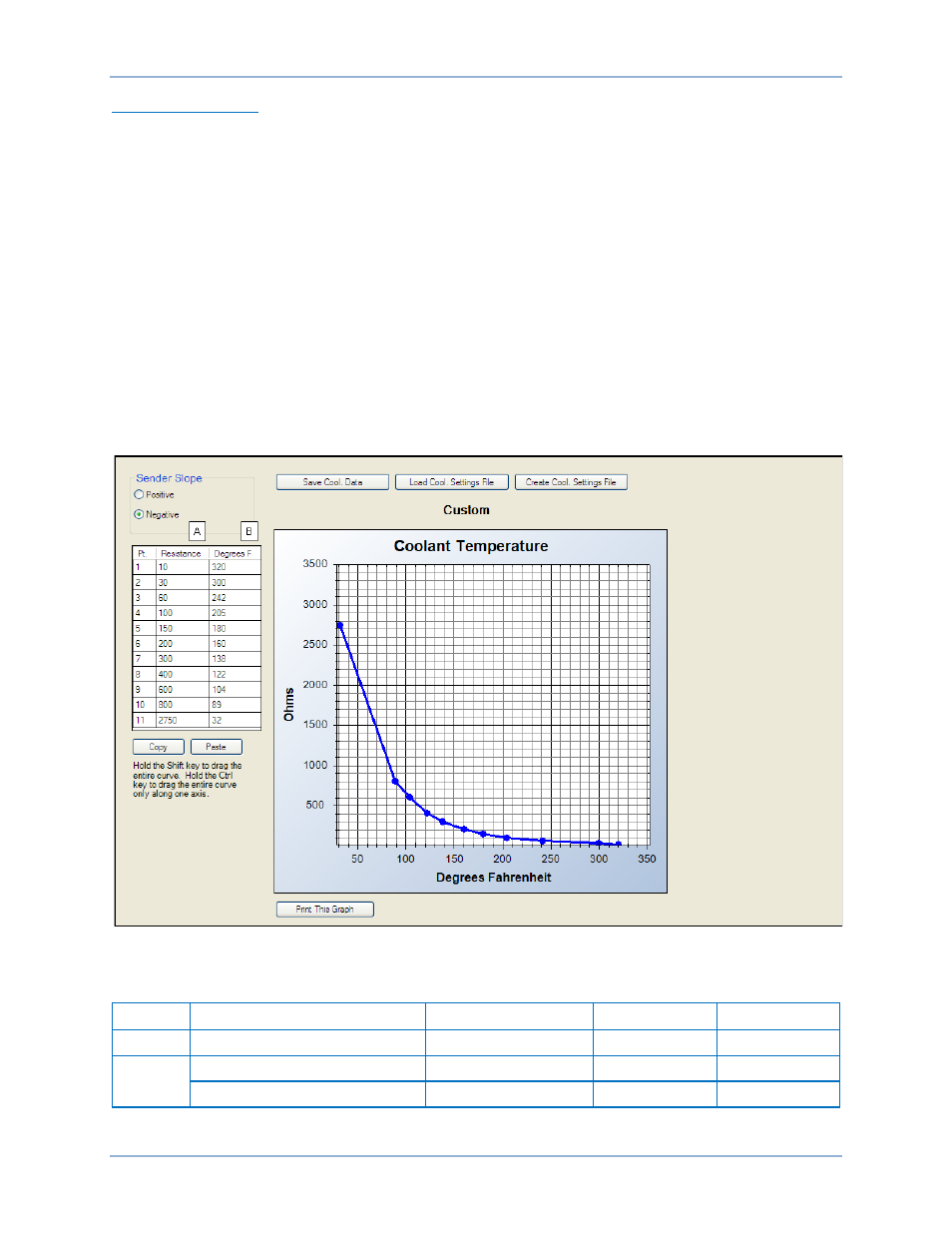

Figure 22. Settings Explorer, Programmable Senders, Coolant Temperature Screen
Table 28. Settings for Coolant Temperature Screen
Locator Setting Range Increment Unit
A Resistance 10 to 2,750 1 Ohms
B
Degrees F 32 to 400 1 degrees F
Degrees C 0 to 204 1 degrees C
Engine Sender Inputs DGC-2020HD
