Fuel Level
BESTCOMSPlus ® Navigation Path: Settings Explorer, Programmable Senders, Percent Fuel Level
Front Panel Navigation Path: Not available through the front panel
Figure 20 illustrates the Fuel Level screen found in BESTCOMSPlus. Settings are listed in Table 26. To
program the fuel level sender, perform the following procedure:
1. Click on Load Fuel Settings File and select the appropriate sender file from the list.
2. If no sender file matches the sender being used, the individual points that correlate resistance to fuel
level may be modified. This can be achieved by setting numeric values in the table or dragging the
points of the graph to the desired characteristic. Information on sender characteristics should be
obtained from the sender manufacturer.
3. Select Positive or Negative sender slope as required for the desired sender graph.
4. Click Save Fuel Data to save the data in the current settings file.
5. If you want to save newly entered sender data as a sender library file, click Create Fuel Settings File
and enter a file name and location to save the file.
6. Click the Send Settings button in BESTCOMSPlus to send the sender settings to the DGC-2020HD.

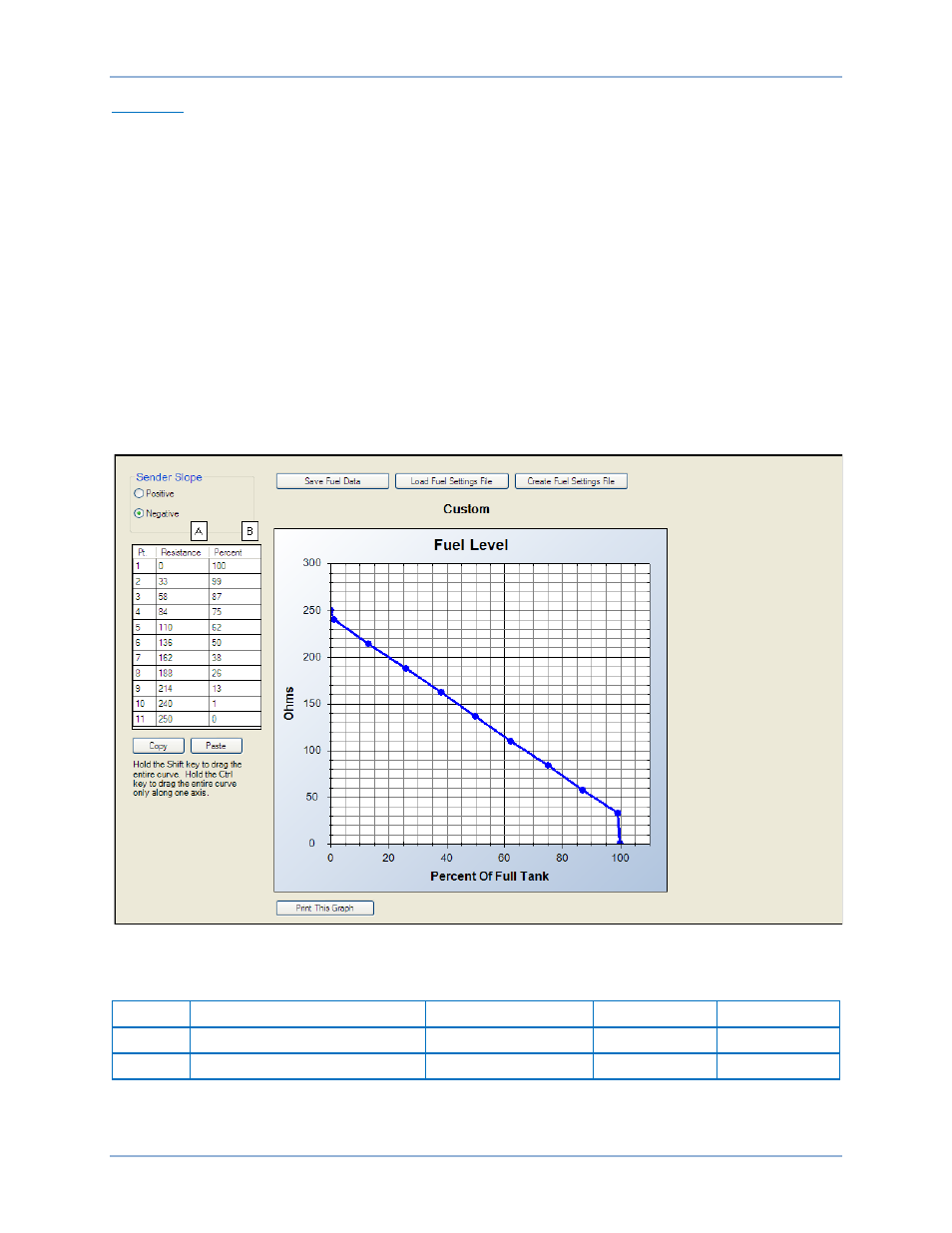

Figure 20. Settings Explorer, Programmable Senders, Fuel Level Screen
Table 26. Settings for Fuel Level Screen
Locator Setting Range Increment Unit
A Resistance 0 to 250 1 Ohms
B Percent 0 to 150 1 %
