Event Log - View
View the BESTCOMSPlus event log
Event Log - Clear
Clear the BESTCOMSPlus event log
Event Log - Set New File Name
Set a new file name for event log
Window
Cascade All
Cascade all windows
Tile
Tile horizontally or vertically
Maximize All
Maximize all windows
Help
Check for Updates
Check for BESTCOMSPlus updates via the internet
Check for Update Settings
Enable or change automatic checking for updates
About
View general, detailed build, and system information
Lower Menu Bar (DGC-2020HD Plugin)
The lower menu bar functions are listed and described in Table 55.

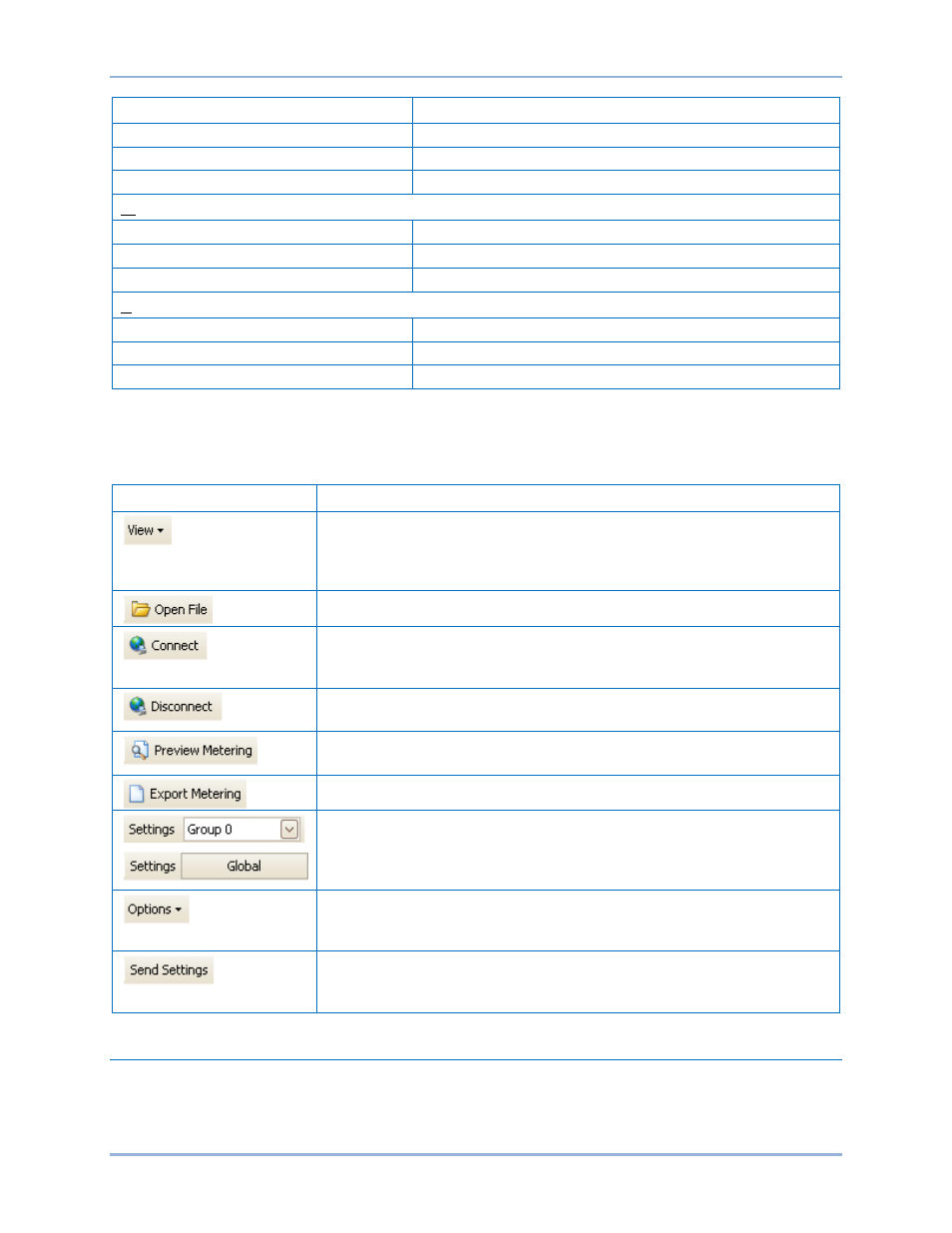

Table 55. Lower Menu Bar (DGC-2020HD Plugin)
Menu Button
Description
Enables you to show/hide the Metering Panel, Settings Panel, or Settings
Info Panel.
Opens and saves BESTspace™ workspaces. Customized workspaces
make switching between tasks easier and more efficient.
Opens a saved settings file.
Connect: Opens the DGC-2020HD Connection screen which enables
you to connect to the DGC-2020HD via USB, modem, or Ethernet. This
button only appears when a DGC-2020HD is not connected.
Disconnect: Used to disconnect a connected DGC-2020HD. This button
only appears when a DGC-2020HD is connected.
Displays the Print Preview screen where a preview of the Metering
printout is shown. Click on the printer button to send to a printer.
Enables all metering values to be exported into a *.csv file.
A pull-down menu allowing group selection is available when making
protection settings. The settings can be applied to Group 0, 1, 2, or 3. If a
global setting is being changed, Global will appear in place of the drop-
down menu.
Displays a drop-down list entitled Live Mode Settings which enables Live
mode where settings are automatically sent to the device in real time as
they are changed.
Sends settings to the DGC-2020HD when BESTCOMSPlus is not
operating in Live Mode. Click this button after making a setting change to
send the modified setting to the DGC-2020HD.
Settings Explorer
The Settings Explorer is a convenient tool within BESTCOMSPlus used to navigate through the various
settings screens of the DGC-2020HD plugin.
