3.7.1.1 Protocol
specification and bus structure
The USS protocol has the following significant features:
¾
Supports
♦ a multi-point-capable link, e.g. EIA RS 485 hardware or
♦ a point-to-point link, e.g. EIA RS 232
¾
Master-slave access technique
¾
Single-master system
¾
Maximum 32 nodes (max. 31 slaves)
¾
Operation with variable or fixed telegram length
¾
Simple, reliable telegram frames
¾
The same bus mode of operation as with the PROFIBUS (DIN 19245 Part 1)
¾
Data interface to the basic unit according to PROFILE variable-speed drives.
This means that, when the USS is being used, information is transferred to the
drive in the same way as with the PROFIBUS-DP.
¾
Can be used for start-up, service and automation
¾
PC-based service tools (e.g. STARTER and DriveMonitor)
¾
Can be easily implemented in customized systems
Protocol specification
The USS protocol defines an access technique according to the master-slave
principle for communications via a serial bus. The point-to-point link is included as
a sub-quantity.
One master and a maximum of 31 slaves can be connected to the bus. The
individual slaves are selected by the master using an address character in the
telegram. A slave can never transmit without first being initiated by the master so
that direct information transfer between individual slaves is not possible. The

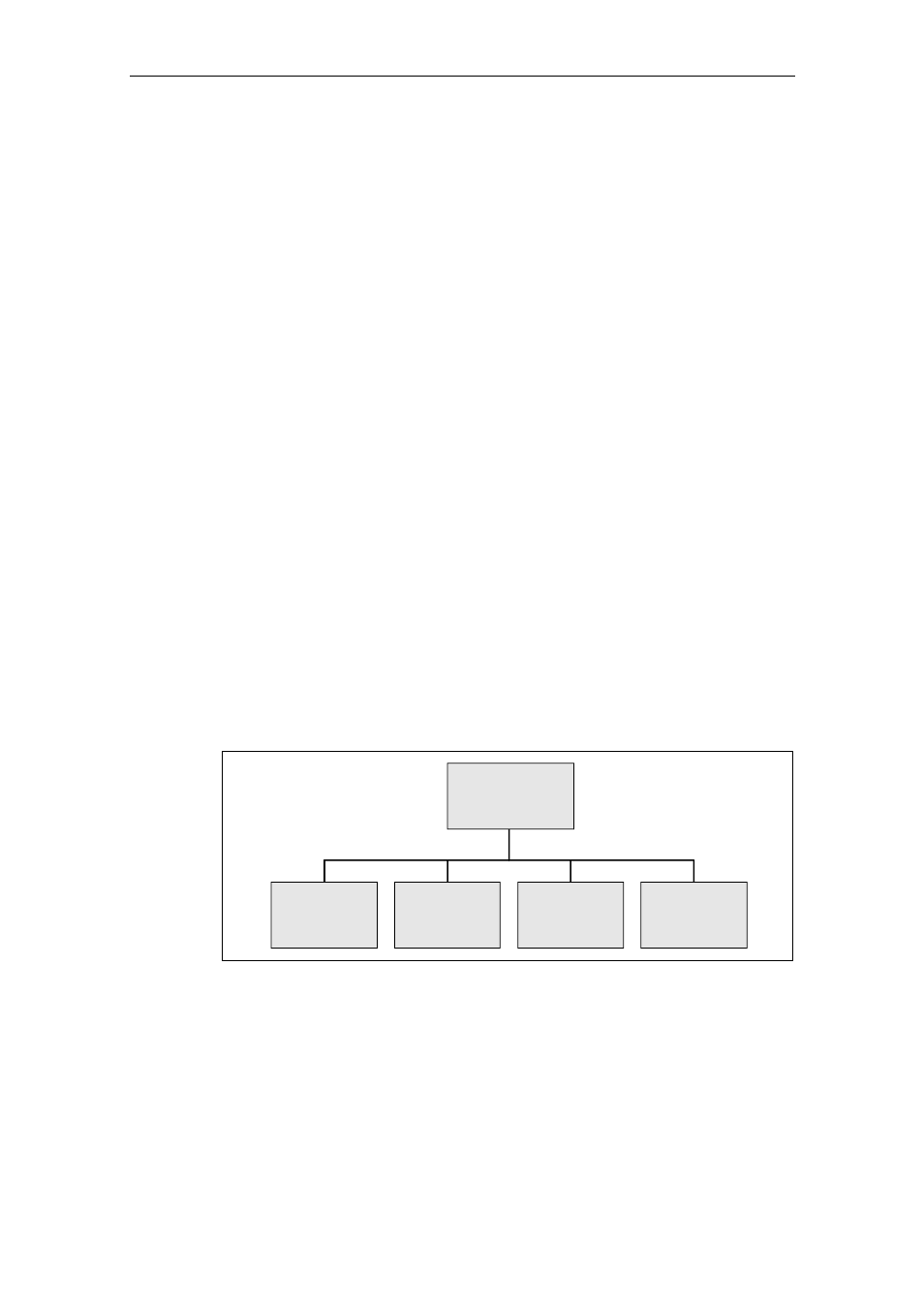

master function cannot be transferred (single-master system). The following
illustration shows a bus configuration using drive technology as an example.
MICROMASTER
Higher-level computer
"Master"
MICROMASTER
MICROMASTER
MICROMASTER
"Slave"
"Slave"
"Slave"
"Slave"
Fig. 3-38
Serial linking of MICROMASTER (slaves) with a higher-level computer
(master)
