Issue 10/06

3 Functions

MICROMASTER 440 Operating Instructions

6SE6400-5AW00-0BP0

181

3.12 Setpoint

channel

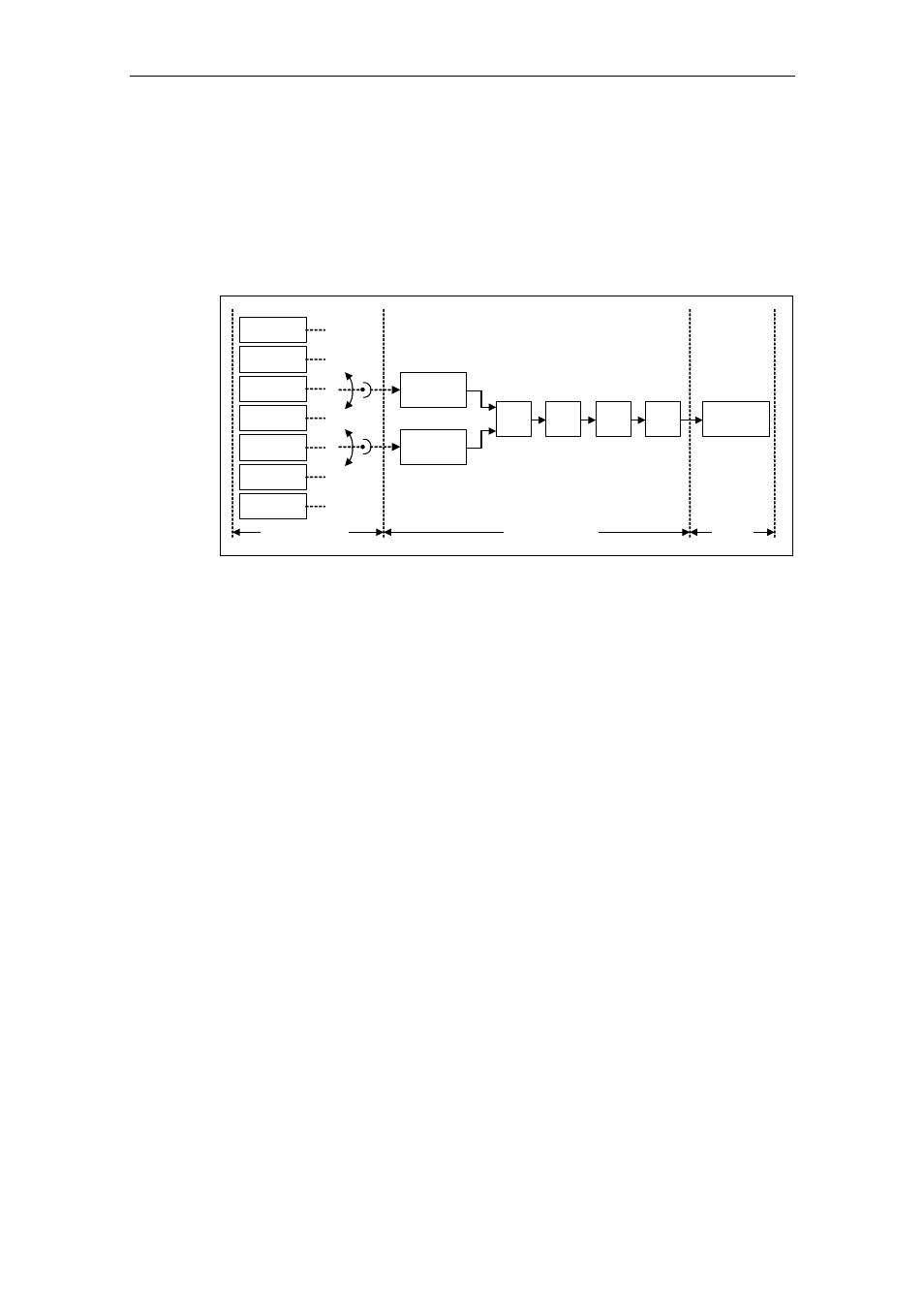

The setpoint channel (refer to Fig. 3-59) forms the coupling element between the
setpoint source and the closed-loop motor control. MICROMASTER has a special
characteristic which allows the setpoint to be entered simultaneously from two
setpoint sources. The generation and subsequent modification (influencing the
direction, suppression frequency, up/down ramp) of the complete setpoint is
carried-out in the setpoint channel.

MOP

ADC

FF

USS

BOP link

USS

COM link

CB

COM link

ADC2

Setpoint source

Main

setpoint

Additonal

setpoint

SUM

AFM

Limit

RFG

Setpoint channel

Motor

control

Motor

control

Fig. 3-59

Setpoint channel

3.12.1

Summation and modification of the frequency setpoint (AFM)

Parameter range:

P1070 – r1114

Warnings -
Fault -

Function chart number:

FP5000, FP5200

For applications where the control quantities are generated from central control
systems, fine tuning is often required locally on-site (correction quantity). For
MICROMASTER, this can be very elegantly realized using the summation point
where the main and supplementary (additional) setpoint are added in the setpoint
channel. In this case, both quantities are simultaneously read-in via two separate
or one setpoint source and summed in the setpoint channel. Depending on
external circumstances, the supplementary setpoint can be dynamically
disconnected or switched-in to the summation point (refer to Fig. 3-60). This
functionality can be used to advantage, especially for discontinuous processes.
