2.2 Mechanical Installation
34 YASKAWA ELECTRIC TOEP C710656 07C YASKAWA Power Regenerative Converter - D1000 Instruction Manual
◆ Digital Operator Remote Usage
■ Remote Operation
The digital operator mounted on the converter can be removed and connected to the converter using an extension cable up
to 3 m long to facilitate operation when the converter is installed in a location where it can not be easily accessed.
The digital operator can also be permanently mounted in remote locations such as panel doors using an extension cable
and an installation support set (depending on the installation type).
■ Digital Operator Dimensions

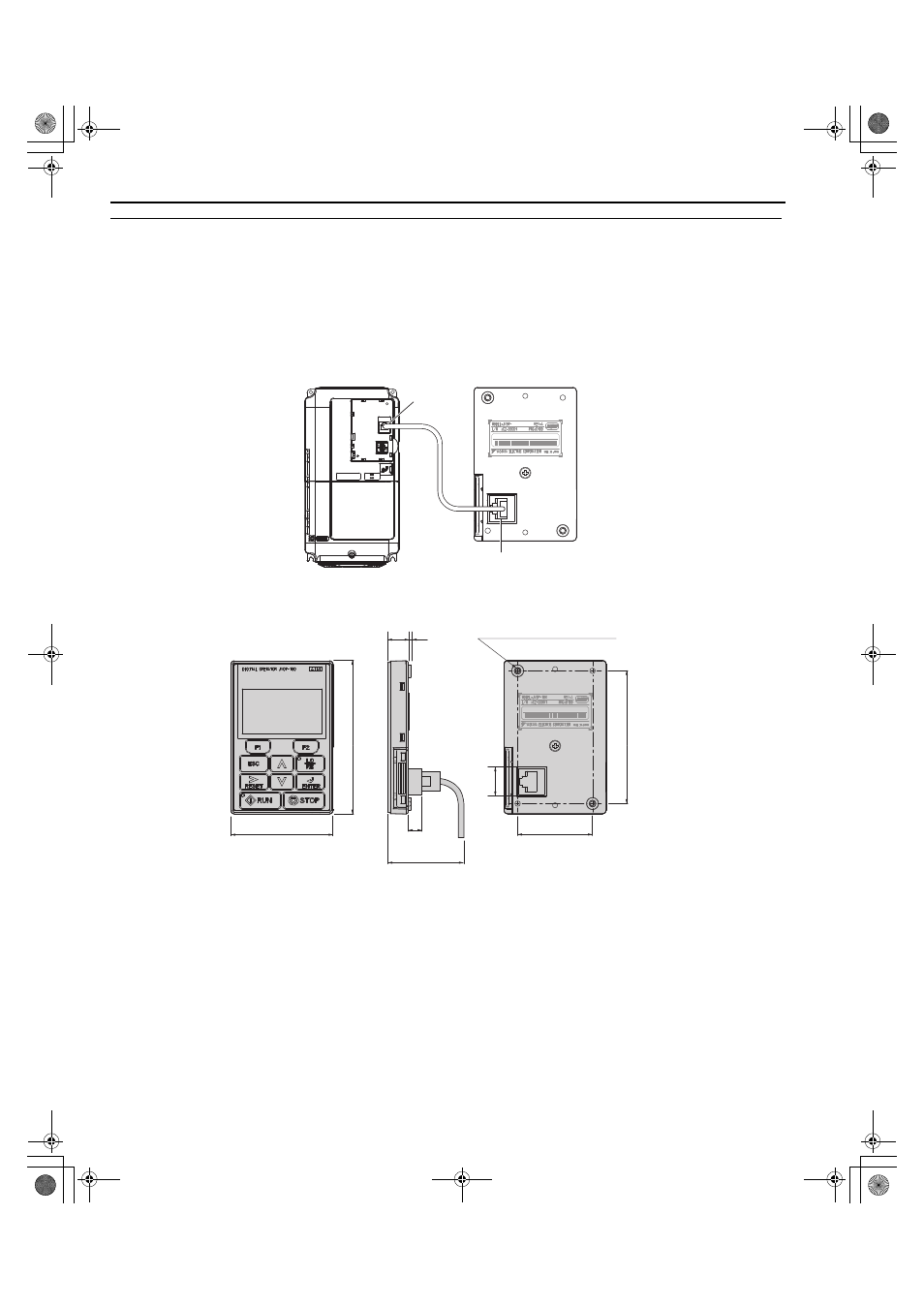

Figure 2.9 Digital Operator Dimensions
<1> If you install the digital operator in a control panel or other enclosure, use the optional connection cable.
S / N : J007XE273710001
Operator
Communication Cable Connector
Communication
Cable Connector
Converter
D1000
S / N : J007XE273710001
90 78
60
7.9
minimum
50 Unit: mm
12.2 1.6 Installation holes (2-M3 screws, depth 5)
44
<1>
15
YAI
