1.5 Examples of Servo System Configurations
1-15
1
Outline
1.5 Examples of Servo System Configurations
This section describes examples of basic servo system configuration.

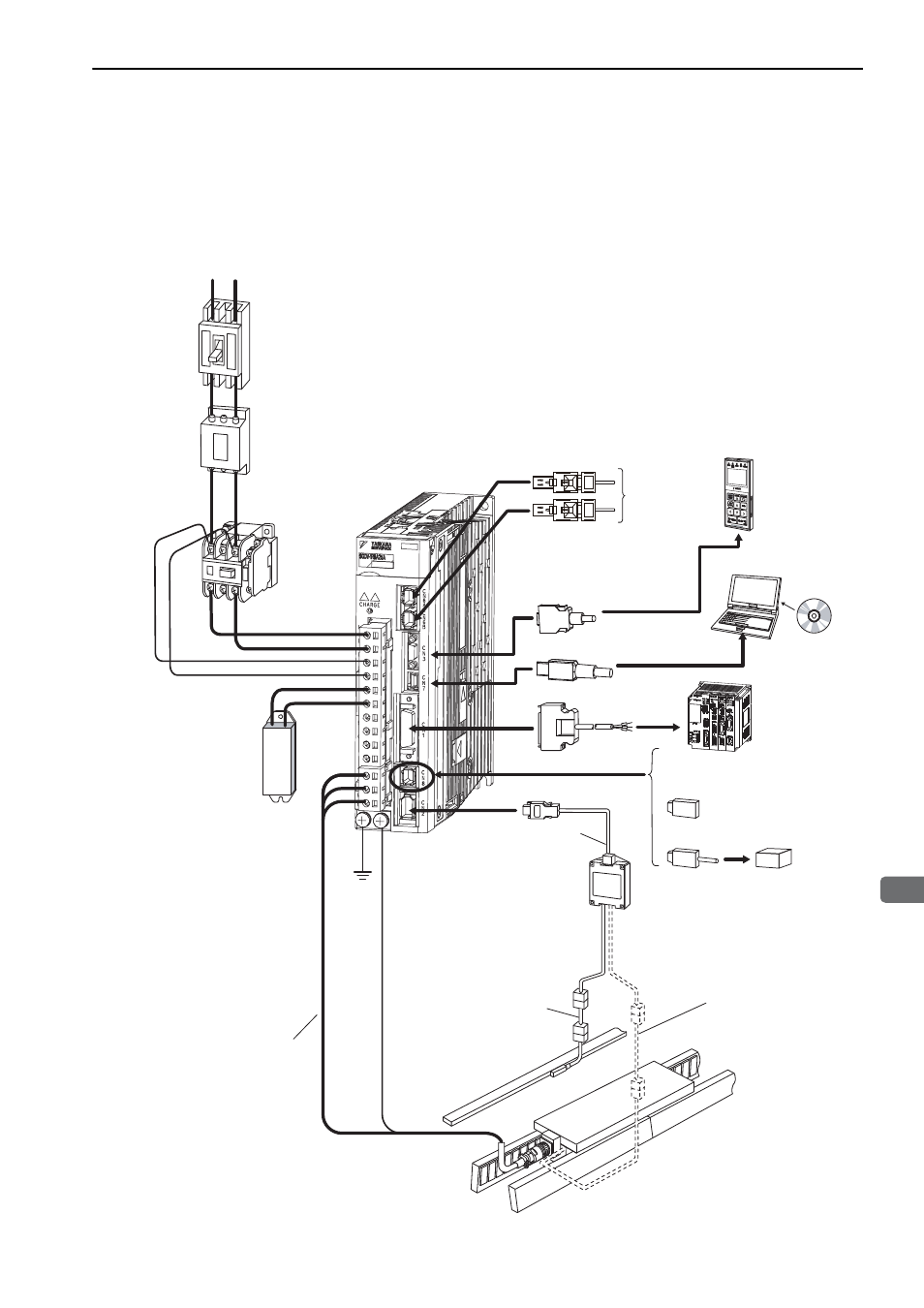

1.5.1 Connecting to SGDV- F25A SERVOPACK
∗ Before connecting an external regenerative resistor to the SERVOPACK, refer to 3.7 Connecting Regenerative Resis-
tors.
100V
Noise filter
Molded-case
circuit breaker
(MCCB)
Magnetic
contactor
Host controller
I/O signal cable
SGDV- F25A
SERVOPACK
Power supply
Single-phase 100 VAC
R T
Protects the power
line by shutting the
circuit OFF when
overcurrent is
detected.
Eliminates external
noise from the
power line.
Turns the servo
ON and OFF.
Install a surge
absorber. Personal
computer
Connection cable
for personal computer
Digital
operator
When not using the safety function,
use the SERVOPACK with the safety
function’s jumper connector (JZSP-CVH05-E,
provided as an accessory) inserted.
When using the safety function,
insert a connection cable
specially for the safety function.
Safety function
devices
Connection cable
for digital operator
Servomotor main
circuit cable
Serial converter unit
Connection cable for
serial converter unit
Servomotor with core
Linear scale
(not included)
Connection cable
for hall sensor
Connection cable
for linear scale
Regenerative
resistor *
Connect to the
MECHATROLINK-
III
