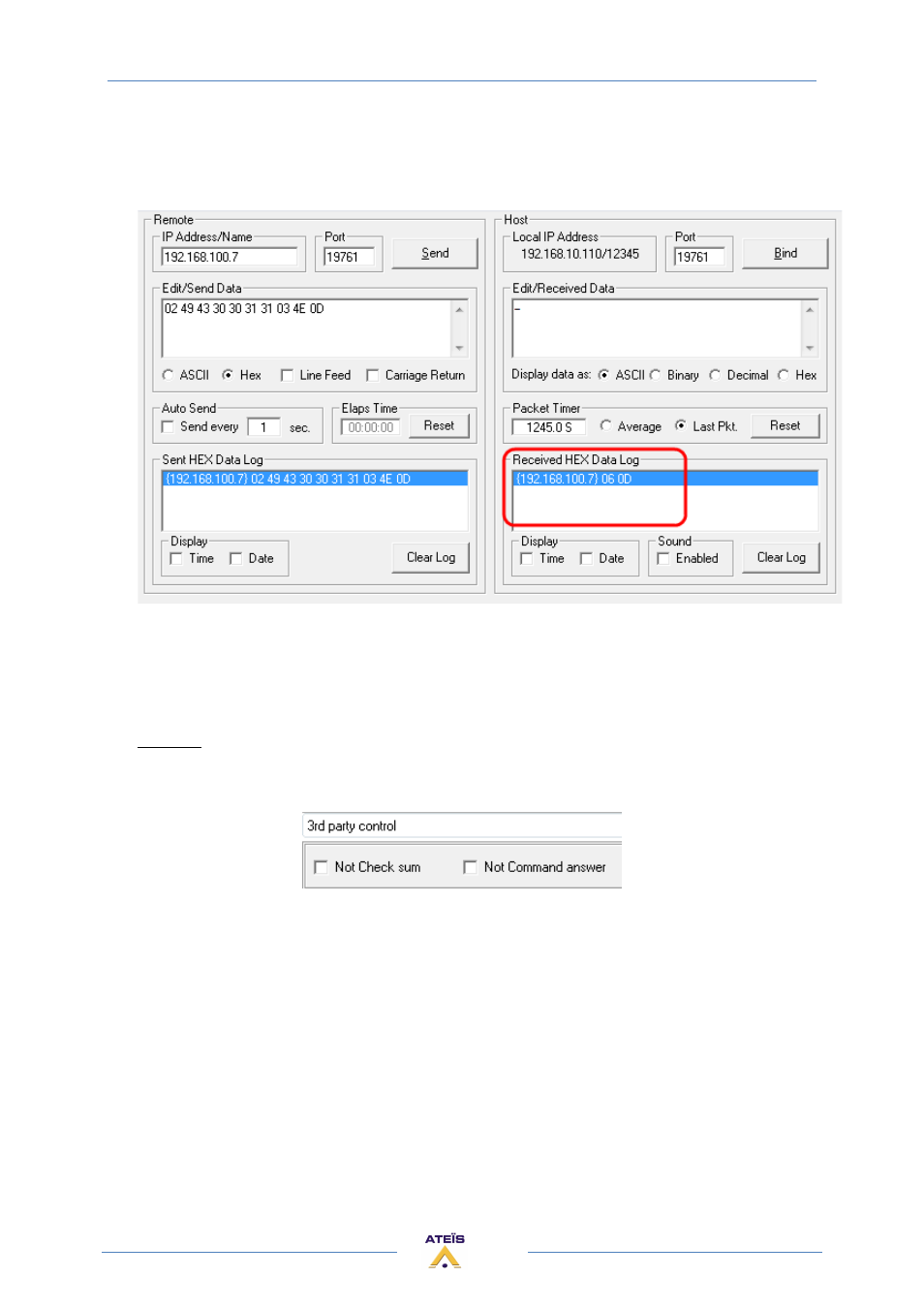

Now you can past or write the command string in the Data area.
Then click on "Send" to send the string to the UAP.
You can see the answer in the received data area.
The UAP answer "06 0D" as acknowledge, otherwise it answer "10D" or nothing.
You can also use the test command “02 54 03 54 0D". The UAP will just acknowledge if the
connection is working.
Caution : This test software is limited for Checksum max. up to 7D, If it's bigger than 7D, it will
result error.
So if you want test some function with checksum bigger than 7D, Set UAP command only with NOT
Checksum.
