D1
D2
W
H
Panel
Attachment

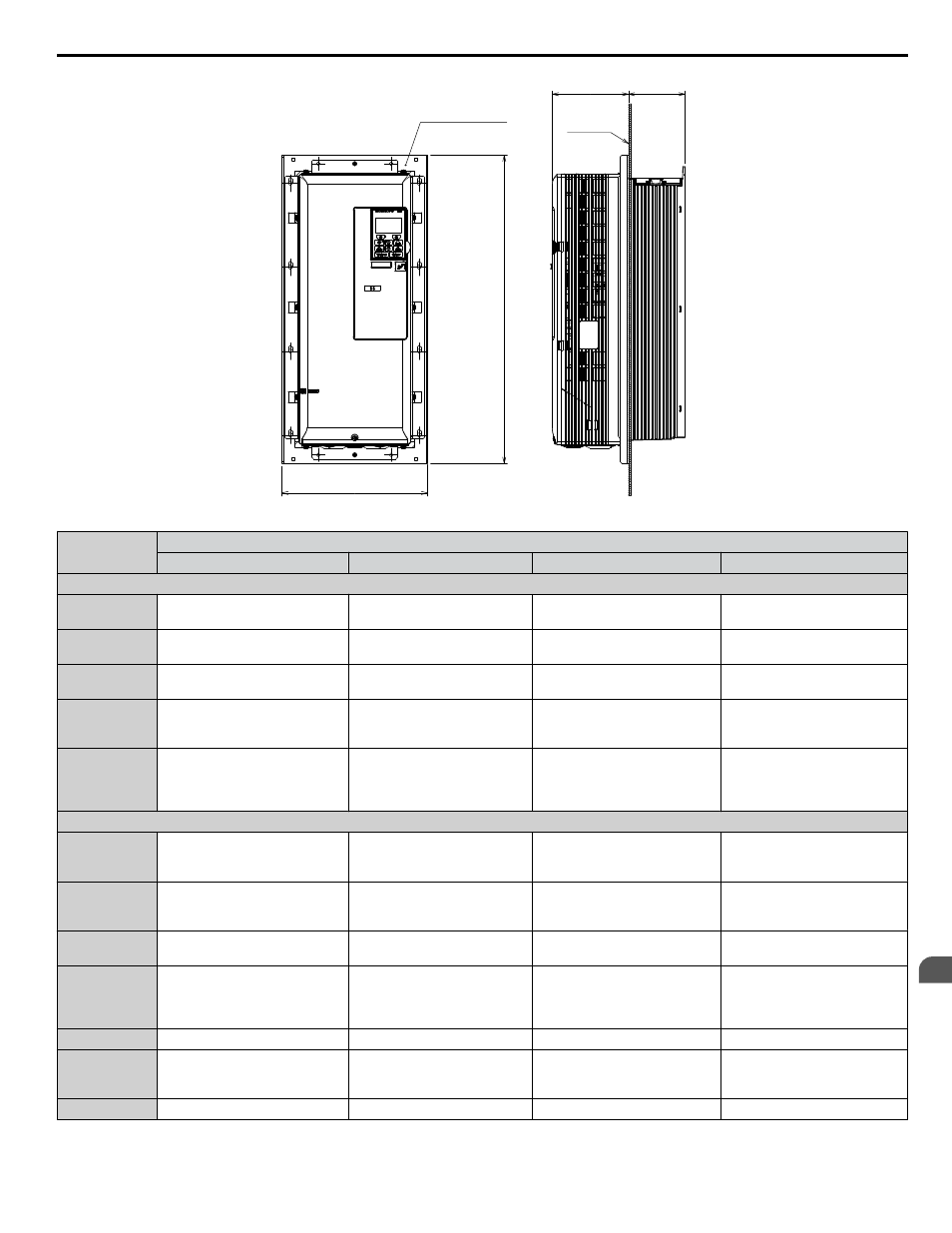

Table 6.8 NEMA Type 12 Drive Dimensions with Attachment Installed
Model
Dimensions mm (in)
W
H
D1
D2
Three-Phase 200 V Class
2A0011
2A0017
182 (7.17)
383 (15.08)
113.5 (4.47)
104.5 (4.11)
2A0024
2A0031
182 (7.17)
473 (18.62)
128.5 (5.06)
104.5 (4.11)
2A0046
2A0059
260 (10.24)
550 (21.65)
134 (5.28)
103.5 (4.07)
2A0075
2A0088
2A0114
320 (12.60)
585 (23.03)
157.8 (6.21)
105.7 (4.16)
2A0143
2A0169
2A0211
2A0273
444 (17.48)
824 (32.44)
220.2 (8.67)
179.8 (7.08)
Three-Phase 400 V Class
4A0005
4A0008
4A0011
182 (7.17)
383 (15.08)
113.5 (4.47)
104.5 (4.11)
4A0014
4A0021
4A0027
182 (7.17)
473 (18.62)
128.5 (5.06)
104.5 (4.11)
4A0034
4A0040
260 (10.24)
550 (21.65)
134 (5.28)
103.5 (4.07)
4A0052
4A0065
4A0077
4A0096
320 (12.60)
585 (23.03)
157.8 (6.21)
105.7 (4.16)
4A0124
380 (14.96)
746.4 (29.39)
132 (5.20)
157 (6.18)
4A0156
4A0180
4A0240
444 (17.48)
824 (32.44)
220.2 (8.67)
179.8 (7.08)
4A0302
556 (21.89)
1082 (42.60)
251 (9.88)
229 (9.02)
