4.1.6 Amplifier Configuration
4.1.6.1 Basic Amplifier Connection
Basic Am plifier Connection

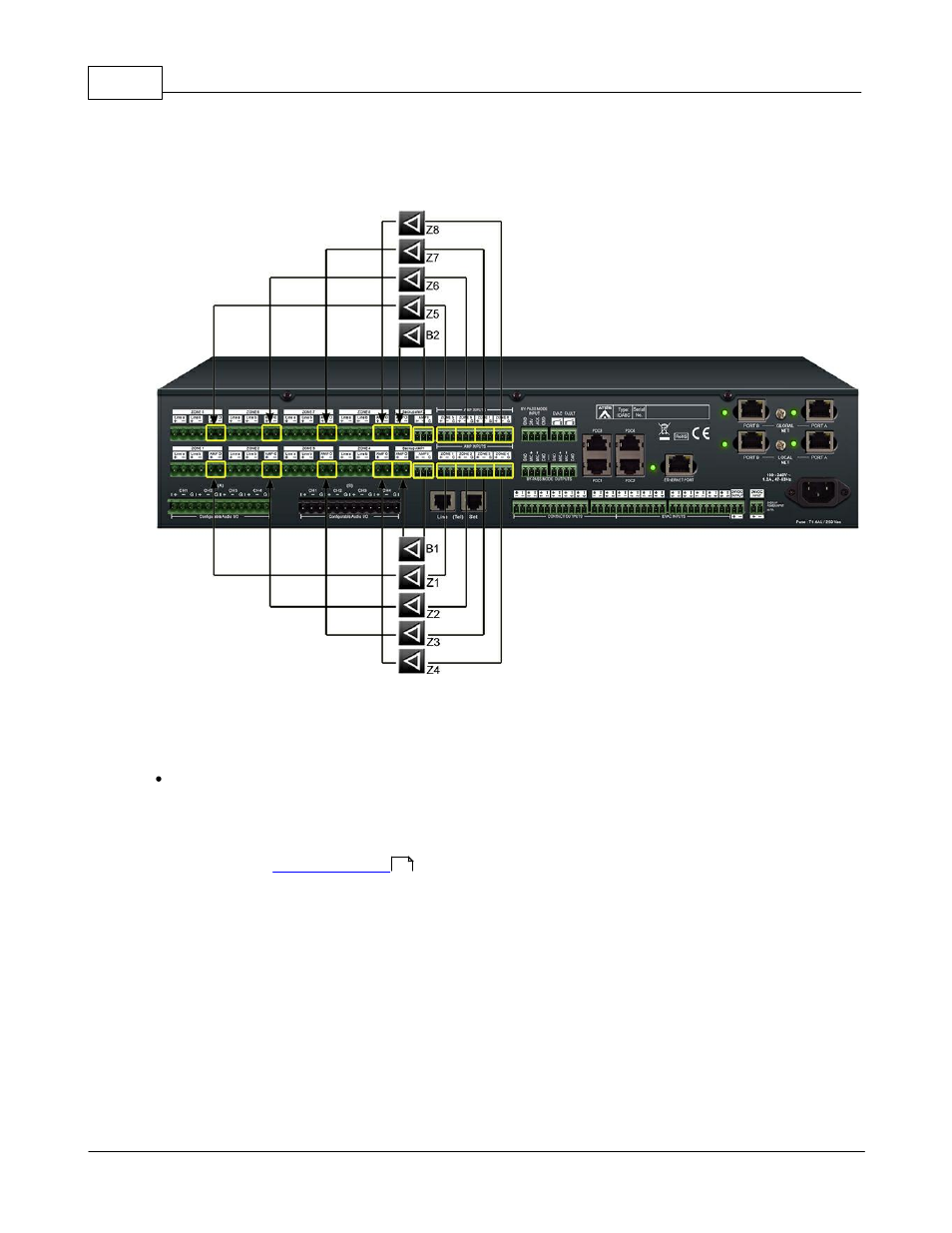

The IDA8 System applies a flexible amplifier setup. The figure above shows the basic setup of an
amplifier with the IDA8. The figure shows the connection between amplifiers and the IDA8C. There two
kinds of connections for an amplifier:
Normal Amplifiers Connection:
The connection of amplifiers for speaker zone outputs. In above figure(Basic Amplifier Connection),
Z1~Z8 are typical amplifiers. Follow these wires. The audio signal starts from the amplifier zone, the
output goes into amplifier's input, then is gained by the amplifier and then is input to the AMPO
connector of
speaker line I/Os . Each channel of amplifier's zones output should connect to it's
corresponding channel of the speaker zones output AMPO connector. For example, the amplifier
zone output 5 should connect to the Zone5 AMPO connector of the speaker zones output. See the
below figure.
