Loop2 fwd Gauge 1 relay SP A event 29
Loop2 rev Gauge 1 relay SP B event 30
Loop3 fwd Gauge 1 relay SP C event 31
Loop3 rev Gauge 2 relay SP A event 32
Programmer Alarm Gauge 2 relay SP B event 33
Alarm 1 Gauge 2 relay SP C event 34
Alarm 2 Gauge 3 relay SP A event 35
Alarm 3 Gauge 3 relay SP B event 36
Event 0 Gauge 3 relay SP C event 37
Event 1 Gauge 4 relay SP A event 38
Event 2 Gauge 4 relay SP B event 39
Event 3 Gauge 4 relay SP C event 40
Event 4 event 16 event 41
Event 5 event 17 event 42
Event 6 event 18 event 43
Event 7 event 19 event 44
Event 8 event 20 event 45
Event 9 event 21 event 46
Event 10 event 22 event 47
Event 11 event 23 alarm combination
Event 12 event 24 N/A
Event 13 event 25
Event 14 event 26
The “Alarm Combination” option will allow the user to select the specific combination of alarms
to use.

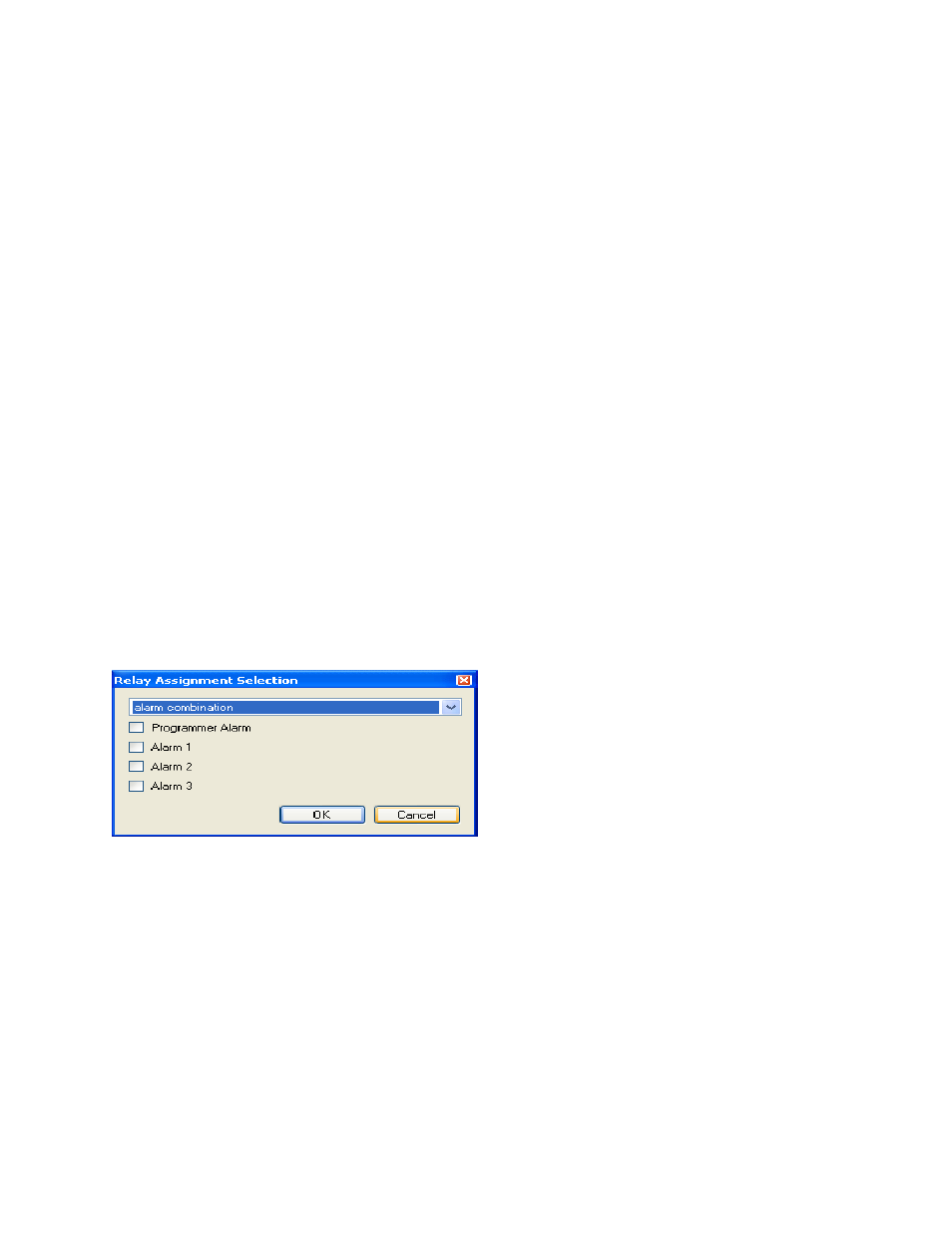

Configurator – Alarm Combination options
