PC NC Maintenance Manual Chapter 8: Fixed File Operations
8-69
8.3 PLC Label in Diagnosis and Parameter Screens

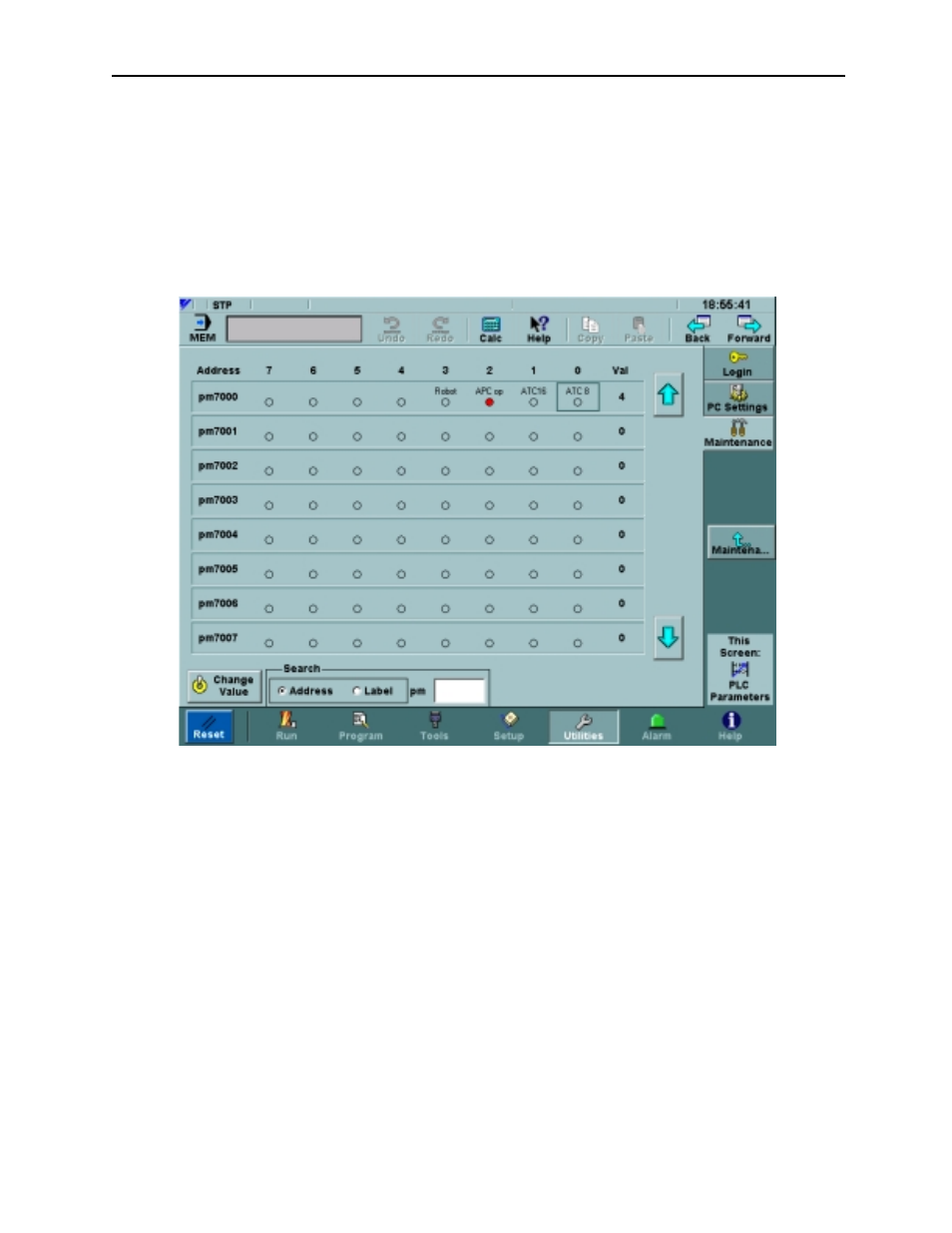

Diagnosis Screen
Labels for the Utilities: PLC Diagnosis screen are stored in the text file
‘c:\ypcnc\database\diagnosis.txt.
The file has an entry for each labelled bit, and the entry contains address,
label, and detail. For example, the selected bit may have the following
entry in the labels file:
• #30042 STLK ; Start Interlock
Each line must begin with a ‘#’, followed by the 4 digit byte number, then
the bit number. If the address is byte data, there is no need to specify the
bit number, and byte labels are displayed in the bit 0 position. Bit numbers
range from 0 to 7, not 1 to 8. Next, there are two spaces, then the label that
appears about the bit. Bit labels can contain up to 7 characters. Finally, a
semicolon is used to show the start of any details string that may appear in
the Details box at the bottom right corner of the window. If none of this
