8
SMC–4000 User Manual

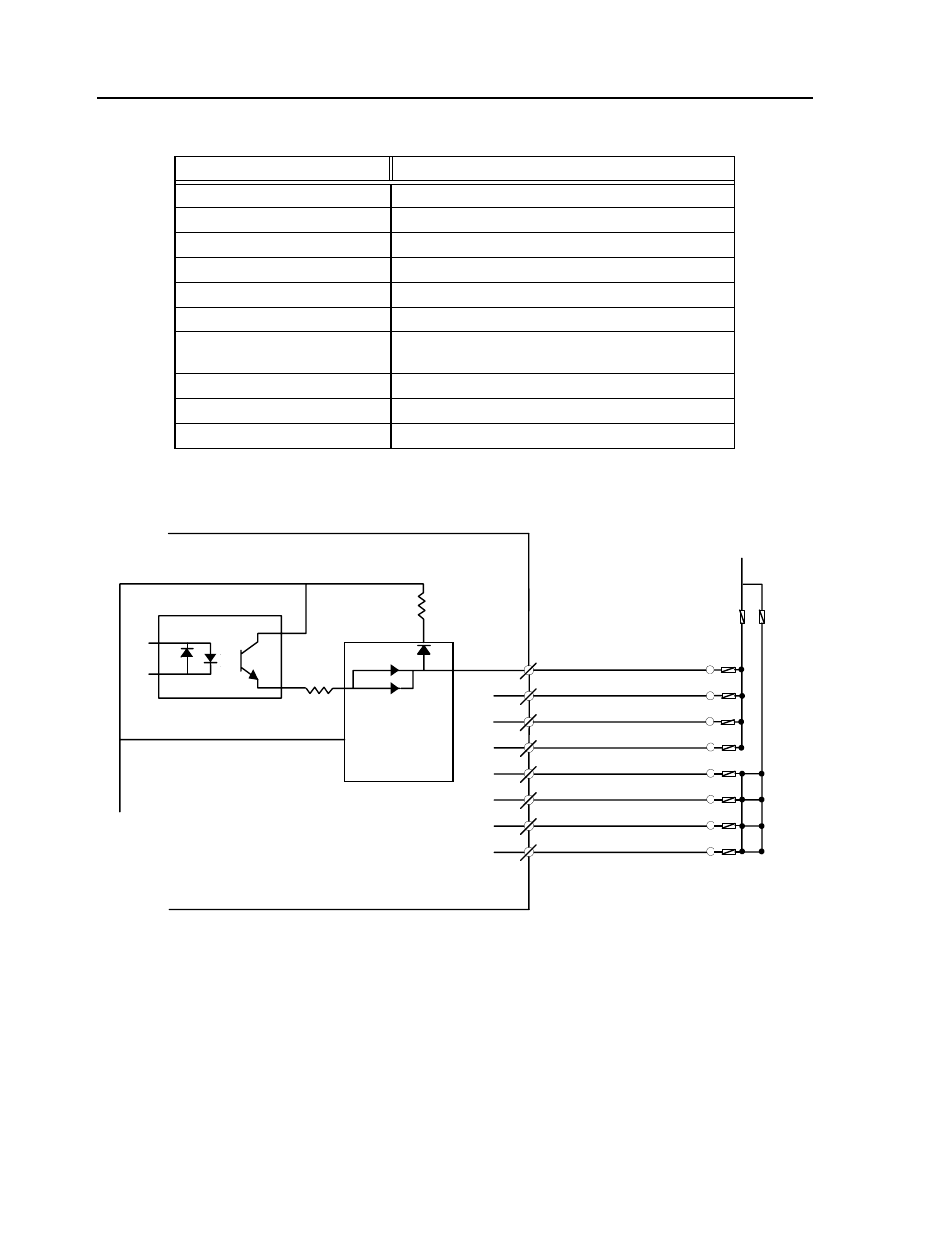

Digital Output
NOTE: The ULN 2803 output chip is capable of 600mA at a single output,
or 800mA for the eight outputs simultaneously.
Item Specifications
Number of Output Points 8
Output Format Sinking
Output Classification Transistor Output
Isolation Optical
Load Voltage 24VDC ± 20%
Load Current 200mA/Output (600mA if activated individually)
Response Time OFF to ON <0.25ms
ON to OFF <0.5ms
External Common Power 24VDC ± 20% 15mA
Common User Fuse Rating 800mA per bank of four
Individual User Fuse Rating 200mA recommended
L
L
L
L
L
L
L
L
PS2504–4
SMC–4000 CN5 Connector
Internal Circuitry
34
21
8
35
9
36
22
10
Digital Output 1
Digital Output 2
Digital Output 3
Digital Output 4
Digital Output 5
Digital Output 6
Digital Output 7
Digital Output 8
Fuse
10k
ULN2803
4.7k
+24VDC
Field Wiring
0VDC from power input
