Stepper Motor Smoothing
The
command provides stepper motor smoothing. The effect of the
smoothing can be thought of as a simple Resistor-Capacitor (single pole) filter. The filter occurs after the
motion profiler and has the effect of smoothing out the spacing of pulses for a more smooth operation of
the stepper motor. Use of KS is most applicable when operating in full step or half step operation. KS will
cause the step pulses to be delayed in accordance with the time constant specified.
When operating with stepper motors, you will always have some amount of stepper motor smoothing,
KS. Since the filtering effect occurs after the profiler, the profiler may be ready for additional moves
before all of the step pulses have gone through the filter. It is important to consider this effect since steps
may be lost if the controller is commanded to generate an additional move before the previous move has
been completed. See the discussion below, Monitoring Generated Pulses vs. Commanded Pulses.
The general motion smoothing command, IT, can also be used. The purpose of the command, IT, is to
smooth out the motion profile and decrease “jerk” due to acceleration.
Monitoring Generated Pulses vs. Commanded Pulses
For proper controller operation, it is necessary to make sure that the controller has completed generating
all step pulses before making additional moves. This is most particularly important if you are moving
back and forth. For example, when operating with servo motors, the trippoint AM (After Motion) is used
to determine when the motion profiler is complete and is prepared to execute a new motion command.
However, when operating in stepper mode, the controller may still be generating step pulses when the
motion profiler is complete. This is caused by the stepper motor smoothing filter, KS. To understand this,
consider the steps the controller executes to generate step pulses:
First, the controller generates a motion profile in accordance with the motion commands.
Second, the profiler generates pulses as prescribed by the motion profile. The pulses that are generated by
the motion profiler can be monitored by the command, RP (Reference Position). RP gives the absolute
value of the position as determined by the motion profiler. The command, DP, can be used to set the value
of the reference position. For example, DP 0, defines the reference position of the A axis to be zero.
Third, the output of the motion profiler is filtered by the stepper smoothing filter. This filter adds a delay
in the output of the stepper motor pulses. The amount of delay depends on the parameter which is
specified by the command, KS. As mentioned earlier, there will always be some amount of stepper motor
smoothing. The default value for KS is 2 which corresponds to a time constant of 6 sample periods.
Fourth, the output of the stepper smoothing filter is buffered and is available for input to the stepper
motor driver. The pulses which are generated by the smoothing filter can be monitored by the command,
TD (Tell Dual). TD gives the absolute value of the position as determined by actual output of the buffer.
The command, DP sets the value of the step count register as well as the value of the reference position.
For example, DP 0 defines the reference position of the A axis to be zero.

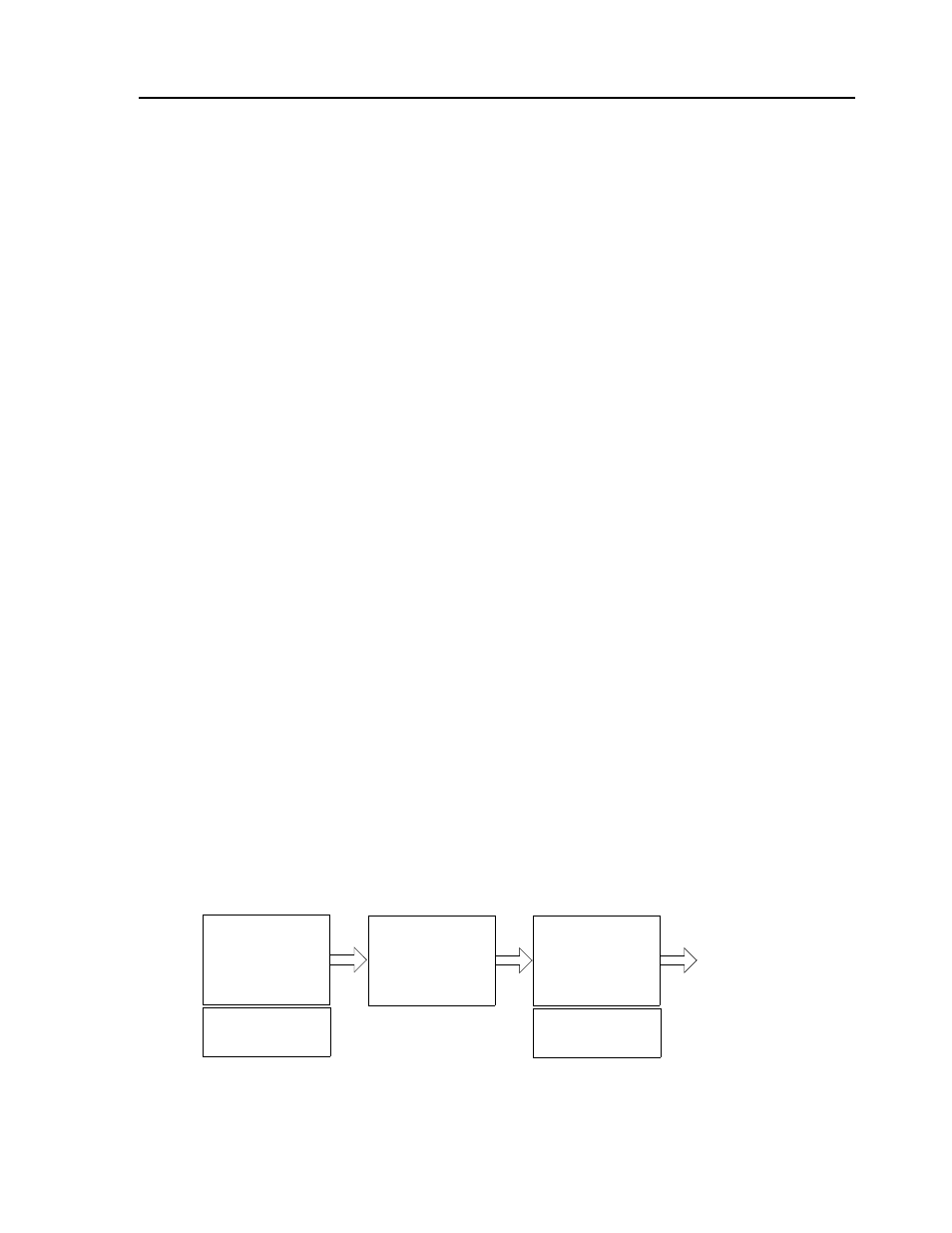

Motion Profiler
Stepper
Smoothing
Filter
(Adds a Delay)
Ouput Buffer
Ouput
(To Stepper Driver)
Step Count
Register (TD)
Reference
Position (RP)
Velocity Profiles of ABC
