131
4
Probes

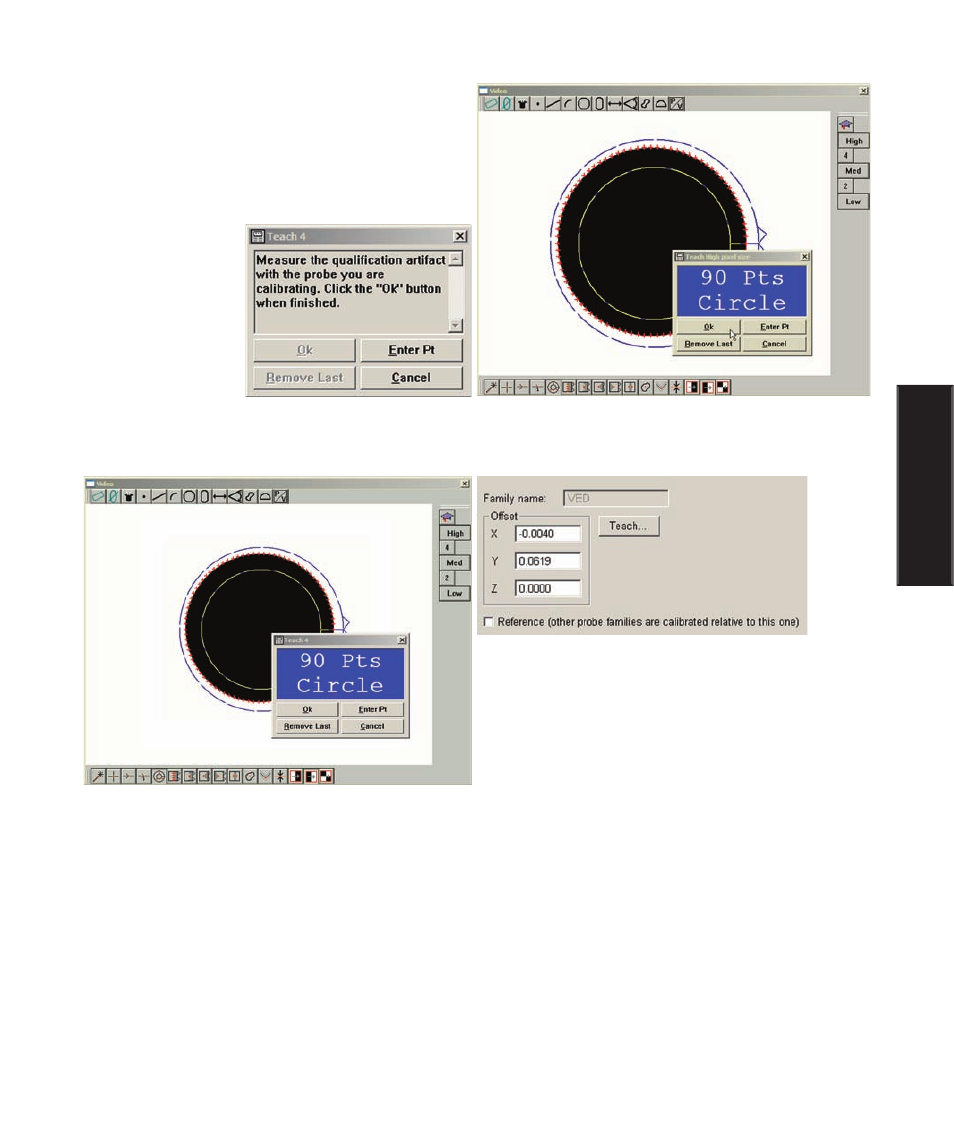

4 Measure the circle artifact and click OK to
proceed to the next step in the calibration process.
The magnification will be changed back to the one
selected for calibration and you will be asked to
measure the circle artifact again at the new magni-
fication.
5 Measure the circle artifact again and click OK to complete the offset calibration at the selected mag-
nification. The resulting offset values will be entered into the Offset fields.
6 Click OK in the Probe Library screen to complete the offset calibration, or select the next magnifica-
tion to be calibrated.
Calibrating Offset
