222 QC5200 Series User’s Guide

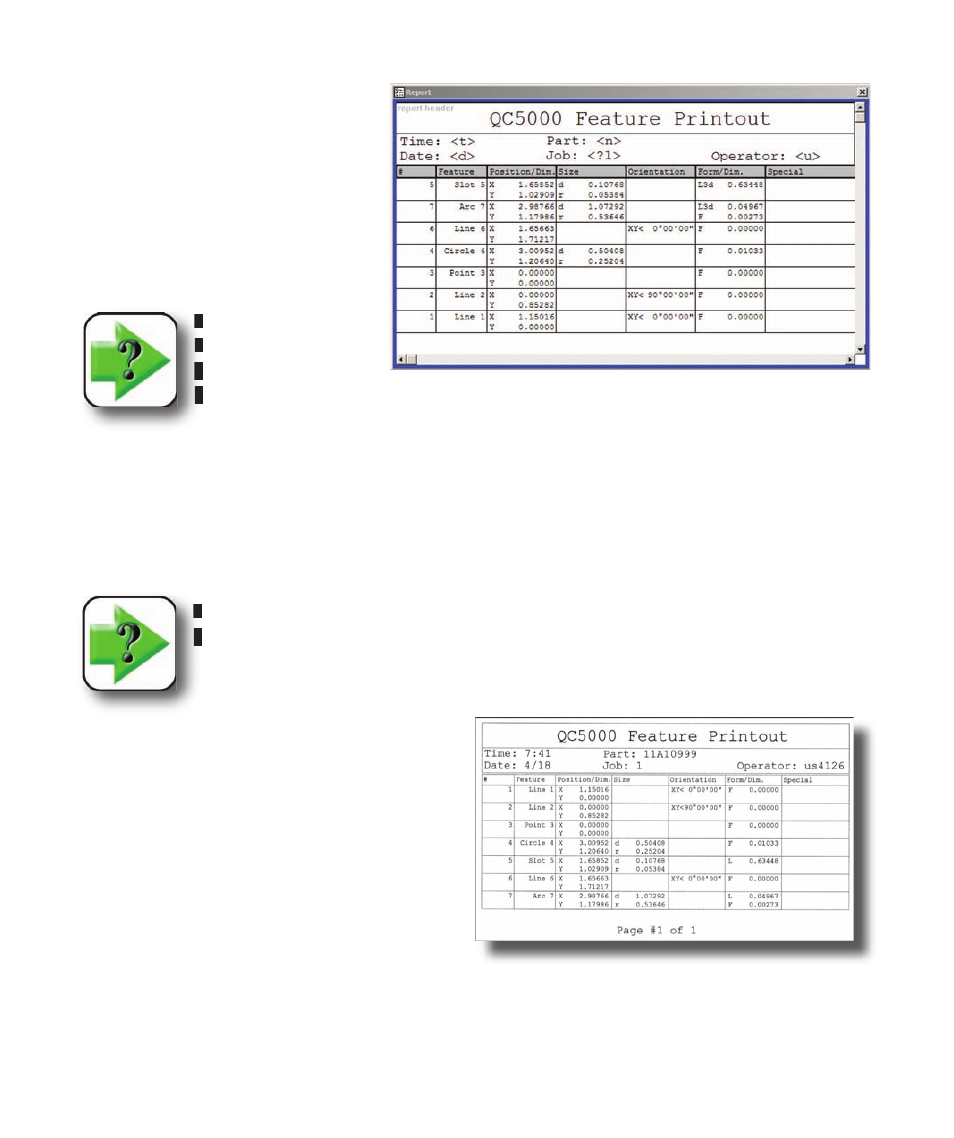

Report template
The Report template displays a table
of features and related measurement
data collected during a work session or
during one program run. The Report
template is configured and formatted
to print reports of measurement results
that satisfy most typical requirements.
NOTE
The contents of the
Report template is
cleared by the system at the beginning of each program run.
The default Report template displays feature ID numbers, feature names, position, size, orientation, form
and dimension information such as length. The template also displays a report header that includes time,
date, part number (part name by default), job number, and operator identification. All the header informa-
tion is entered automatically by the computer except job number. The system prompts the user for a job
number when the report is printed. Headers and footers can be edited to fill specific reporting require-
ments.
NOTE
Configuration and formatting of template headers is discussed later in this chapter.
Additional measurement data categories can be
dragged and dropped into the Report template
from the Results window to create new columns.
As shown here, the organization of feature data
is horizontal. For example, all results for a given
feature are contained in a horizontal row. Table
cells can contain multiple results.
The contents of the Report template can be ex-
panded to include additional results data categories
and exported. However, the format of the Runs
template might be more appropriate for exporting data because it contains a complete history of measure-
ment results from all program runs. The Report template would need to be exported after each program
run because its contents is cleared at the beginning of each program run.
Typical Report template printout
