Programming

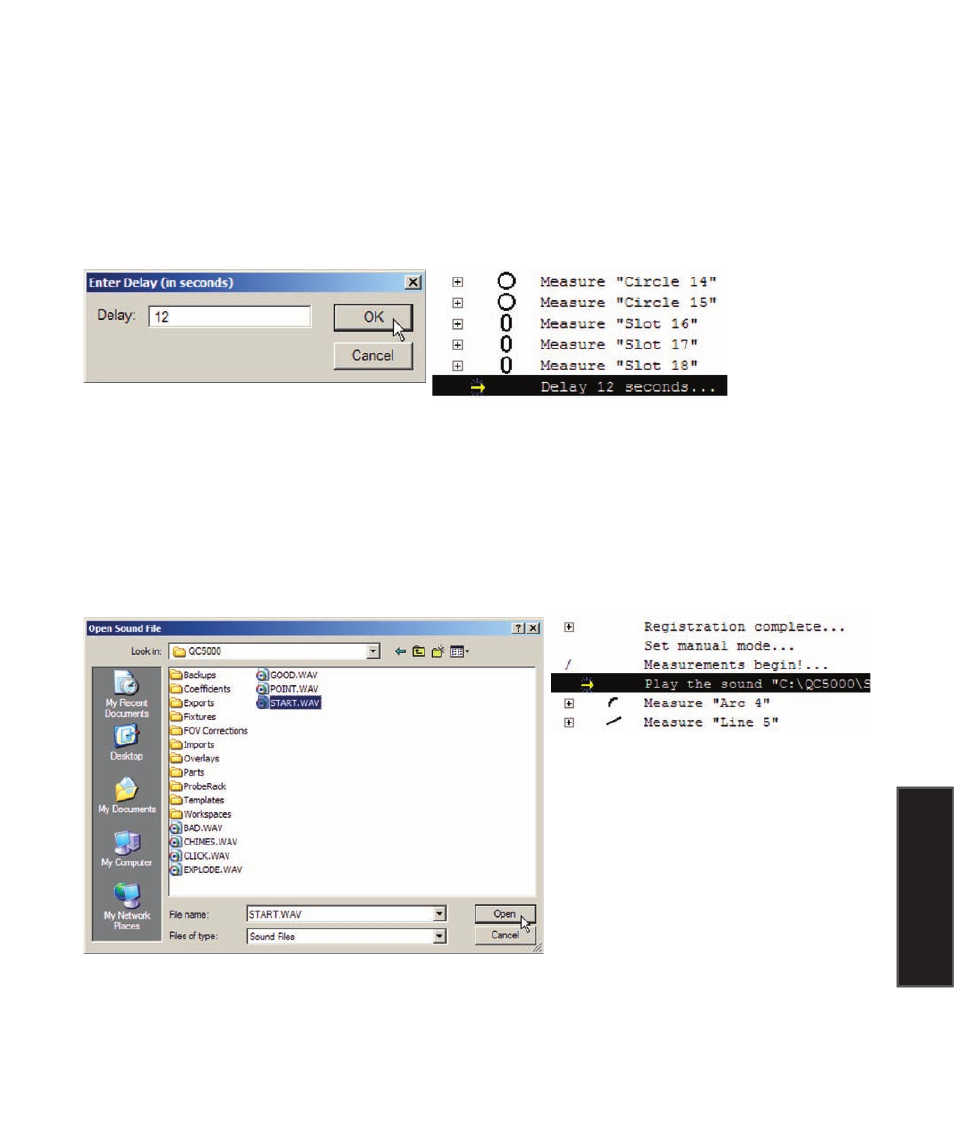

Delay
When the QC5200 is running as part of a larger automated system measuring a series of parts, it might be
necessary to pause the program execution to accommodate operator or system interaction.
When Delay is selected from the menu, the Enter Delay dialog box will be displayed. Enter the desired
delay in seconds and then click OK. The new delay line will appear at the insertion point below the current
step set earlier.
Play sound
Audio prompting can be a valuable part of system interaction with the operator, and is especially useful
when combined with user messages.
When Play Sound is selected from the menu, the Open Sound file dialog box will be displayed. Select
the desired (.wav) file and then click OK. The new sound line will appear at the insertion point below the
current step set earlier.
Editing Programs
