QC5200 Series User’s Guide
6 When it is known that some pallets will not be full, the program can be configured to prompt the
operator at the beginning of each program execution to specify the number of parts contained by the current
palette.

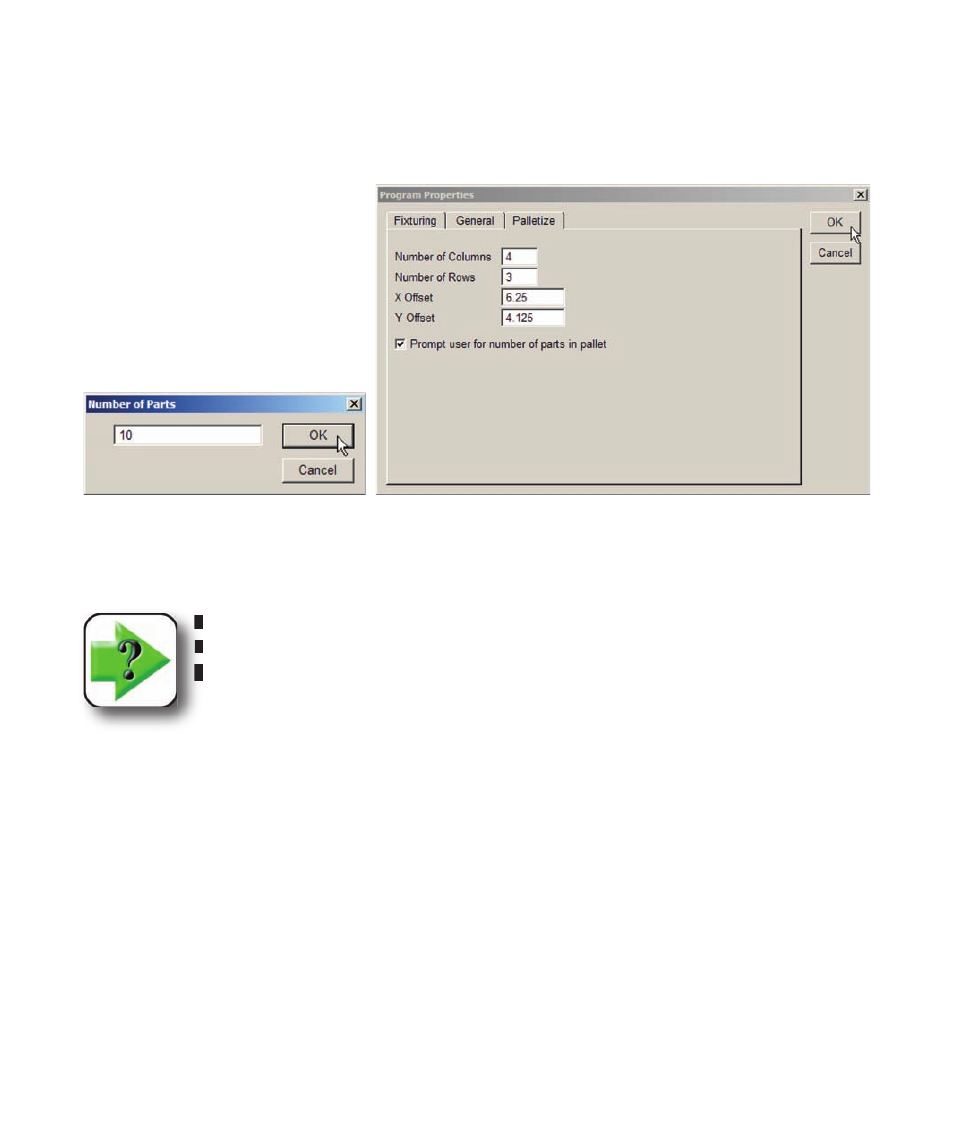

Check the Prompt user... box to spec-
ify the number of parts contained in
the palette when the palette is not
full. The Number of Parts dialog box
will be displayed.
Enter the number of parts contained
in the palette and click OK.
When the program runs, the QC5200 will measure parts until the number of parts specified have been
measured.
NOTE
The matrix of parts must be contiguous. Empty locations within the palette will cause
the program execution to halt.
