5
Measuring
175

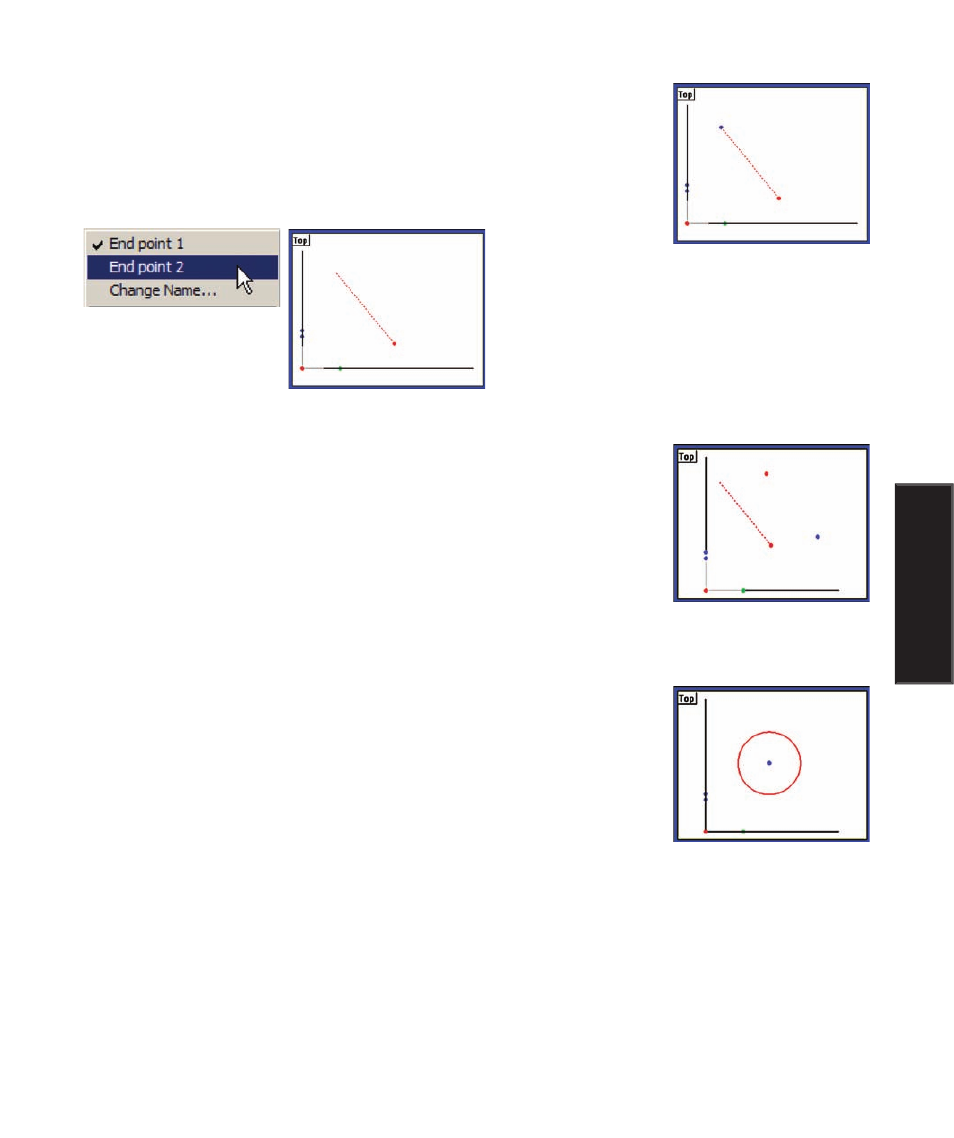

Points constructed from a distance
Select the distance, click Measure Point and then click OK. The first endpoint
of the distance will be constructed and will be shown in the Features template,
Part View window and Results window. Right-click the Results window to
show alternative point constructions.
Point constructed from a distance and a point
A point feature can be constructed and offset from a parent point feature by a
parent distance feature. Select the desired point and distance features, click
Measure Point and then click OK. The new point feature will be constructed,
offset from the parent point and will be shown in the Features template, Part
View window and Results window.
Point constructed from a circle
Select the circle, click Measure Point and then click OK. The center point of
the circle will be constructed and will be shown in the Features template, Part
View window and Results window.
End point 2
Right-click the Results
window to display menu
of alternative features
Constructed point is offset
from parent point by parent
distance
Constructing Features
