User Interface
Introduction
The QC5200 user interface is a workspace consisting of windows, menus, toolbars and a statusbar. The
overall appearance of the user interface can vary greatly and can be customized to satisfy the requirements
and personal preferences of the user. However, the individual elements of every workspace are consistent
in purpose and function, and do not significantly change. Workspace elements include:
• The DRO, Template, Results, Part View and Live Video windows
• Menu bar and on-screen menus
• Toolbars
• Statusbar

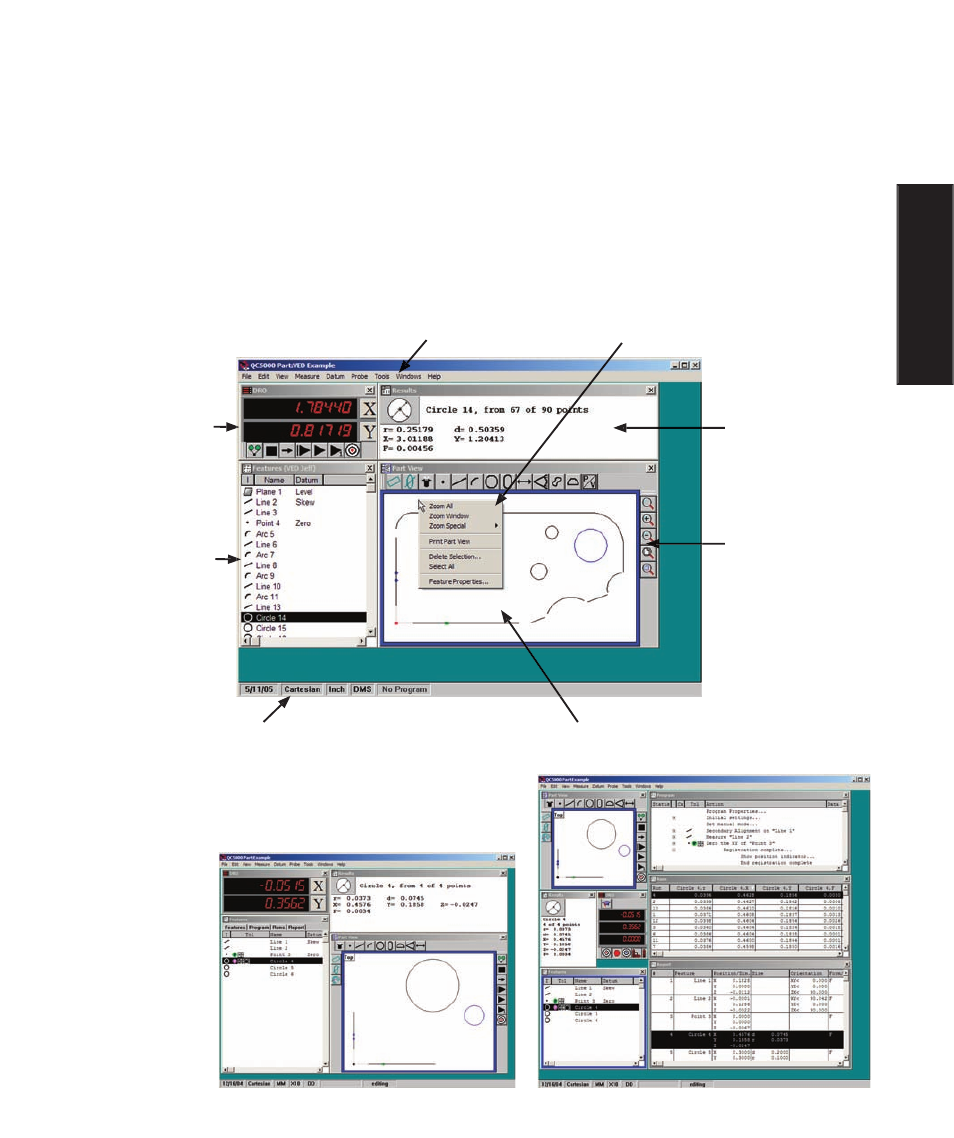

The overall appearance of the user interface, or workspace,
can be customized to vary greatly as shown here, but indi-
vidual workspace elements remain essentially unchanged.
DRO window
Results window
Part View window
Template window
Toolbar docked
to the
Part View window
Statusbar
Menubar menus On-screen menu
Introduction
