65
3
Quick Start
Demonstration

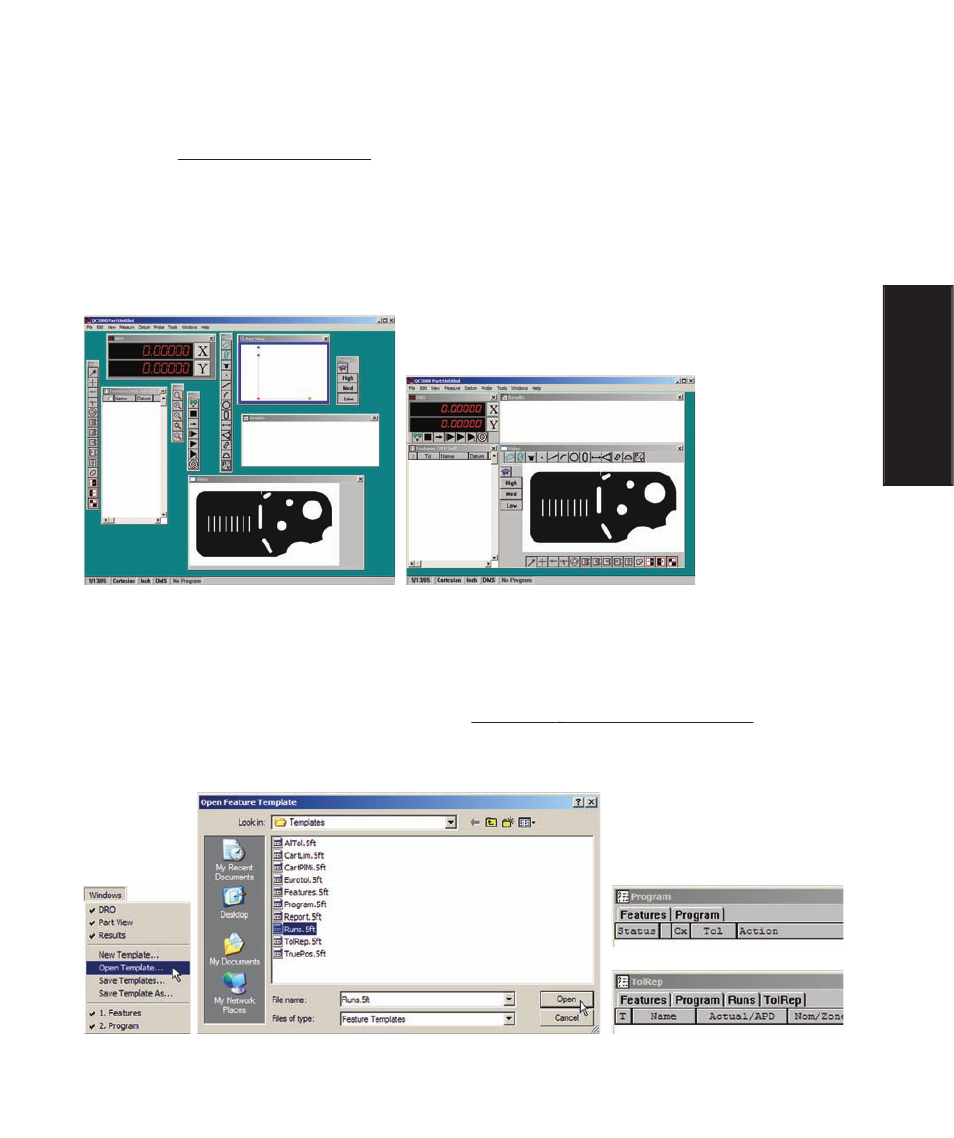

Organizing the workspace
A detailed description of the user interface and methods of organizing, saving and opening workspaces is
provided by Chapter 2: User Interface Chapter 2: User Interface. The workspace components for this demonstration include the:
• DRO • Results window • Part View window • Live Video window
• Features template • Program template • Runs template • TolRep template
• Measure toolbar • VED toolbar • Program toolbar • Datum toolbar
• Probe toolbar
A single monitor is used in this demonstration. The Win-
dows should be resized and relocated to optimize viewing.
Toolbars should be
docked to conserve
screen space. The
Part View and Live
Video windows are
also stacked to con-
serve space and are
toggled using the P/V
toolbar button.
Selecting templates
A detailed description of templates is provided by Chapter 7: Chapter 7: Reporting and Templates Reporting and Templates. The Runs and
TolRep (Tolerance Report) templates will be stacked on the Features and Program templates to facilitate
data collection in the Runs database and tolerance reporting.
Workspace windows and toolbars... are organized to optimize viewing
Open the Runs and TolRep templates... to add them to the Template
window
Organizing the Workspace
