5
Measuring
177

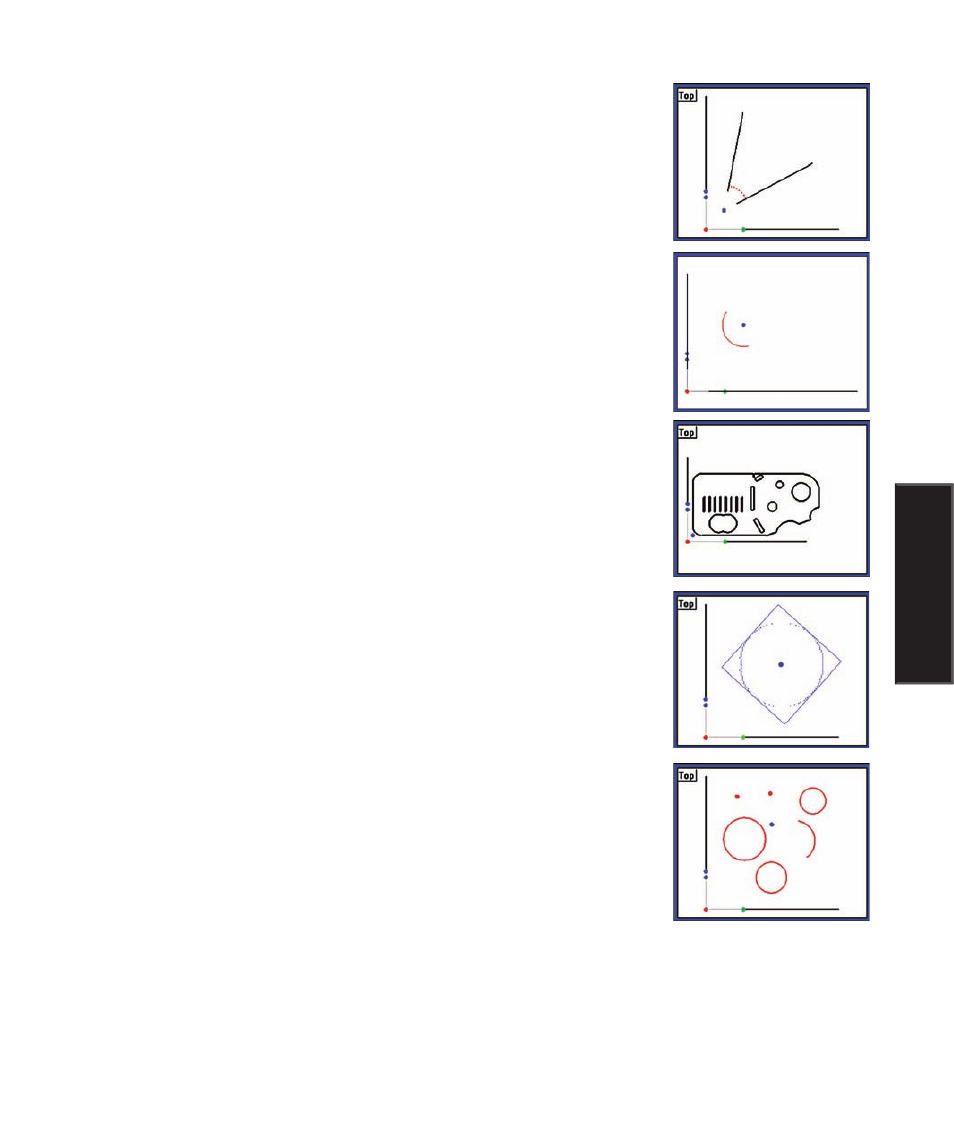

Point constructed from an angle
Select the angle, click Measure Point and then click OK. The apex point of
the angle will be constructed and will be shown in the Features template, Part
View window and Results window.
Point constructed from an arc
Select the arc, click Measure Point and then click OK. The center point of the
arc radius will be constructed and will be shown in the Features template, Part
View window and Results window.
Point constructed from a profile
Select the profile, click Measure Point and then click OK. The anchor point
of the profile will be constructed and will be shown in the Features template,
Part View window and Results window.
Point constructed from a blob
Select the blob, click Measure Point and then click OK. The geometric center
point of the blob will be constructed and will be shown in the Features tem-
plate, Part View window and Results window.
Points constructed from multiple features
The geometric center point of multiple features can be constructed from any
combination and any number of points, slots, circles, arcs and blobs. Select
the desired features, click Measure Point and then click OK. The center point
(centroid) of the entire collection of features will be constructed and will be
shown in the Features template, Part View window and Results window.
Constructing Features
