Page | 187
VU METERS AND GAIN
The largest portion part of the individual control panels is devoted to VU (Volume Unit) meters
with Gain control knobs. The VU meters displayed vary depending on the Connection Type.

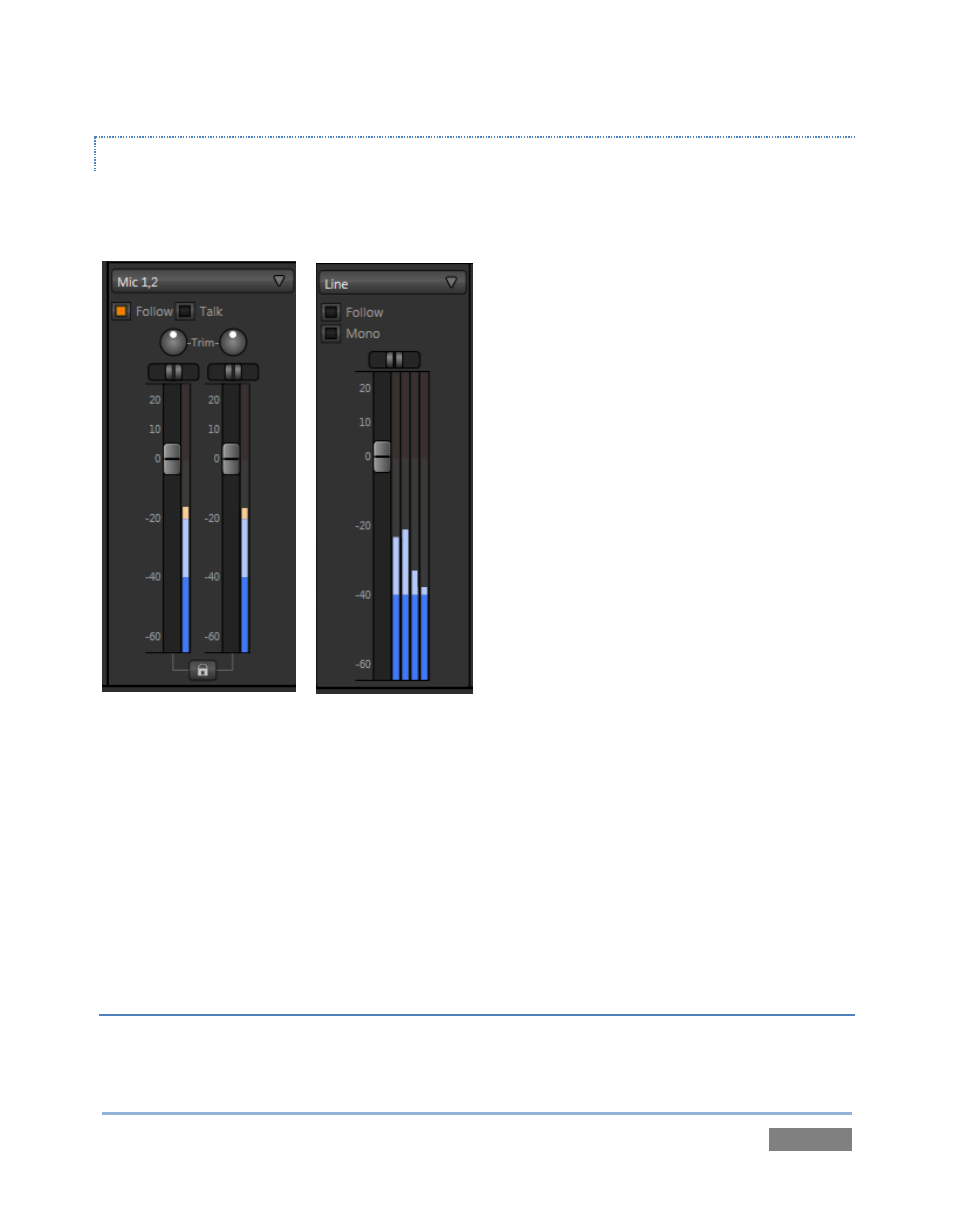

Figure 179 Figure 180
Two VU Meters are displayed when an analog Connection Type is set to a Mic option, with
individual knobs to control the Gain for each input channel (see Figure 179).
When the Connection Type is Line, the VU meter displays the levels for the two analog input
channels, controlled by a single Gain knob. Also, the Pan slider is replaced with a Balance
control.
Other connection Type selections and sources display a single VU meter with either two or four
level graphs controlled by a single Gain knob (Figure 180).
AUDIO LEVELS
TriCaster’s analog audio conforms to SMPTE RP-155. The maximum input/output level is +24
dBu. Nominal input level is +4 dBu (-20dB FS), and the sample rate is 48 kHz. Levels above 0dB
