Page | 10

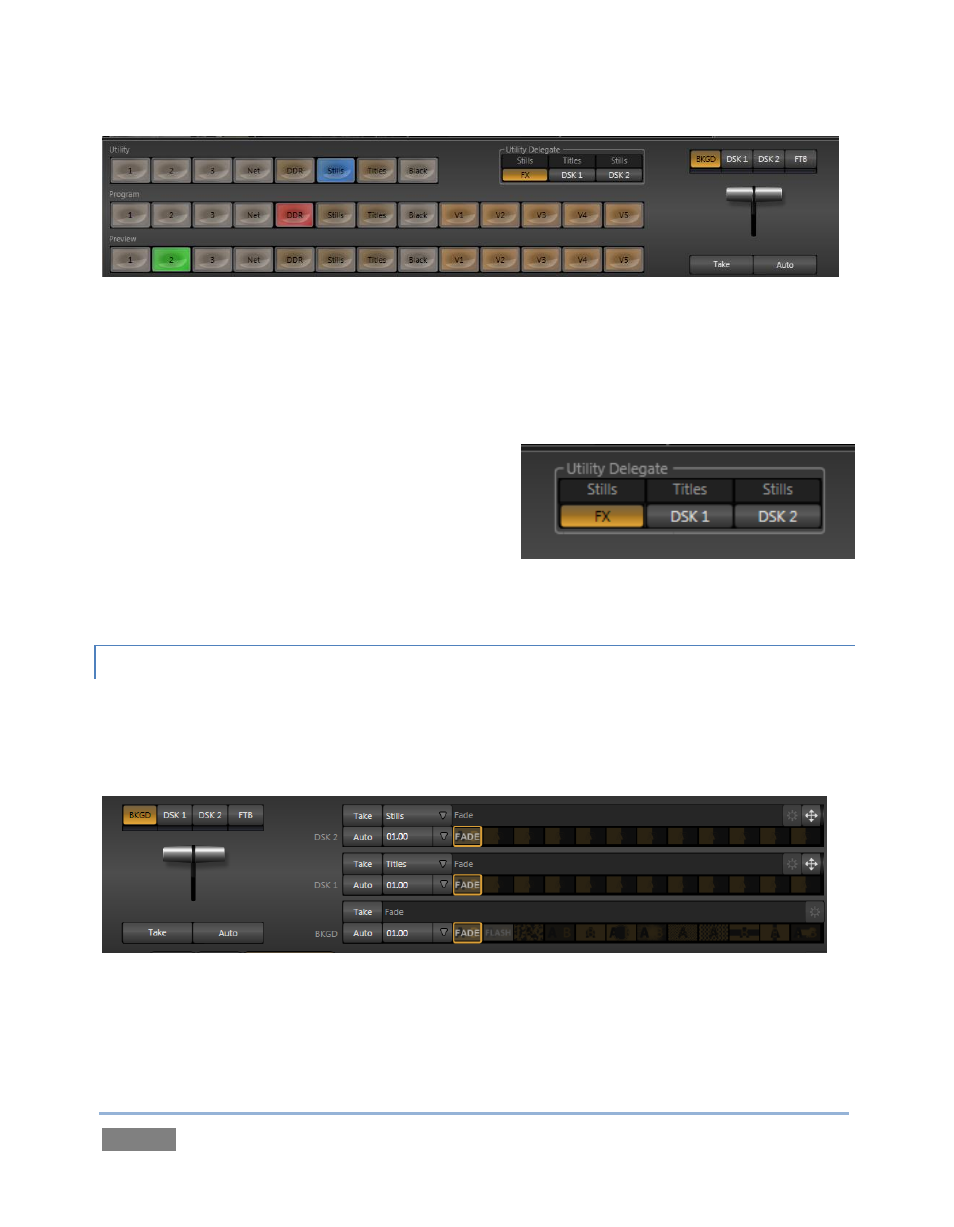

Figure 4
The three-row (Utility, Program, and Preview) Switcher allows you to freely hot-punch between
external sources (Cameras or Network), internal sources (Media Players) and Virtual Inputs, or
Take/Transition between Preview and Program sources.
Use Utility row selections to delegate video and
graphics sources to various internal video busses,
including the two primary DSK (Overlay) channels
and the FX bus (used as a secondary source for
virtual sets or for other purposes).
2.4.6 VIDEO LAYERS AND TRANSITIONS
The Transition section of TriCaster’s Live Desktop provides powerful tools for arranging and
displaying the numerous video and graphic layers contributing to TriCaster’s ultimate program
output.
Figure 6

Display of one or more user-delegated video layers, including FTB (Fade to Black) is
controlled by the main T-bar, supplemented by one-click Take or Auto buttons.
Figure 5
