3.10 CONFIGURE MULTIVIEW OUTPUT
The next tab in the Output Configuration panel is
Multiview. Settings in this tab determine what is
displayed on TriCaster’s secondary DVI output,
and the resolution of that display. You might use
this output for subsidiary monitoring purposes, or
perhaps to supply a projection system.

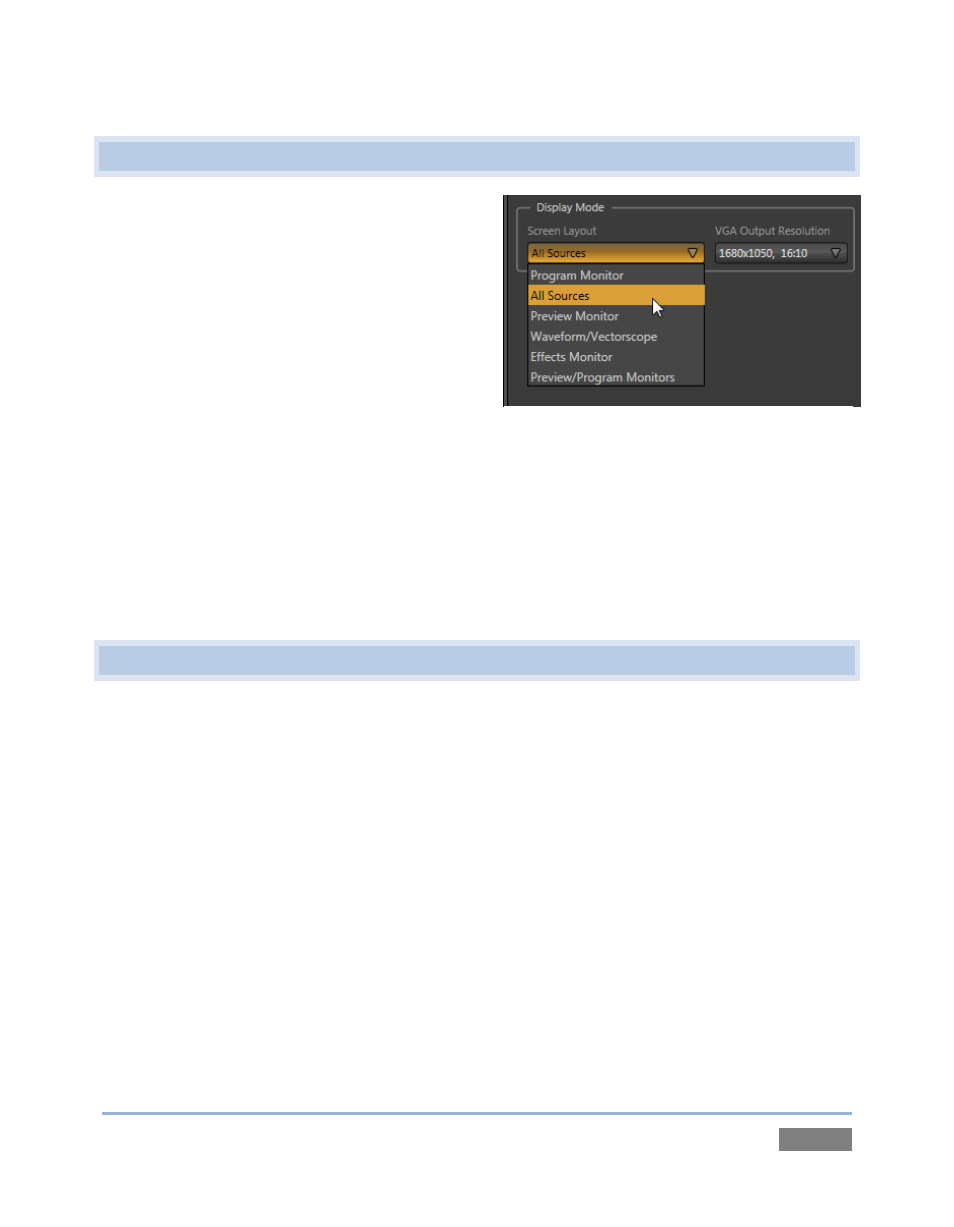

The Screen Layout drop-down menu provides
numerous optional displays, including Program,
Preview or FX monitors, an All Sources (monitors
for all Switcher sources, plus a clock) option, and
many more.
Set the VGA Output Resolution to the native resolution of the external device, and test the
different display options to find a suitable setting.
3.11 CONFIGURE VIDEO INPUT
Let’s continue by configuring the video sources you connected earlier (Section 3.4):
1. Click the All Monitors tab at upper-left on the Live Desktop.
2. Move your mouse back and forth over the input monitors. Notice that a Configure
button (gear icon) appears above the top-right corner of each input monitors as you do
so.
3. Click the Configuration button to open a tabbed settings panel for Camera 1 (Figure 23).
4. Click the Connection Type button to reveal a drop-down menu listing a variety of
connection types. Select the correct format, such as 720p (Component), or 1080i (SDI),
etc., for the video source you plan to connect to this input.
Figure 22
