H3C Technologies H3C WX6000 Series Access Controllers User Manual
Page 416
36-20
Select system from the Name drop-down list to use it as the authentication scheme
Click Apply. S configuration progress dialog box appears, as shown in
.

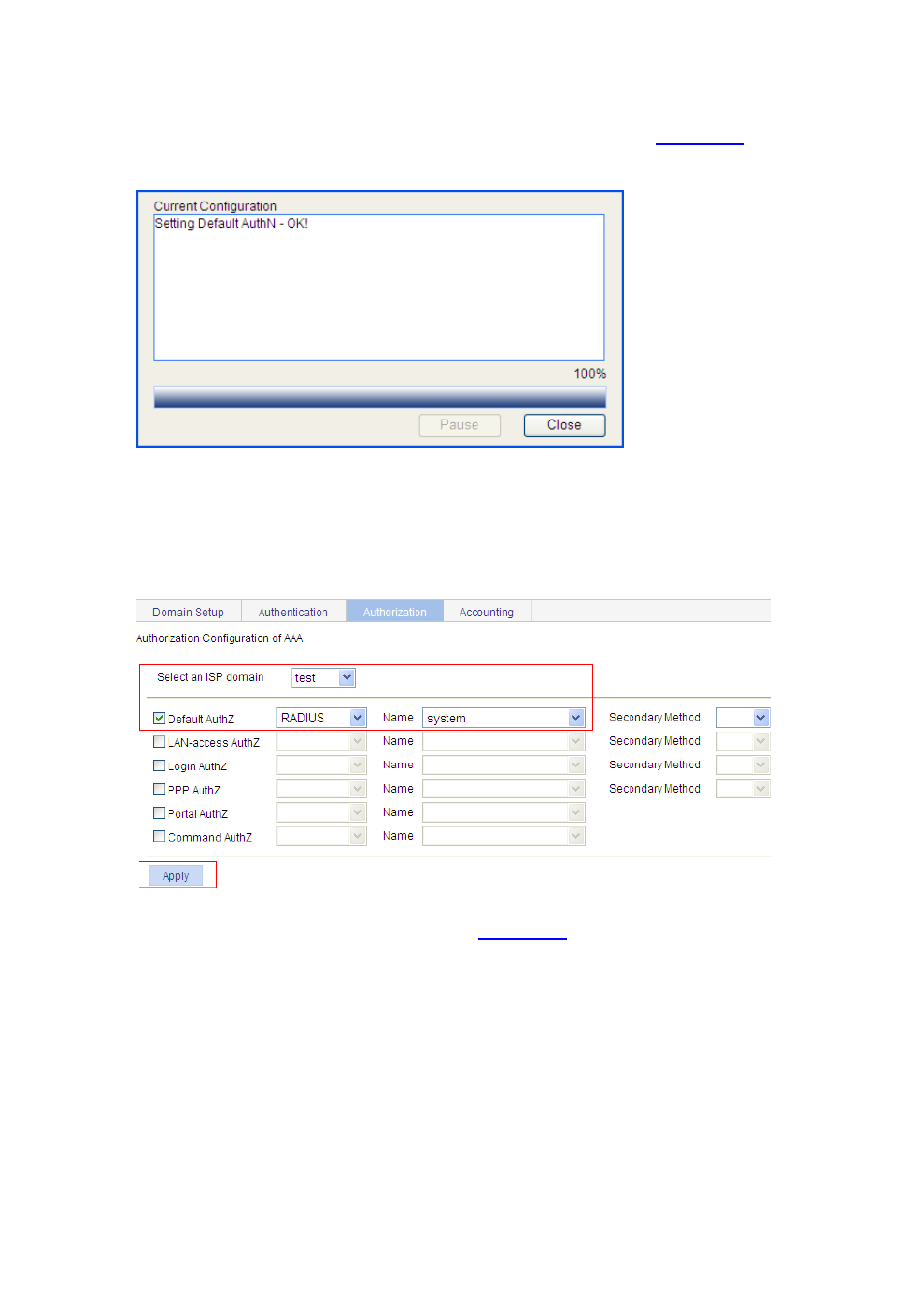

Figure 36-18 Configuration progress dialog box
After the configuration process is complete, click Close.
# Configure the AAA authorization method for the ISP domain.
Select the Authorization tab.
Figure 36-19 Configure the AAA authorization method for the ISP domain
Perform the following configurations, as shown in
Select the domain name test.
Select the Default AuthZ checkbox and then select RADIUS as the authorization mode.
Select system from the Name drop-down list to use it as the authorization scheme
Click Apply. A configuration progress dialog box appears
After the configuration process is complete, click Close.
# Configure the AAA accounting method for the ISP domain, and enable accounting optional.
Select the Accounting tab.
