YASNAC PC NC Operating Manual
Chapter 3: HMI Process Operation
3 - 89
3.7.17 PLC Parameters Screen

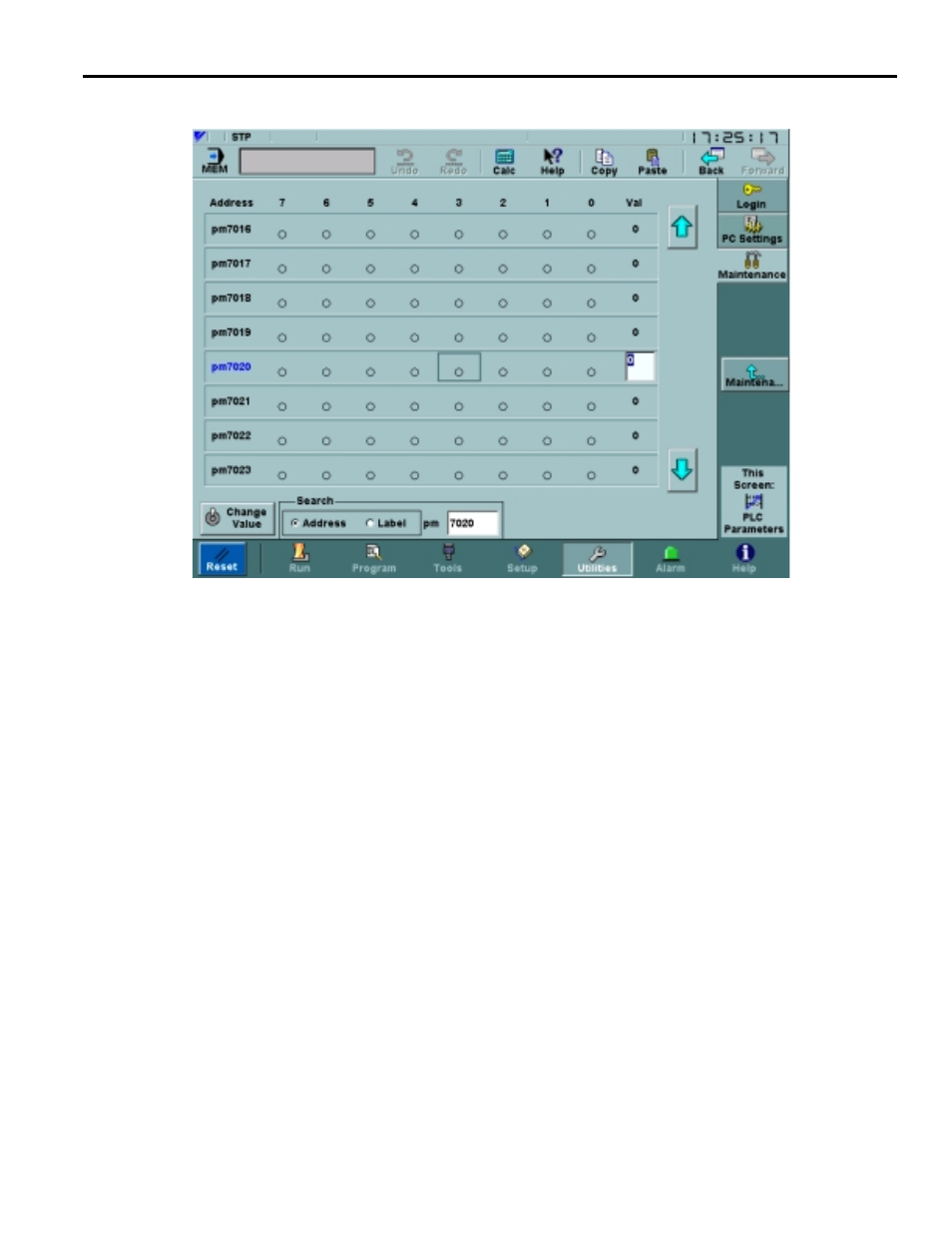

Fig. 3.7.17.1
The PLC Parameters Screen
The Maintenance: PLC Parameters screen, shown in Figure 3.7.17.1 on page 89, is used to view
and set PLC parameters. This screen cannot be accessed unless the user level is Machinist or
higher.
The appearance and operation of this screen is identical to that of the MTB Install screen; only the
shown parameters are different. Therefore, for specifics on how to use this screen, see “MTB
Install Screen” on page 88.
Change Value may or may not be enabled, depending upon user level and if the Enable Parame-
ter Changes switch on the Utilities: Login screen is checked.
