Areca 24/4 Internal/External Port Pcie 3.0 12 Gb/s SAS/SATA Raid Controller 2Gb Cache User Manual
Page 132
ARCHTTP PROXY SERVER INSTALLATION
132
• “Complete” to install ArcHTTP and CLI utility at once, check the
first box.
• “Custom” to install special components and change the program
directory. When this “
Custom” check box is checked, go to the
Custom Setup screen.

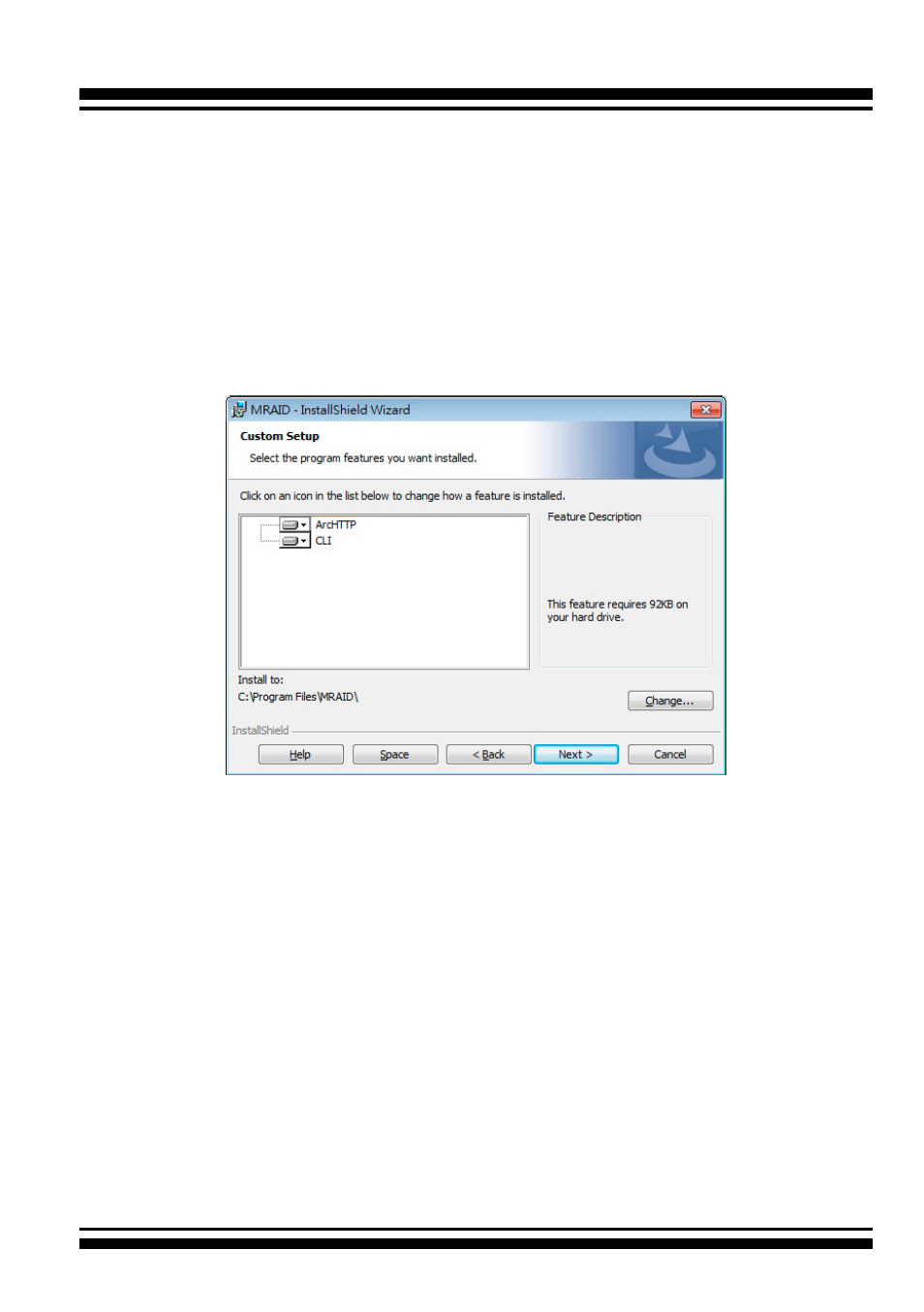

6-1. On the Custom Setup screen, click on an icon to install
special components and click on the “
Next
” button to
continue.
• ArcHTTP
has to be installed for GUI RAID console (McRAID
storage manager) to run. It also runs as a service or daemon in
the background that allows capturing of events for mail and
SNMP traps notification. Refer to the chapter 3 ArcHTTP Con-
figuration on ARC-1883 user manual
, for details about the mail
and SNMP traps configuration.
• CLI (Command Line Interface)
provides the functionality
available in MRAID storage manager through a Command Line
Interface. You can set up and manage RAID storage inline. CLI
performs many tasks at the command line. You can download
CLI manual from Areca website.
