APPENDIX
224
D-3-2 Using Onboard NIC Installation
By using the built-in LAN port on the RAID controller- RAID con-
troller using built-in LAN interface. You can use the browser-based
manager or CLI SNMP configuration to setup the firmware-based

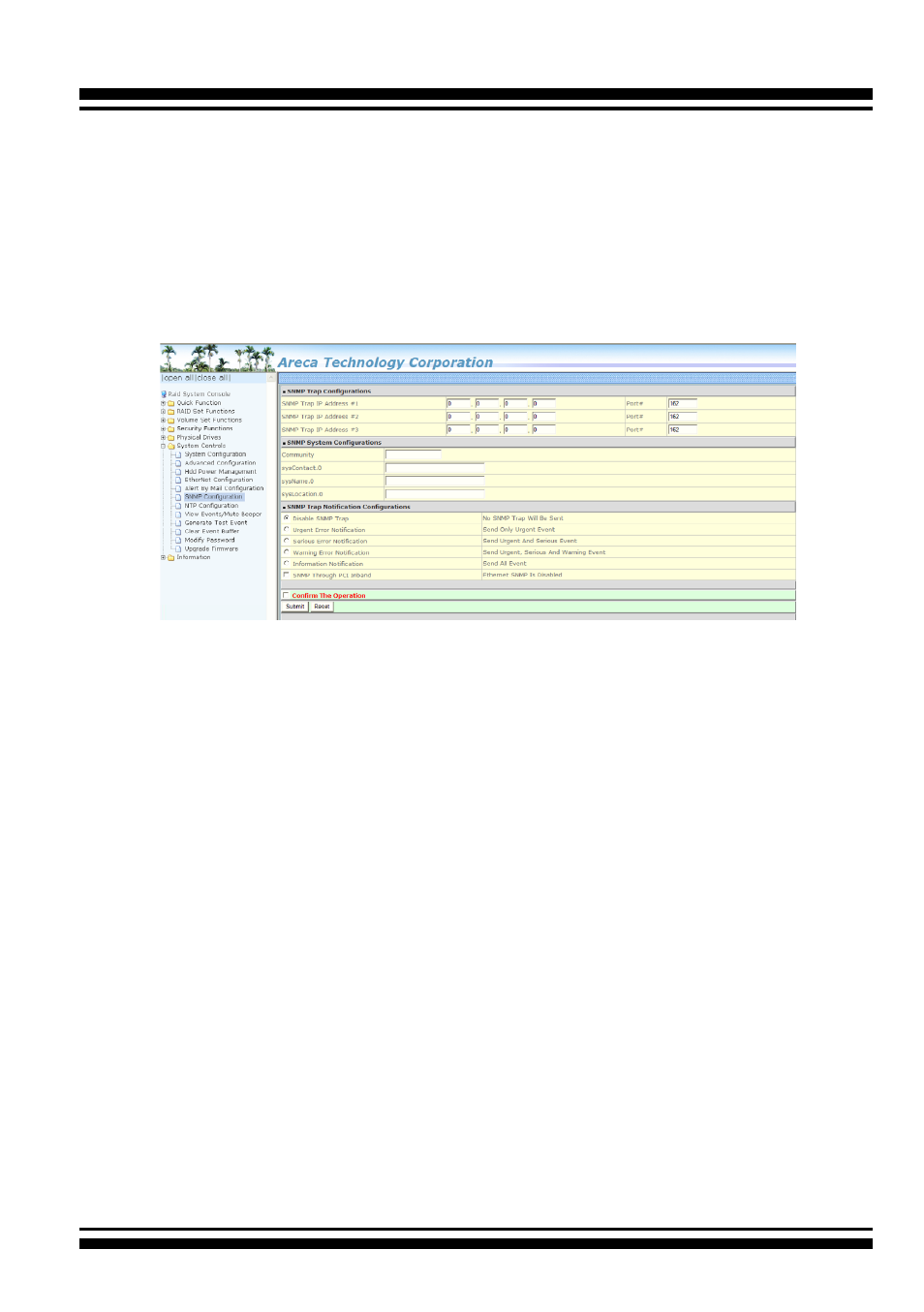

SNMP configuration. The following screen is the firmware-embed
-
ded SNMP configuration setup screen using browser-based man
-
ager:
To launch the above browser-based RAID controller SNMP func-
tion, click on the “System Controls” link. The “System Controls”
menu will show available items. Select the “SNMP Configuration”
item. The firmware-embedded SNMP agent manager monitors
all system events and the SNMP function becomes functional
with no agent software required. The following article describes a
best practice methodology for setting this up in the “SNMP Traps
Configurations”.
1.
SNMP Trap Configurations
Enter the SNMP Trap IP Address.
2.
SNMP System Configurations
Community name acts as a password to screen accesses to
the SNMP agent of a particular network device. Type in the
community names of the SNMP agent. Before access is granted
to a request station, this station must incorporate a valid com-
munity name into its request; otherwise, the SNMP agent will
deny access to the system. Most network devices use “public”
as default of their community names. This value is case sensi-
tive. The system Contact, Name and Location that will be
shown in the outgoing SNMP trap.
