WEB BROWSER-BASED CONFIGURATION
162
6.6.4 Modify Volume Set
To modify a volume set from a RAID set:
1. Click on the “Modify Volume Set” link.
2. Click on the volume set check box from the list that you wish
to modify. Click on the “Submit” button. The following screen ap-
pears. Use this option to modify the volume set configuration. To
modify volume set attributes, move the cursor bar to the volume
set attribute menu on “Enter The Volume Attribute” screen and
then click on the attribute to modify the value. After you complete
the modification, tick on the “Confirm The Operation” check box
and click on the “Submit” button to complete the action.

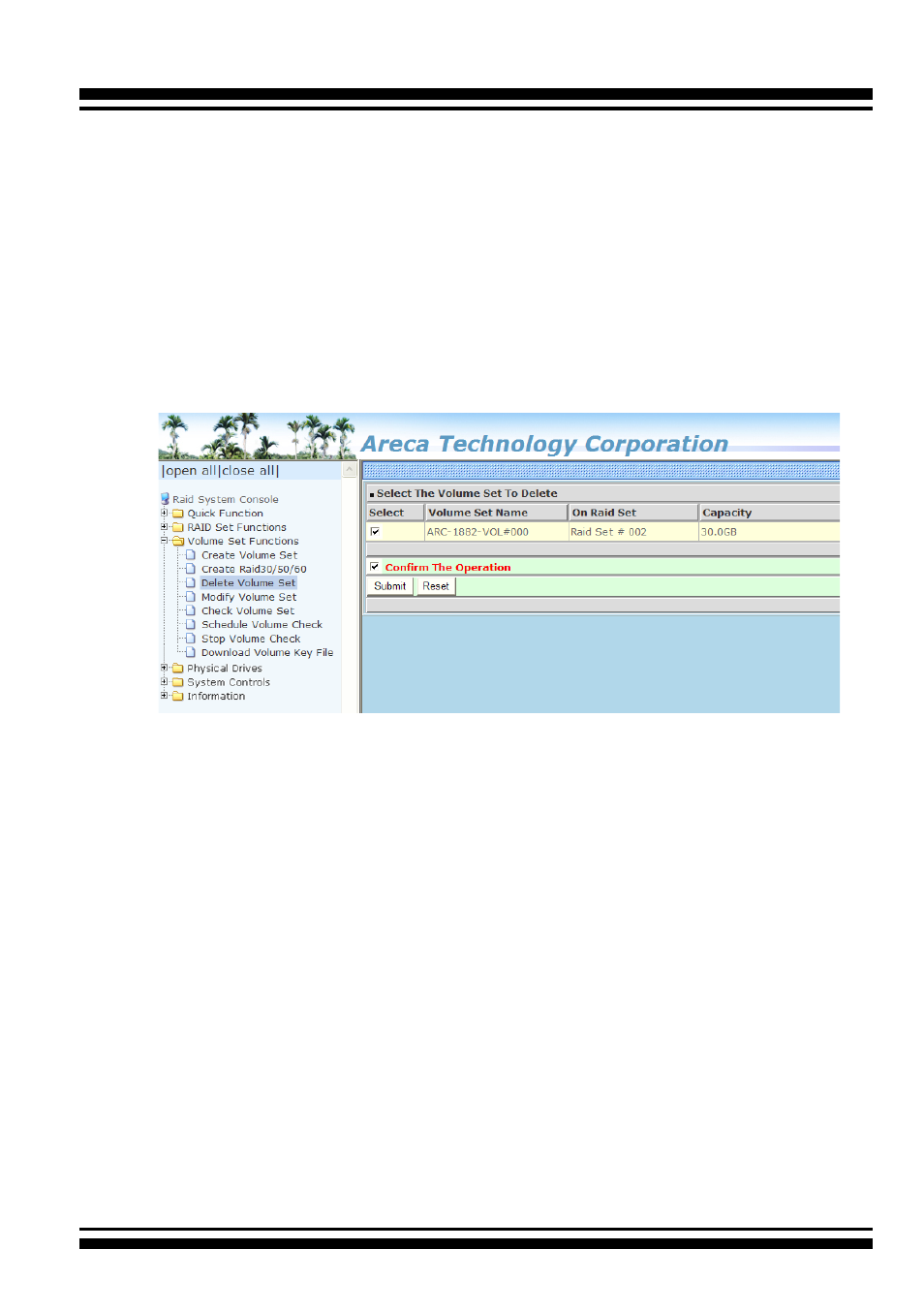

6.6.3 Delete Volume Set
To delete a volume from RAID set, move the cursor bar to the
main menu and click on the “Delete Volume Set” link. The “Se-
lect The Raid Set To Delete” screen will show all RAID set num-
bers. Click on a RAID set number and the “Confirm The Opera
-
tion” check box and then click on the “Submit” button to show all
volume set items in the selected RAID set. Click on a volume set
number and the “Confirm The Operation” check box and then click
on the “Submit” button to delete the volume set.
