HARDWARE INSTALLATION

20

Connector

Type

Description

1. (J1)

Manufacture Purpose Port

12-pin header

2. (J2)

Flash-based/Battery Backup Module Connector

14-pin box header

3. (J3)

I

2

C/LCD Connector

7-pin header

4. (J4)

Global Fault/Activity LED

4-pin header

5. (J5)

Individual Activity (HDD) LED Header

4-pin header

6. (J6)

Individual Fault LED Header

4-pin header

7. (J7)

Ethernet Port

RJ45

8. (

SCN1)

Mini SAS HD 1-4 Ports (Internal)

SFF-8643

9. (SCN2)

Mini SAS HD 5-8 Ports (Internal)

SFF-8643

Table 2-2, ARC-1883i Connectors

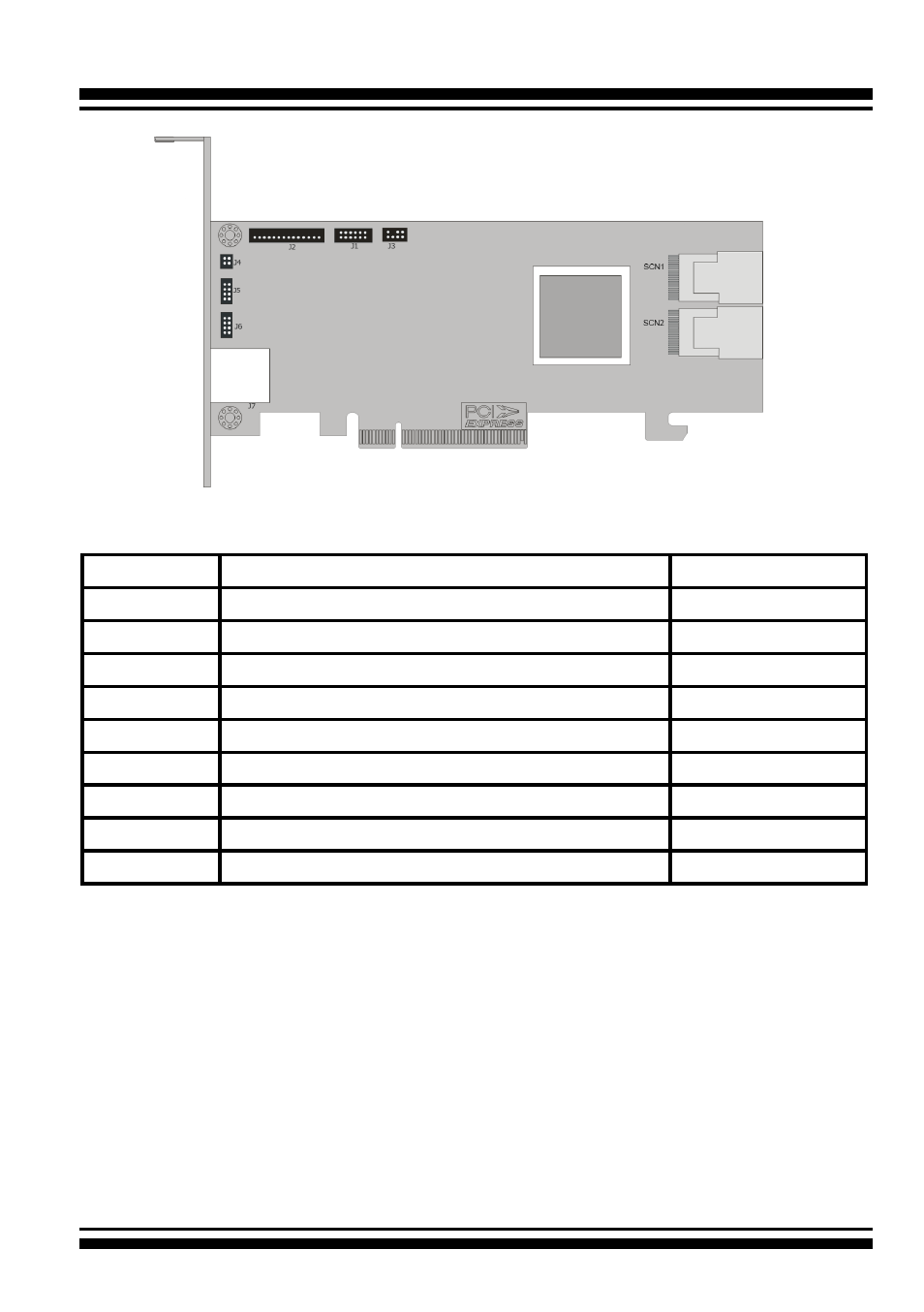

Figure 2-2, ARC-1883i Top View
