HARDWARE INSTALLATION

19

Connector

Type

Description

1. (J1)

Flash-based/Battery Backup Module Connector

14-pin box header

2. (J2)

I

2

C/LCD Connector

7-pin header

3. (J3)

Global Fault/Activity LED

4-pin header

4. (J4)

PCI-E Power Connector

6-pin header

5. (J5)

Manufacture Purpose Port

12-pin header

6. (J6)

Ethernet Port

RJ45

7. (J7)

Individaul Fault LED Header

24-pin header

8. (COM1)

RS232 Port for CLI to configure the expander

functions on the RAID controller (*1)

RJ11 connector

9. (CN1)

Mini SAS HD 25-28 Ports (External)

SFF-8644

10. (SCN1)

Mini SAS HD 1-8 Ports (Internal)

SFF-8643

11. (SCN2)

Mini SAS HD 9-16 Ports (Internal)

SFF-8643

12. (SCN3)

Mini SAS HD 17-24 Ports (Internal)

SFF-8643

Table 2-1, ARC-1883ix-12/16/24 Connectors

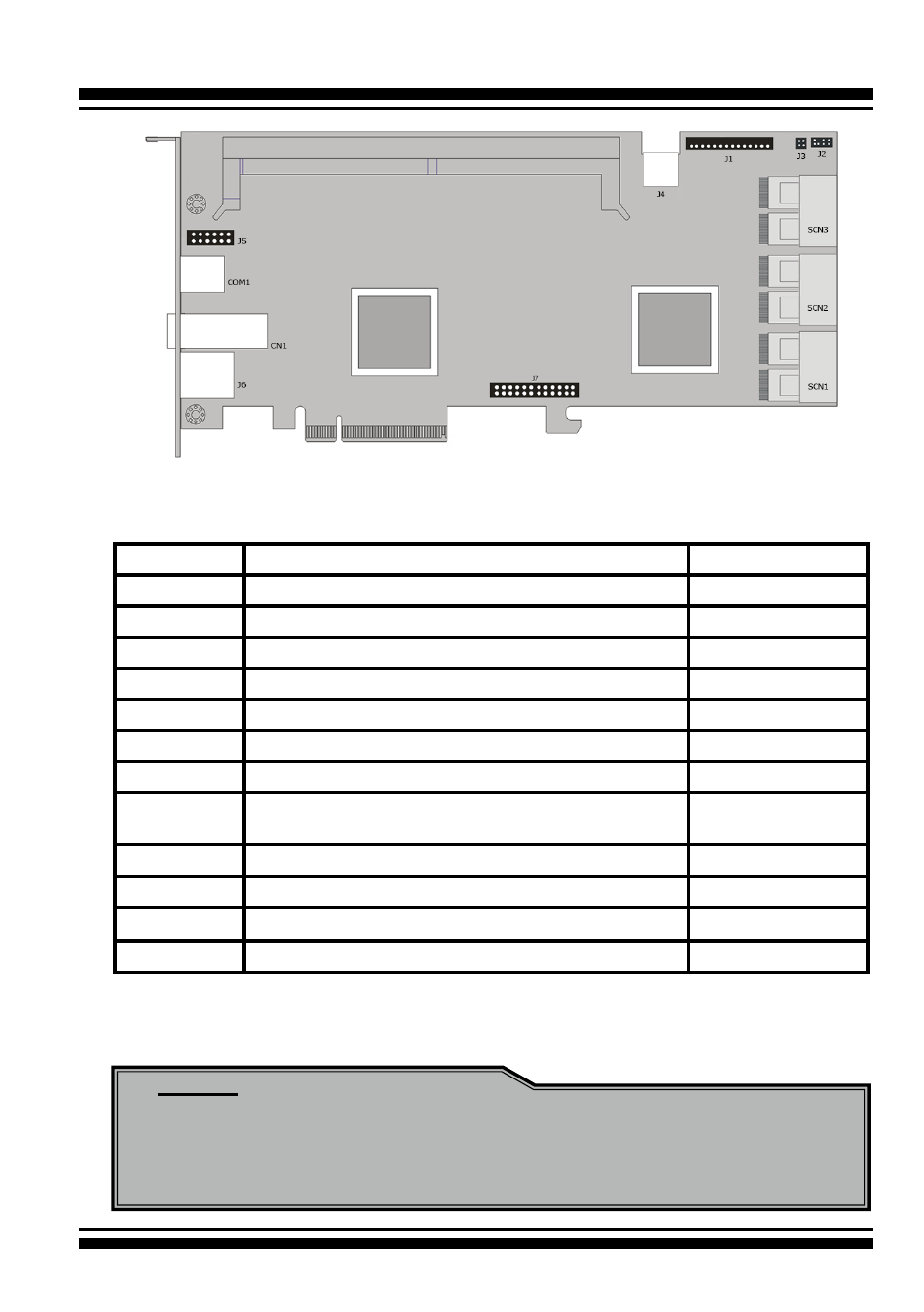

Figure 2-1, ARC-1883ix-12/16/24 Top View

Note:

You can download the ARC1882ix_1883ix Expander-CLI.PDF

manual from “https://www.areca.com.tw/support/downloads.

html” to view and set expander configuration.
