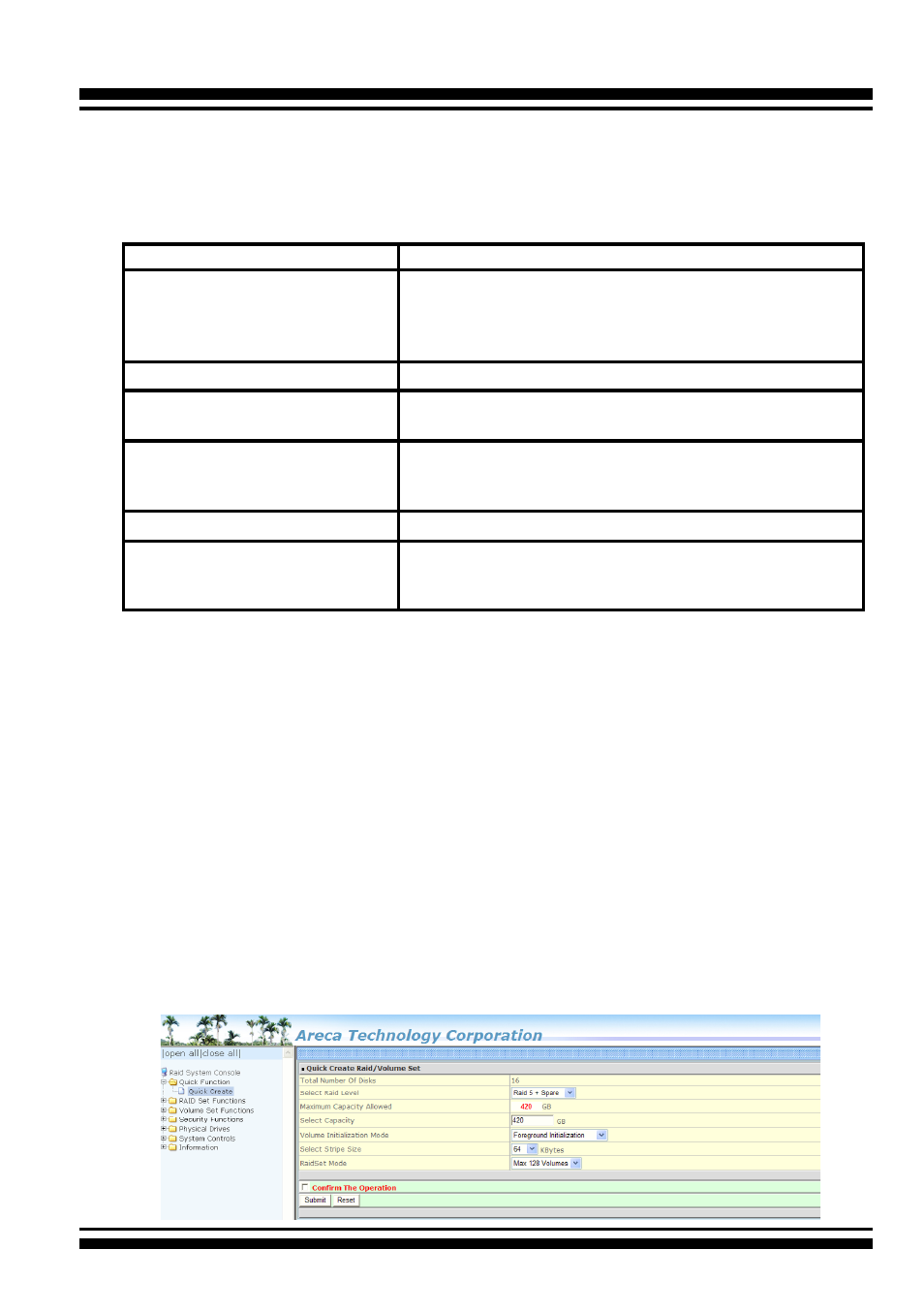

WEB BROWSER-BASED CONFIGURATION
148
6.3 Main Menu
The main menu shows all available functions, accessible by clicking
on the appropriate link.
Individual Category
Description
Quick Function
Create a default configuration, which is based
on the number of physical disks installed; it can
modify the volume set Capacity, Raid Level, and
Stripe Size.
Raid Set Functions
Create a customized RAID set.
Volume Set Functions
Create customized volume sets and modify the
existed volume sets parameter.
Physical Drives
Create pass through disks and modify the existing
pass through drives parameters. Also provides the
function to identify disk drives (blinking fault LED).
System Controls
Setting the RAID system configuration.
Information
Viewing the controller information. The Raid Set
Hierarchy can be viewed through the “Raid Set
Hierarchy” item.
6.4 Quick Function
The Quick Create option configures the arrays with just a few
steps.
Although drives of different sizes may be used in the array, Quick
Create will only operate upon drives of the same physical size.The
number of physical drives in the SAS RAID controller determines
the Raid Levels that can be implemented with the RAID set. You
can create a RAID set associated with exactly one volume set. The
user can change the Raid Level, Capacity, Initialization Mode, and
Stripe Size. A hot spare option is also created, depending on the
exist configuration. Tick on the “Confirm The Operation” check box
and click on the “Submit” button in the “Quick Create” screen, the
RAID set and volume set will start to initialize.
