BIOS CONFIGURATION
98

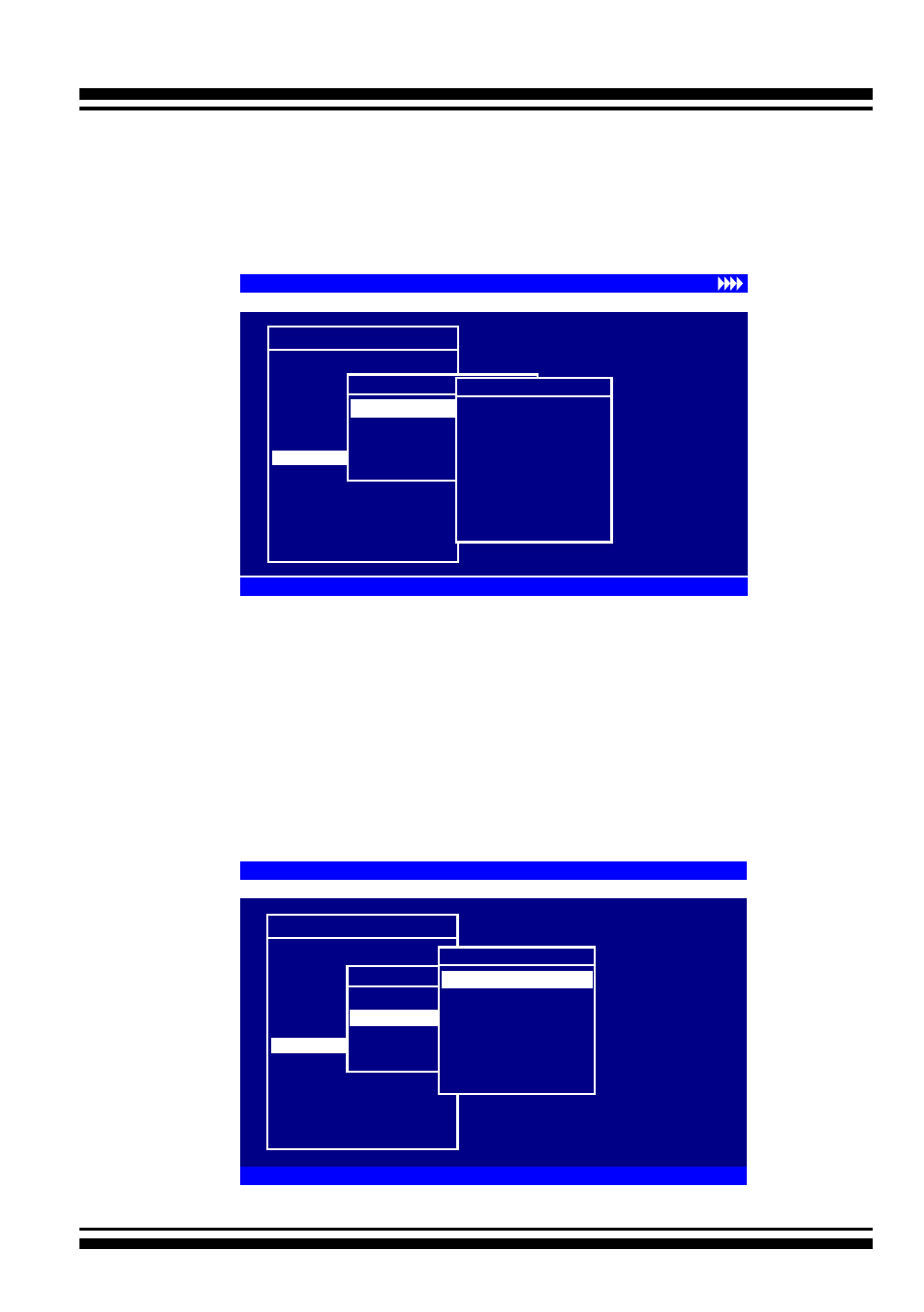

Main Menu
Quick Volume/Raid Setup
Raid Set Function
Volume Set Function
Physical Drives
Raid System Function
More System Functions
Hdd Power Management
Ethernet Configuration
Alert By Mail Config
View System Events
Clear Event Buffer
Hardware Monitor
System information
Hdd Power Management
I/O Port Addr : 28000000h, F2(Tab): Select Controller, F10: Reboot System
ArrowKey Or AZ:Move Cursor, Enter: Select, ESC: Escape, L:Line Draw, X: Redraw
Areca Technology Corporation RAID Controller
Hdd Power Management
Stagger Power On
Time To Low Power Idle
Time To Low RPM Mode
Time To Spin Down Hdd
Stagger Power On
Stagger Power On
0.4
0.7
1.0
1.5
.
.
6.0
Main Menu
Quick Volume/Raid Setup
Raid Set Function
Volume Set Function
Physical Drives
Raid System Function
More System Functions
Hdd Power Management
Ethernet Configuration
Alert By Mail Config
View System Events
Clear Event Buffer
Hardware Monitor
System information
Hdd Power Management
I/O Port Addr : 28000000h, F2(Tab): Select Controller, F10: Reboot System
ArrowKey Or AZ:Move Cursor, Enter: Select, ESC: Escape, L:Line Draw, X: Redraw
Areca Technology Corporation RAID Controller
Hdd Power Management
Stagger Power On
Time To Low Power Idle
Time To Low RPM Mode
Time To Spin Down Hdd
Time To Low Power Idle
Low Power Idle
Disabled
2
3
4
5
6
7
Disabled
3.7.7.2 Time To Hdd Low Power Idle
This option delivers lower power consumption by automatically
unloading recording heads during the setting idle time. The val-
ues can be selected “Disabled” or within the range 2 to 7 min-
utes.
Areca RAID controller has included the option for customer to
select the disk drives sequentially stagger power up value. The
values can be selected from 0.4 to 6 seconds per step which
powers up one group of drives.
