Areca 24/4 Internal/External Port Pcie 3.0 12 Gb/s SAS/SATA Raid Controller 2Gb Cache User Manual
Page 134
ARCHTTP PROXY SERVER INSTALLATION
134

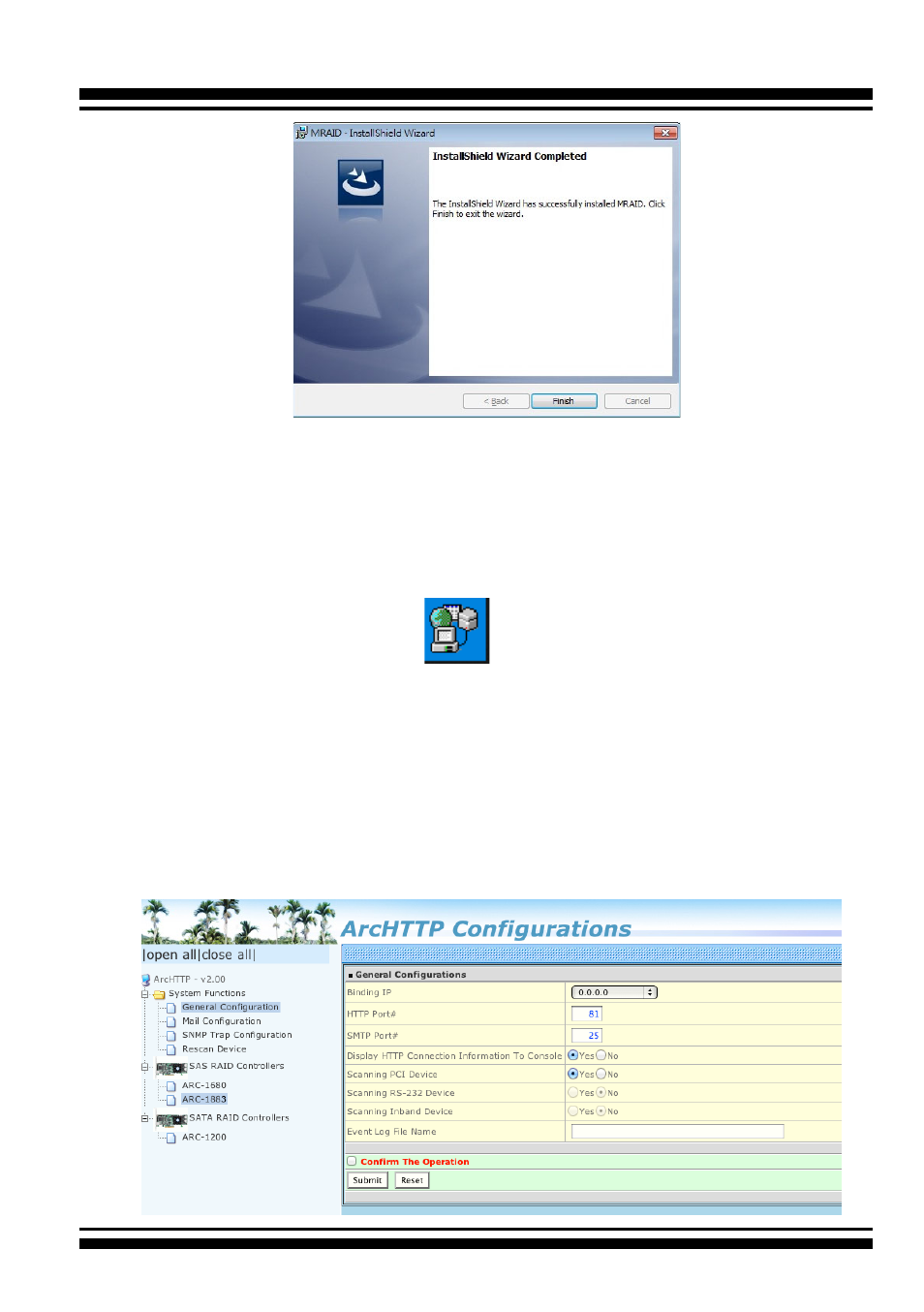

10. Once ArcHTTP and CLI have been installed, the ArcHTTP
background task automatically starts each time when you
start your computer. There is one MRAID icon showing on
your “Programs” folder. This icon is for you to start up the
McRAID storage manager (by ArcHTTP) and CLI utility.
The “
ArcHTTP Taskbar
”
icon shows on the button of sys-
tem tray by default. Double click “ArcHTTP Taskbar” to launch the
ArcHTTP Configuration screen. It automatically scans the local
-
host RAID units on the system and creates an individual RAID
storage icon located in the left column screen. When you double
click on a selected element the left column screen, child element
belonged parent element appears. Locate “ARC-1883 Web Man
-
agement” and launch the McRAID storage manager.
