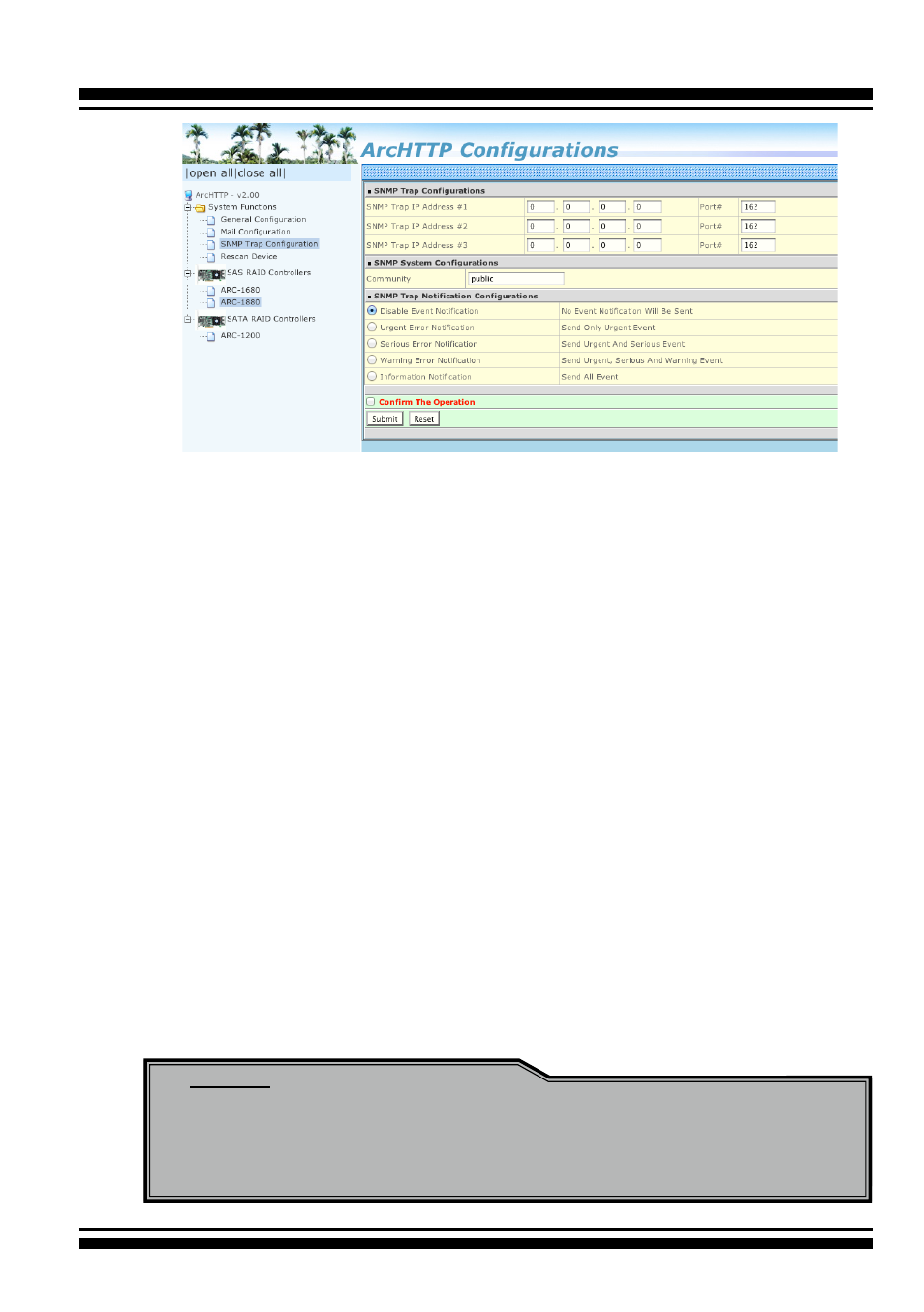

ARCHTTP PROXY SERVER INSTALLATION
142
1. SNMP Trap Configurations
Enter the SNMP trap IP address.
2. SNMP System Configurations
Community name acts as a password to screen accesses to
the SNMP agent of a particular network device. Type the
community names of the SNMP agent in this field. Most
network devices use “public” as default of their community
names. This value is case-sensitive.
3. SNMP Trap Notification Configurations
Event Notification Table refers to Appendix E.
Before the client
side SNMP manager application accepts the RAID storage
traps, it is necessary to integrate the MIB into the manage-
ment application’s database of events and status indicator
codes. Ensure the compilation process successfully integrates
the contents of the areca_sas.mib file into the traps database.
Please refer to
Appendix D
of
“
SNMP Operation & Installation”
.
The MIBs file resides at: <CD-ROM>\packages\SNMP_MIBs on
the software CD.
Note:
After you confirm and submit configurations, you can use
"Generate Test Event" feature to make sure these settings
are correct.
