6. Repeat steps 3 to 5 to create additional volume sets.
7. The initialization percentage of volume set will be displayed at
the button line.

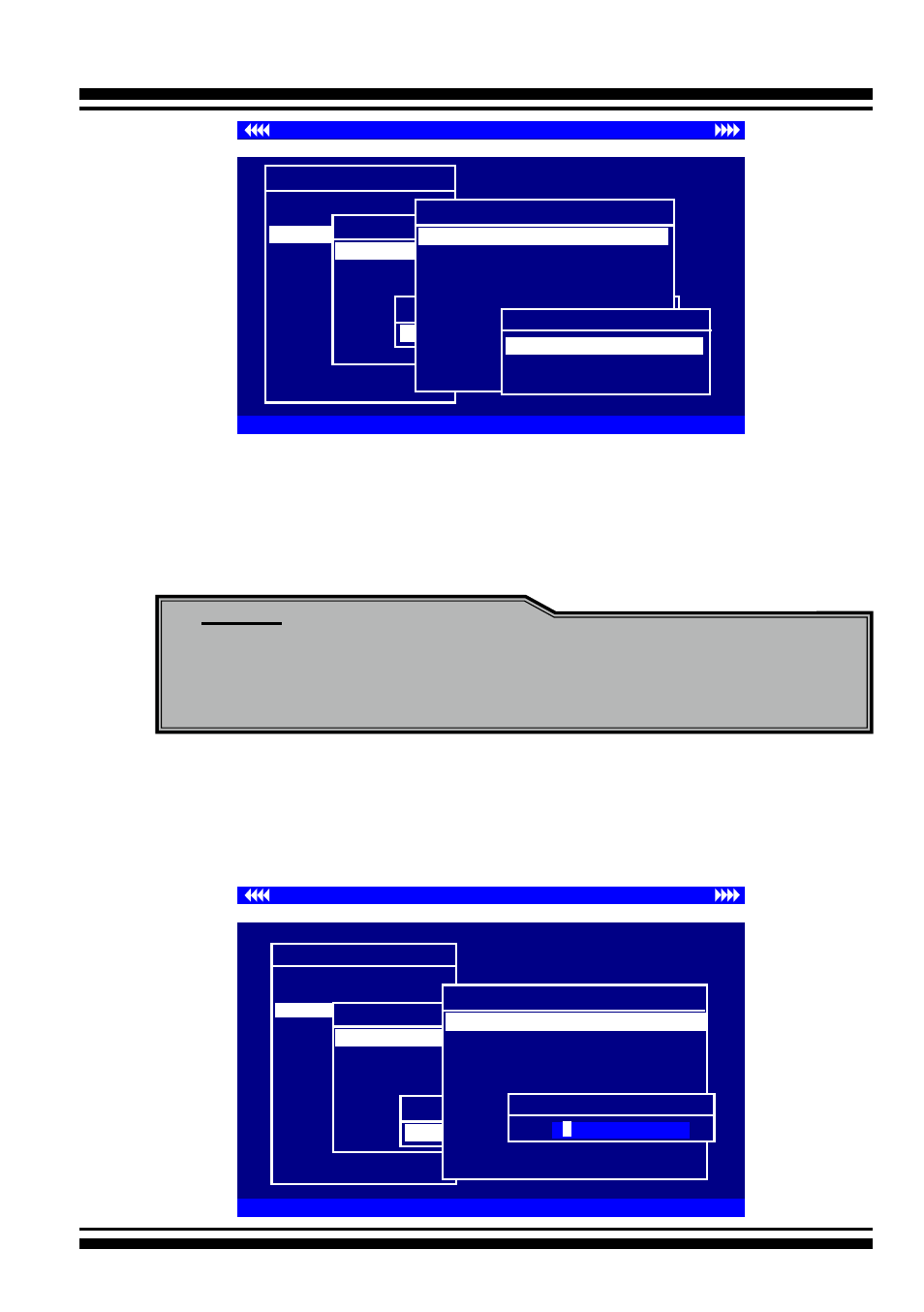

I/O Port Addr : 28000000h, F2(Tab): Select Controller, F10: Reboot System
ArrowKey Or AZ:Move Cursor, Enter: Select, ESC: Escape, L:Line Draw, X: Redraw
Areca Technology Corporation RAID Controller
Main Menu
Quick Volume/Raid Setup
Raid Set Function
Volume Set Function
Physical Drives
Raid System Function
More System Functions
Hdd Power Management
Ethernet Configuration
Alert By Mail Config
View System Events
Clear Event Buffer
Hardware Monitor
System information
Volume Set Function
Volume Set Functions
Creat Volume Set
Create Raid30/50/60
Delete Volume Set
Modify Volume Set
Check Volume Set
Stop Volume Check
Display Volume Info.
Create Volume Set
Create Volume From Raid Set
Raid Set # 00
Volume Creation
Raid Level : 6
Capacity : 5039.9GB
Stripe Size : 64K
SCSI Channel : 0
SCSI ID : 0
SCSI LUN : 0
Cache Mode : Write Back
Write Protect : Disabled
Tag Queuing : Enabled
Volume Name : Volume Set # 000
Initialization Mode
Background (Instant Available)
No Init (To Rescue Volume)
Foreground (Faster Completion)
I/O Port Addr : 28000000h, F2(Tab): Select Controller, F10: Reboot System
ArrowKey Or AZ:Move Cursor, Enter: Select, ESC: Escape, L:Line Draw, X: Redraw
Areca Technology Corporation RAID Controller
Main Menu
Quick Volume/Raid Setup
Raid Set Function
Volume Set Function
Physical Drives
Raid System Function
More System Functions
Hdd Power Management
Ethernet Configuration
Alert By Mail Config
View System Events
Clear Event Buffer
Hardware Monitor
System information
Volume Set Function
Volume Set Functions
Creat Volume Set
Create Raid30/50/60
Delete Volume Set
Modify Volume Set
Check Volume Set
Stop Volume Check
Display Volume Info.
Create Volume Set
Create Volume From Raid Set
Raid Set # 00
Volume Creation
Raid Level : 6
Capacity : 5039.9GB
Stripe Size : 64K
SCSI Channel : 0
SCSI ID : 0
SCSI LUN : 0
Cache Mode : Write Back
Write Protect : Disabled
Tag Queuing : Enabled
Volume Name : ARC-1883-VOL# 000
Edit The Volume Name
RC-1883-VOL# 00
A
Note:
Controller starts to initialize the volume in two conditions
1. Stay in controller bios manager or
2. Boot into OS and the controller driver loaded.
• Volume Name
The default volume name will always appear as ARC-1883-
VOL #. You can rename the volume set providing it does not
exceed the 15 characters limit.
