3.7.2.6 Create Hot Spare
When you choose the “Create Hot Spare” option in the “Raid Set
Function”, all unused physical devices connected to the current
controller will result in the screen.
Select the target disk by clicking on the appropriate check box.
Press the
Enter
key to select a disk drive and press
Yes
in the
“Create Hot Spare” to designate it as a hot spare.
The “Create Hot Spare” gives you the ability to define a global
or dedicated hot spare. Unlike “Global Hot Spare” which can be
used with any RAID sets, “Dedicated Hot Spare” can only be
used with a specific RAID set or Enclosure. When a disk drive
fails in the RAID set or enclosure with a dedicated hot spare is
pre-set, data on the disk drive is rebuild automatically on the
dedicated hot spare disk.

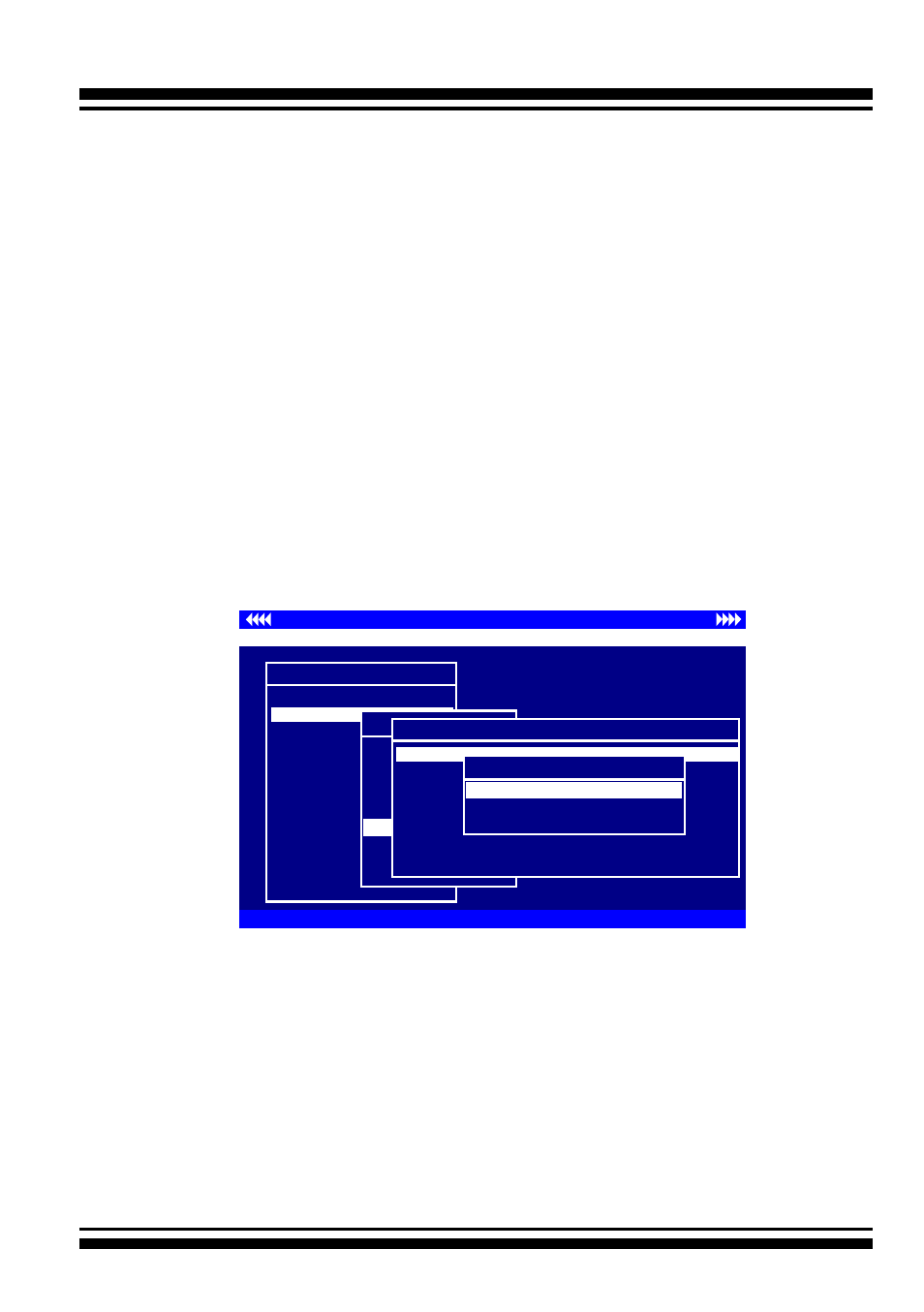

I/O Port Addr : 28000000h, F2(Tab): Select Controller, F10: Reboot System
ArrowKey Or AZ:Move Cursor, Enter: Select, ESC: Escape, L:Line Draw, X: Redraw
Areca Technology Corporation RAID Controller
Main Menu
Quick Volume/Raid Setup
Raid Set Function
Volume Set Function
Physical Drives
Raid System Function
More System Functions
Hdd Power Management
Ethernet Configuration
Alert By Mail Config
View System Events
Clear Event Buffer
Hardware Monitor
System information
Raid Set Function
Raid Set Function
Raid Set
Delete Raid Set
Expand Raid Set
Offline Raid Set
Activate Raid Set
Create Hot Spare
Delete Hot Spare
Rescue Raid Set
Raid Set Information
Create Hot Spare
Select Drives For HotSpare
[ ]E#1Solt#02 : 500.1GB : HDS725050KLA360
[ ]E#1Solt#03 : 500.1GB : ST3500630NS
[ ]E#1Solt#04 : 400.1GB : Hitachi HDT725040VLA360
[ ]E#1Solt#05 : 400.1GB : Hitachi HDT725040VLA360
[ ]E#1Solt#06 : 400.1GB : Hitachi HDT725040VLA360
[ ]E#1Solt#07 : 500.1GB : HDS725050KL360
[ ]E#1Solt#08 : 500.1GB : ST3500630NS
[*]E#1Solt#01 : 400.1GB : Hitachi HDT725040VLA360
Select Hot Spare Type
Dedicated To RaidSet
Dedicated To Enclosure
Global
3.7.2.7 Delete Hot Spare
Select the target hot spare disk to delete by clicking on the ap-
propriate check box.
Press the
Enter
key to select a hot spare disk drive, and press
Yes
in the “Delete Hot Spare” screen to delete the hot spare.
