WEB BROWSER-BASED CONFIGURATION
152
6.5.5 Rename Raid Set
The default RAID set name will always appear as “Raid Set #”
when it is first created by the controller. The "Rename Raid Set"
function is for customer to rename the default RAID set name.
To rename a RAID set from a group of RAID sets:
1. Click on the "Rename Raid Set" link.
2. Click on the RAID set check box from the list that you wish to

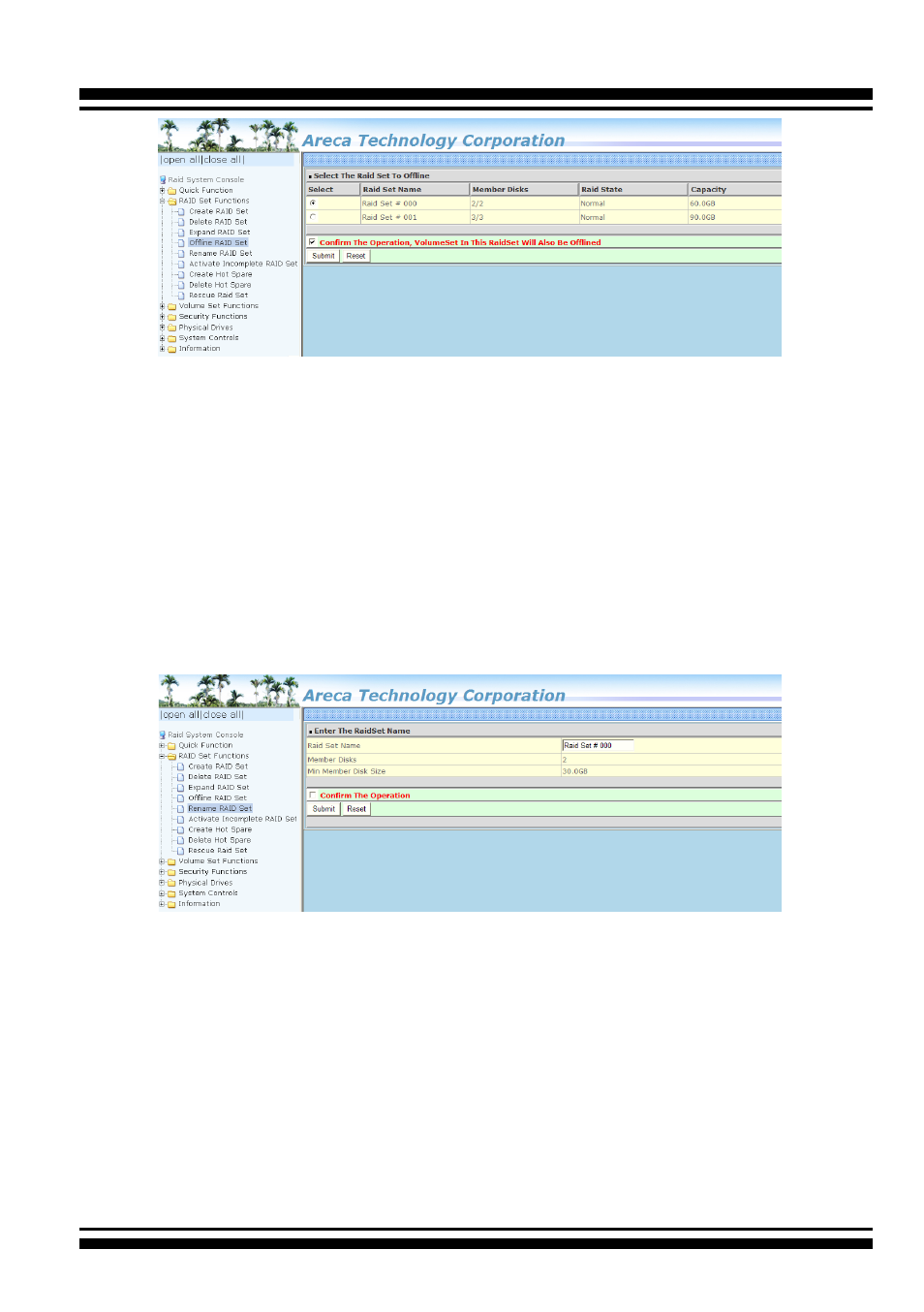

rename. Click on the “Submit” button. The following screen
appears. Use this option to rename the RAID set name.
6.5.6 Activate Incomplete Raid Set
If one of the disk drives is removed in power off state, the RAID
set state will change to “Incomplete State”. If the user wants to
continue to operate the controller without power-off the SAS RAID
controller, the user can use the “Activate Incomplete Raid Set”
option to active the RAID set. After the user completes this func-
tion, the Raid State will change to “Degraded Mode” and start to
work. To activate the incomplete the RAID set, click on the “Acti-
vate Raid Set” link. A “Select The RAID SET To Activate” screen is
displayed showing all RAID sets existing on the current controller.
