HARDWARE INSTALLATION

36

LED

Normal Status

Problem Indication

Fault LED

1. When the fault LED is lit,

there is no disk present.

2. When the fault LED is not

lit, then disk is present

and status is normal.

1. When the fault LED is blinking

(2 times/sec), that disk drive

has failed and should be hot

swapped immediately.

2. When the activity LED is lit and

fault LED is fast blinking (10

times/sec) there is rebuilding

activity on that disk drive.

1. Individual Activity/Fault LED and Global Indicator Con-

nector

Most of the backplane has supported the HDD activity from the

HDD. The 12Gb/s SAS RAID controller also provides the fault

activity for fault LED. Connect the cables for the drive fault LEDs

between the backplane of the cage and the respective connector

on the 12Gb/s SAS RAID controller.

The following table is the fault LED signal behavior.

If the system will use only a single global indicator, attach the

LED to the two pins of the global activity/fault connector. The

global fault pin pair connector is the overall fault signal. This

signal will light up in any disk drive failure.

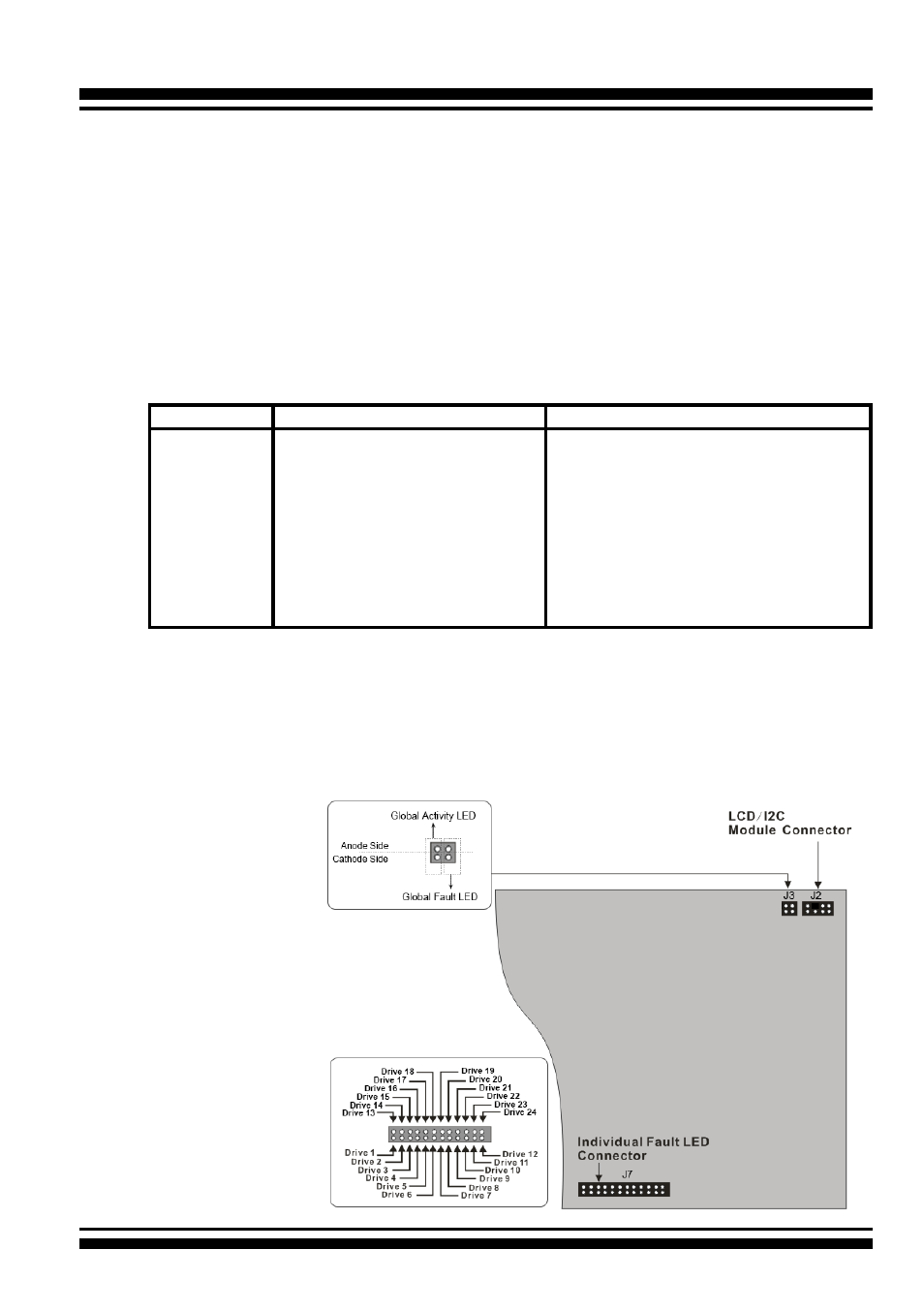

Figure 2-15,

ARC-1883ix-12/16/24

LED Indicator Connector
