WEB BROWSER-BASED CONFIGURATION
174

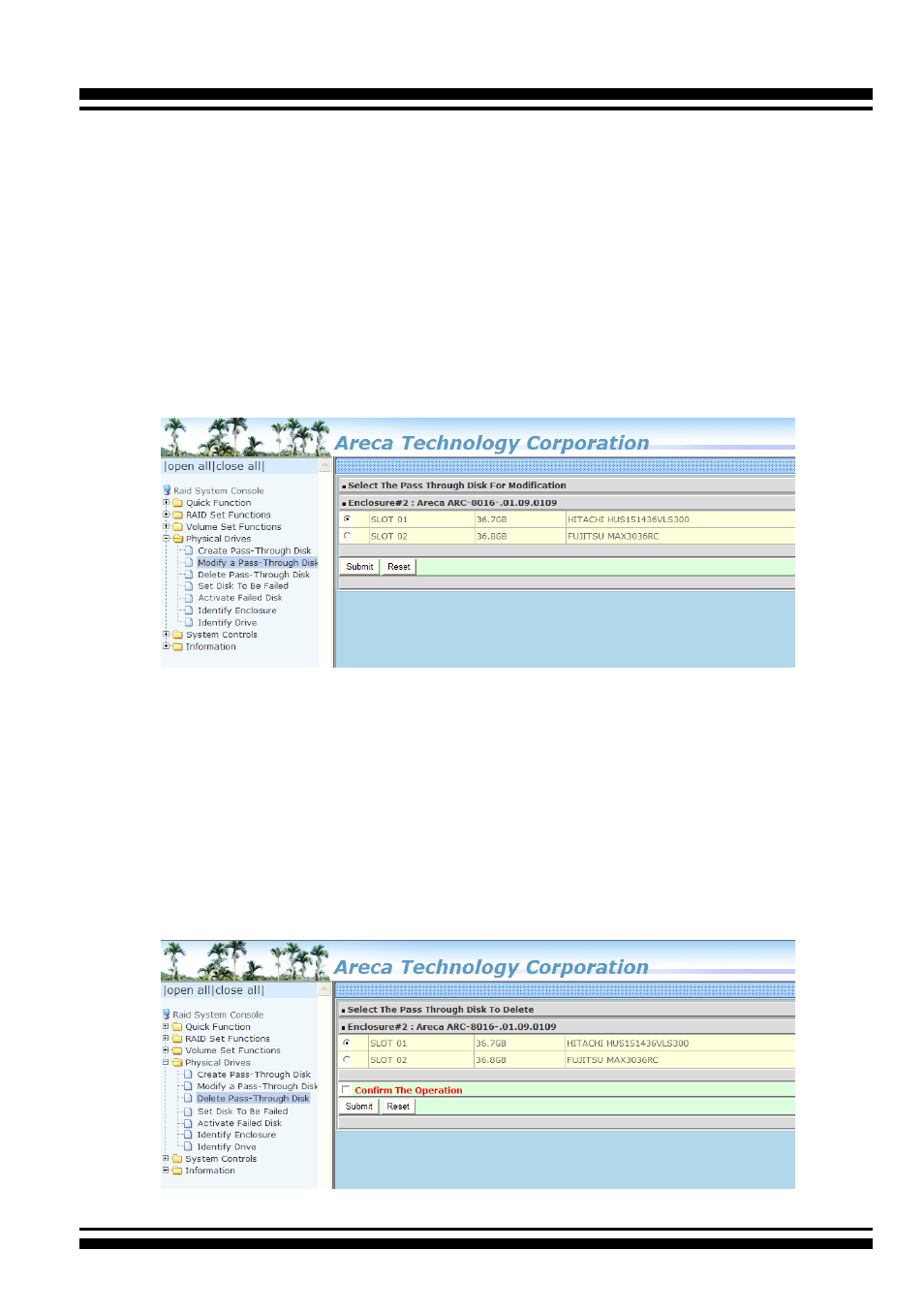

To modify the pass-through drive attribute from the pass-through
drive pool, move the mouse cursor bar and click on the “Modify
Pass-Through” link. The “Select The Pass Through Disk For Modi-
fication” screen appears mark the check box for the pass-through
disk from the pass-through drive pool and click on the “Submit”
button to select drive. When the “Enter Pass-Through Disk Attri-
bute” screen appears, modify the drive attribute values, as you
want. After you complete the selection, mark the check box for
“Confirm The Operation” and click on the “Submit” button to com
-
plete the selection action.
6.8.3 Delete Pass-Through Disk
To delete a pass-through drive from the pass-through drive pool,
move the mouse cursor bar to the main menus and click on the
“Delete Pass Through” link. After you complete the selection,
mark the check box for “Confirm The Operation” and click on the
“Submit” button to complete the delete action.
