3.7.3.5 Check Volume Set
Use this option to verify the correctness of the redundant data in
a volume set. For example, in a system with a dedicated parity
disk drive, a volume set check entails computing the parity of
the data disk drives and comparing those results to the contents
of the dedicated parity disk drive. To check volume set, move
the cursor bar to the “Check Volume Set” item, then press the
Enter
key. The “Volume Set Functions” menu will show all RAID
set number items. Move the cursor bar to an RAID set number
item and then press the
Enter
key to show all volume set items.
Select the volume set to be checked from the list and press
En-
ter key to select it. After completed the selection, the confirma
-
tion screen appears, press
Yes
to start the check.
3.7.3.6 Stop Volume Check
Use this option to stop all of the “Check Volume Set” operations.
3.7.3.7 Display Volume Set Info.
To display volume set information, move the cursor bar to the
desired volume set number and then press the
Enter
key. The
“Volume Set Information” screen will be shown. You can only
view the information of this volume set in this screen, but can
not modify it.

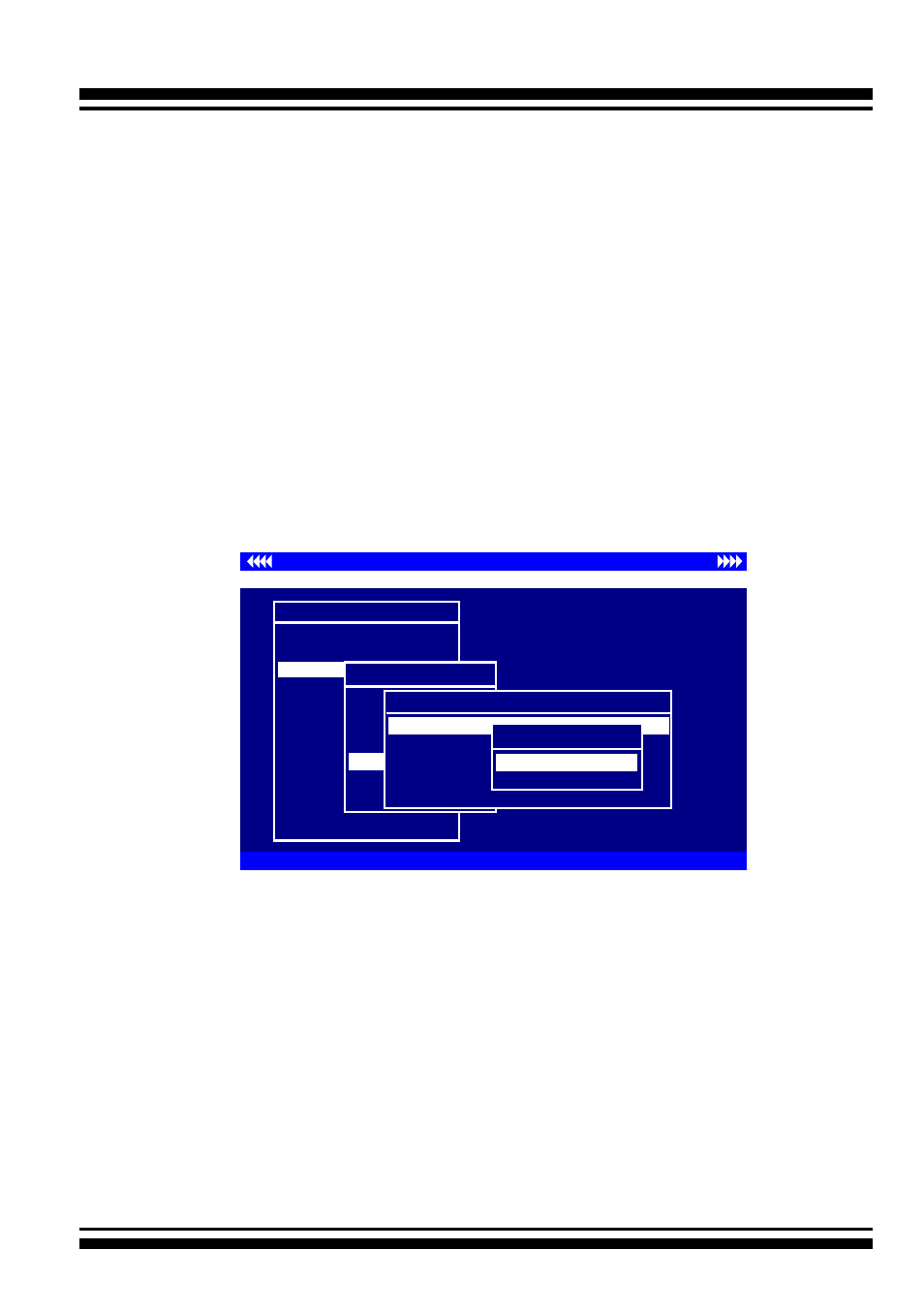

I/O Port Addr : 28000000h, F2(Tab): Select Controller, F10: Reboot System
