HARDWARE INSTALLATION
37

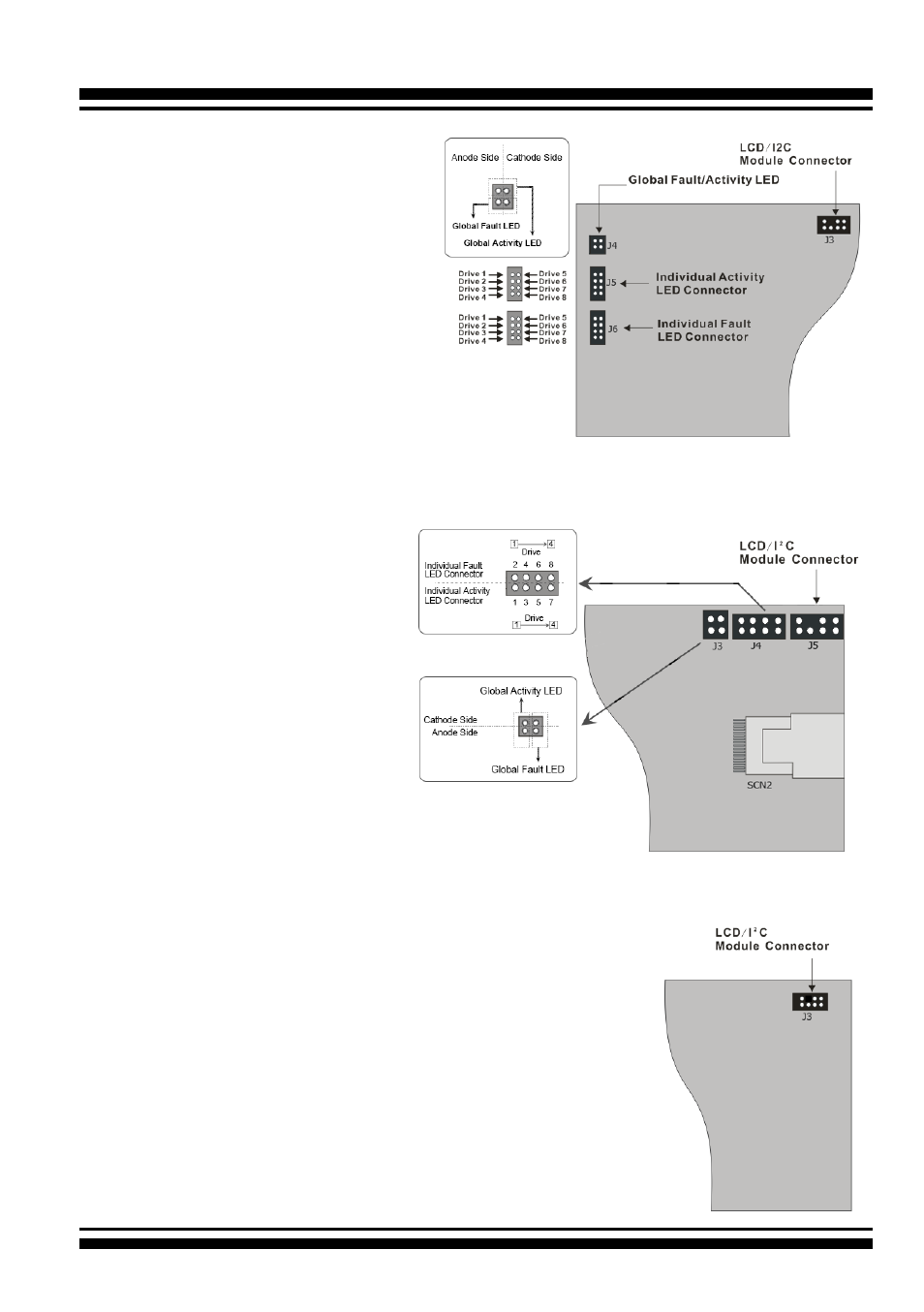

Figure 2-16, ARC-1883i LED
Indicator Connector
Figure 2-18, ARC-1883x LED
Indicator Connector
Figure 2-17, ARC-1883LP LED
Indicator Connector
