Pearl Mini User Guide Configure audio ports for stereo or mono
Configure audio ports for stereo or mono
Using the Admin panel, you can configure ports to function as a stereo pair (left/right) or as separate mono ports.
Pearl Mini
The two combo XLR/TRS audio input ports are configured to work together as a stereo pair by default.
l XLR/TRS 1 = left
l XLR/TRS 2 = right
Configure audio ports as stereo or mono using the Admin panel
1. Login to the Admin panel as admin, see Connect to the Admin panel .
2. Open the configuration page from the Inputs menu:

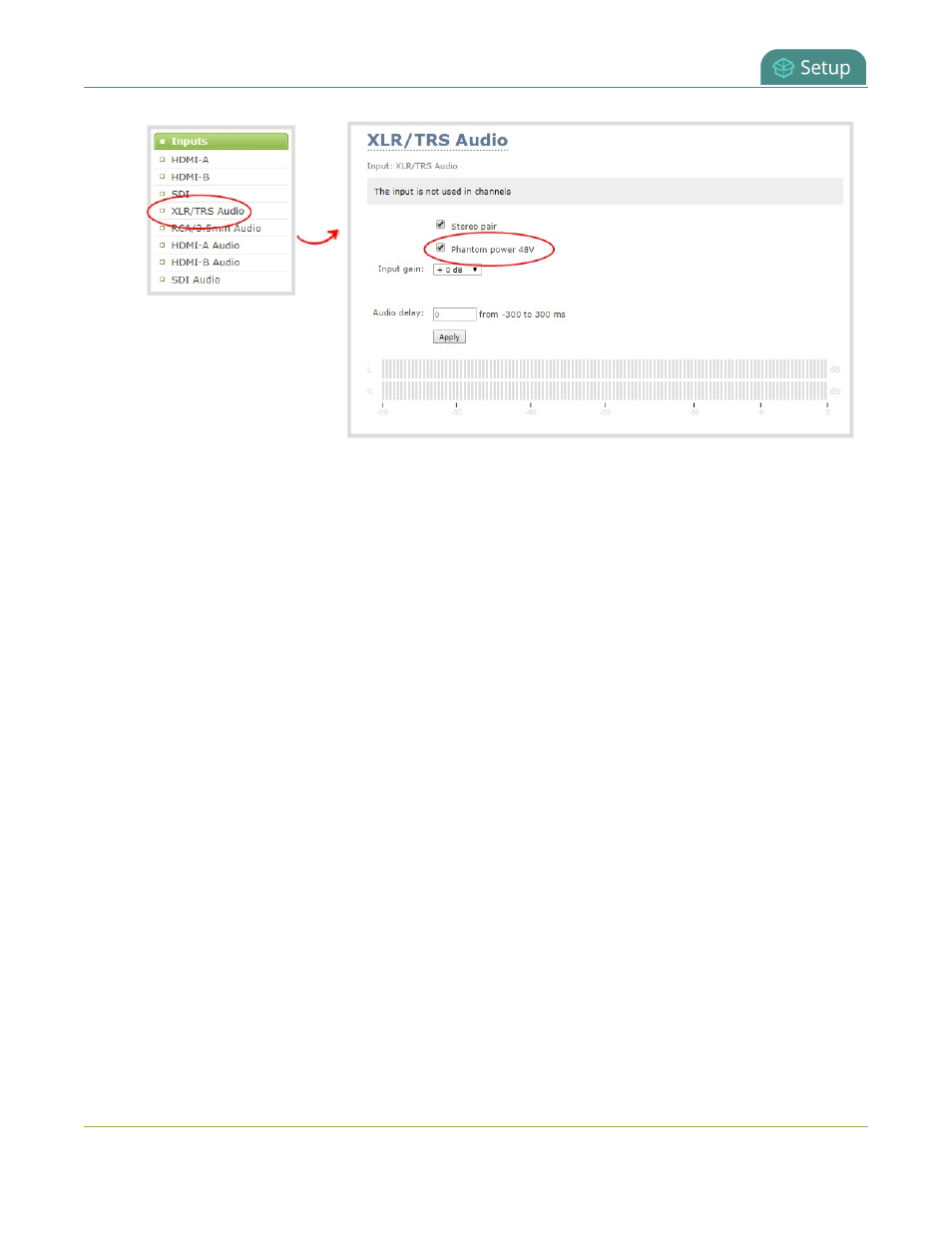

l Pearl Mini: click XLR/TRS Audio. The XLR/TRS Audio configuration page opens.
3. Do one of the following.
a. To make the ports function as a stereo pair, check Stereo pair and click Apply.
b. To make the ports function as separate mono ports, uncheck Stereo pair and click Apply.
