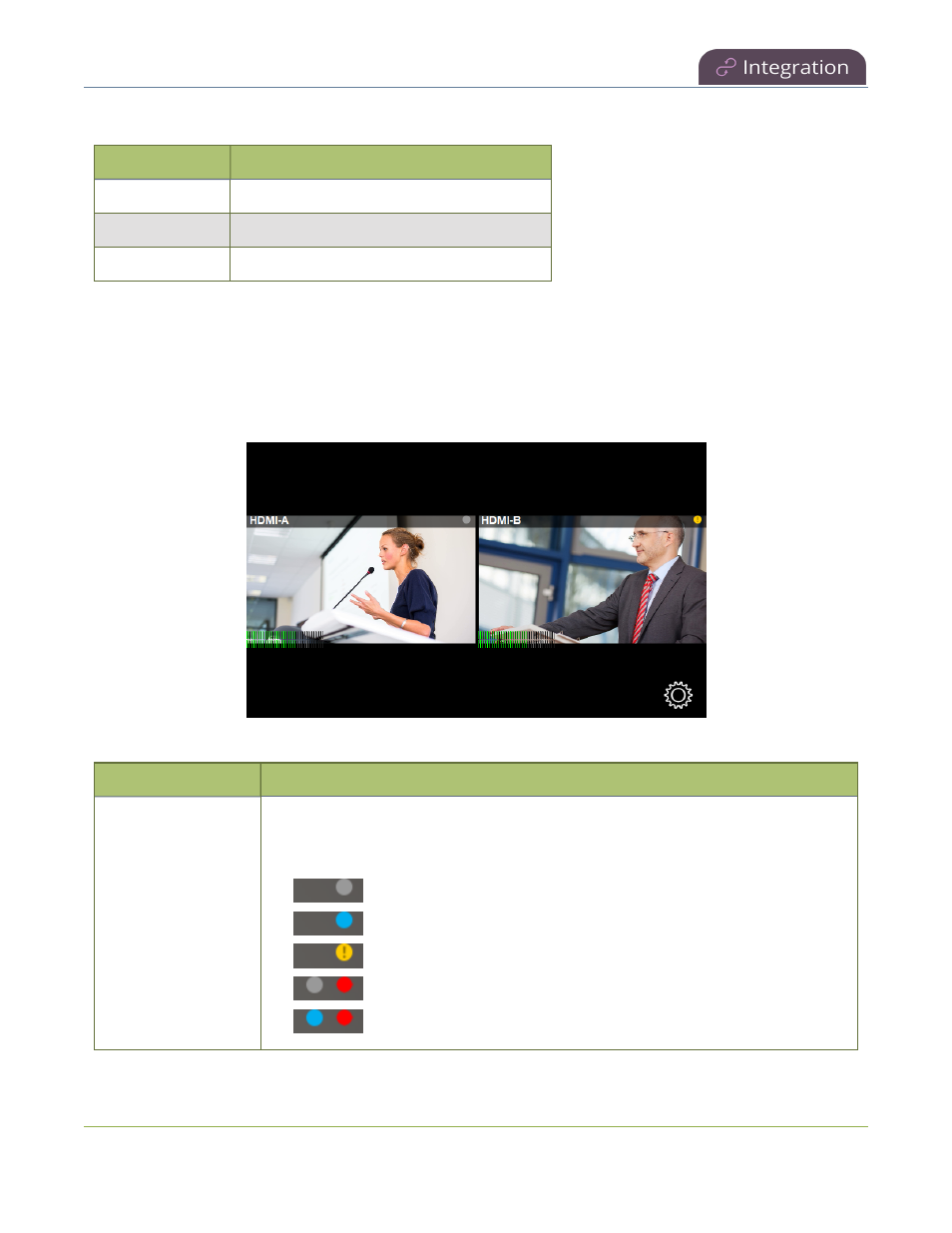

Pearl Mini User Guide Channel monitoring using the touch screen
Table 69 Audio VU meter levels
Color Decibel range
Red 0 to -9 dBFS
Yellow -9 to -18 dBFS
Green -18 dBFS and lower
Channel monitoring using the touch screen
Have complete confidence about what you're capturing, streaming, and recording. All the channels you have
configured are displayed in the grid view.
The grid view opens by default when you turn on Pearl Mini. If necessary, tap the touch screen once to turn it on
and tap again to display the controls.
Table 70 Grid view indicators
Item Description
Streaming and
recording indicators
Streaming (left) and recording (right) indicators appear in the top-right corner for each
channel:
(no dots) Streaming is disabled and recording is stopped.
Streaming is stopped and recording is stopped.
Streaming is started and recording is stopped.
Streaming has an error and recording is stopped.
Streaming is stopped and recording is started.
Streaming is started and recording is started.
