Pearl Mini User Guide About the custom layout editor
Pearl-2 and Pearl Mini - To add or delete a layout, see Configure a custom layout for a channel . When you open

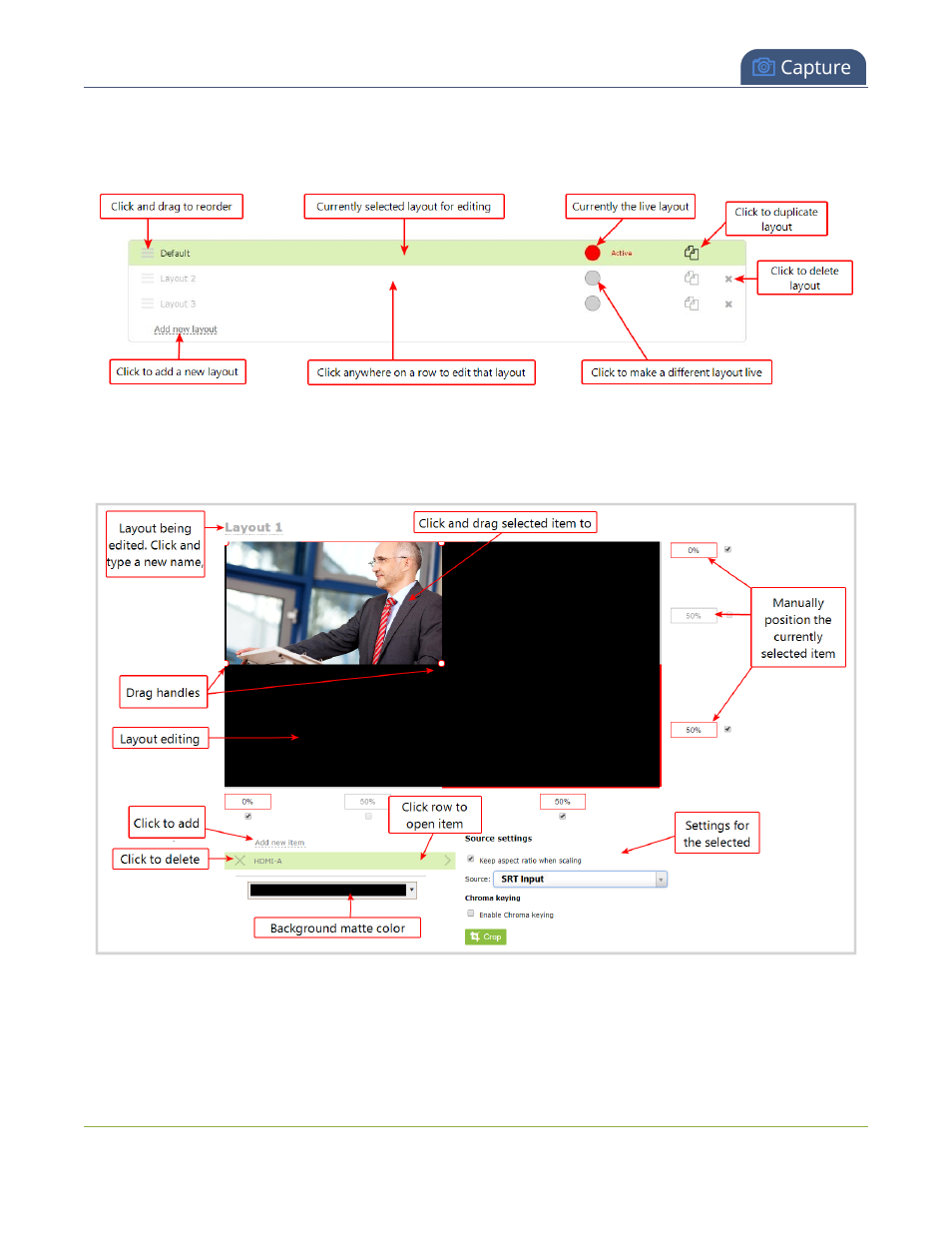

the custom layout editor for a channel, a list of layouts appears at the top. You can create and delete layouts,
duplicate layouts, choose which layout to preview and edit, and select the active live layout for live switching.
Layout editing
The layout editing area is where you can add images, video sources, and text overlays to your layout. You can
also choose a background matte color, crop images and video, and edit video sources.
The main layout area has the same frame size and aspect ratio as the encoding setting of the channel. As you
add items to the layout, they appear in the layout editing area. The currently selected item is presented in full
color. Unselected items appear transparent.
