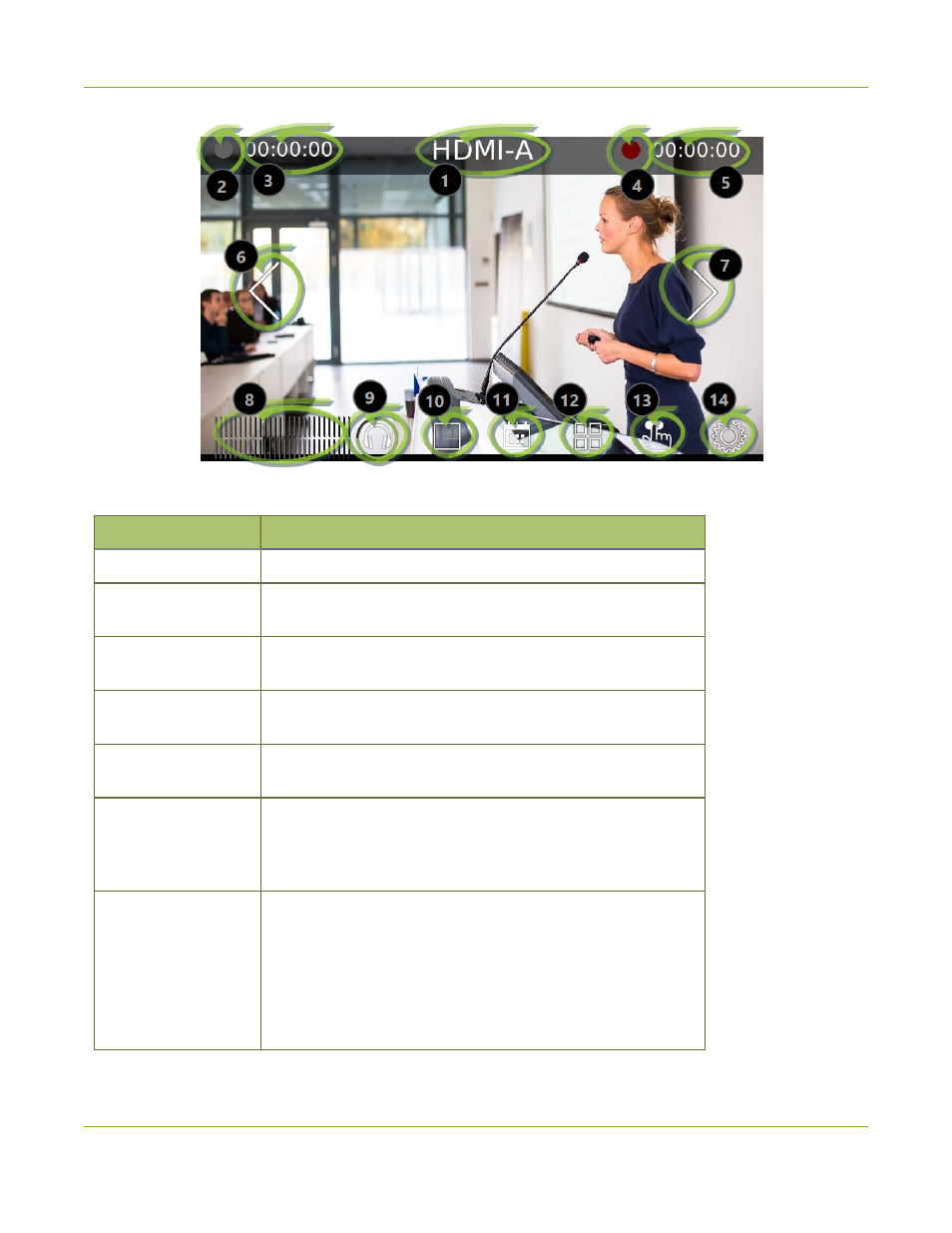

Pearl Mini User Guide The touchscreen channel view
Table 8 Parts of the touch screen for the individual channel view
Item Description
1 Channel name.
2
Streaming status. Gray means streaming is stopped, flashing
blue means streaming is in progress.
3
The streaming timer shows the length of time that streaming
has been in progress.
4
Recording status. Bright red and flashing means recording is in
progress.
5
The recording timer shows the length of time that recording has
been in progress.
6 and 7
Controls to switch between channels. Tap the arrow to view the
next (or previous) channel. The arrow icons fade when the
touch screen is idle (i.e. untouched) for several seconds. Tap
the touch screen and the icons reappear.
8
Audio VU meter uses quasi-peak ballistics with samples
averaged every 10 ms. The maximum average audio level in
each 100 ms period is displayed using colored bars.
l RED = 0 to -9 dBFS
l Yellow = -9 to -18 dBFS
l Green = -18 dBFS and lower
