Pearl Mini User Guide Channel layout examples

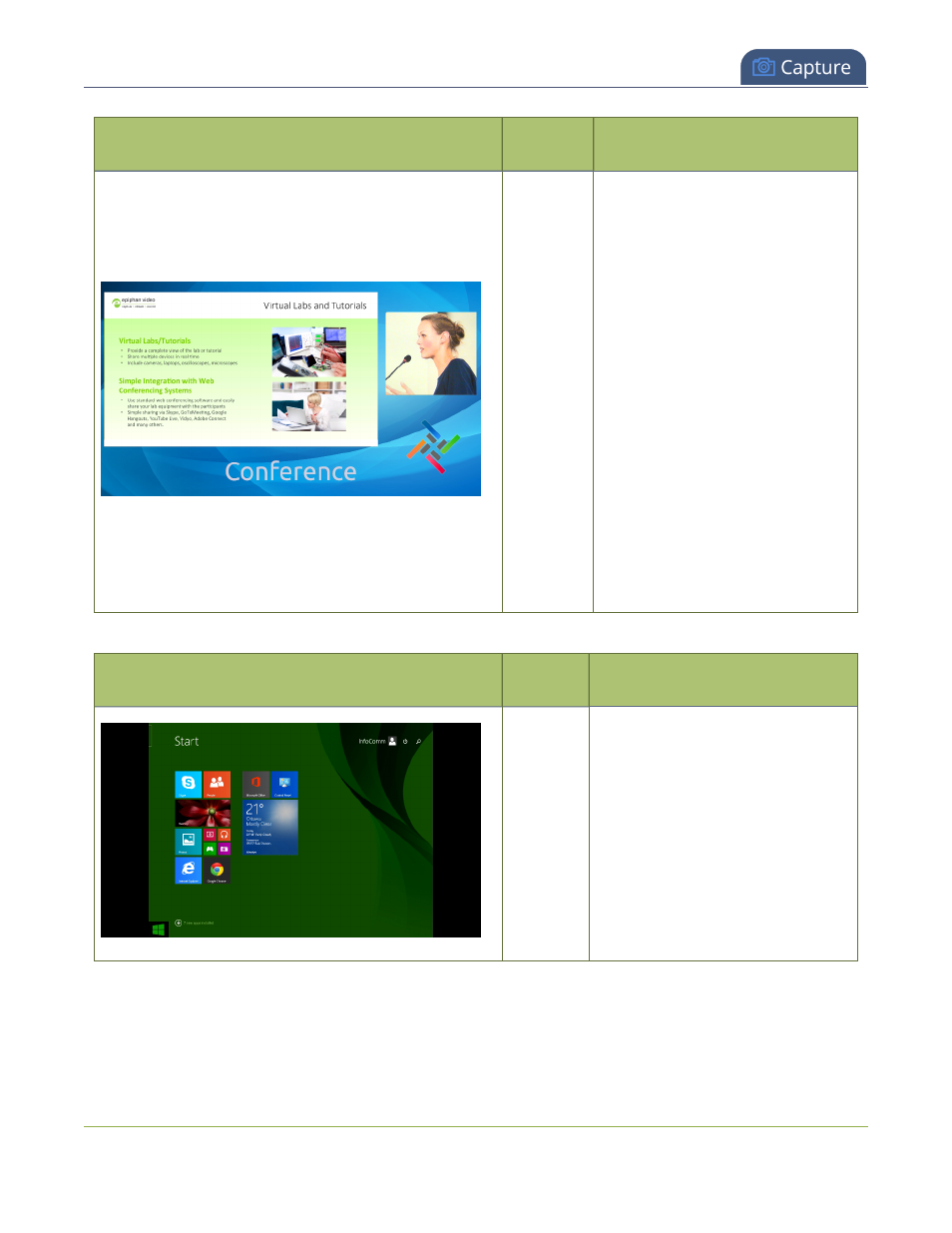

Layout example
Epiphan
products
Description
All
Two video sources (a slideshow and
a presenter cropped to a new aspect
ratio using the tool to
Crop a video
source ), a background image, and a
logo. Make sure the background
image has the correct aspect ratio.
To get this look: Upload your
background and logo images (you
can do this from the Media page or
the Layouts page for the channel).
Using the custom layout editor, add
the background image to the layout
and stretch it to fill the entire layout
area. Then add your two video
sources to the layout, adjusting their
size and position as needed. Lastly,
add the logo to the layout and move
it in to position. For the second video
source, use the Crop tool to crop the
second source to a square aspect
ratio.
Examples including a 4x3 video source.
Layout example
Pearl
Devices
Description
Pearl-2
and Pearl
Mini
One 4x3 video source at the full size
of the channel.
To get this look: Using the custom
layout editor, add one video source
to the layout, select keep aspect
ratio and stretch to fill the entire
layout area.
The channel broadcasts in 4x3 if you
have Use current signal resolution
as frame size selected on the
encoding page.
